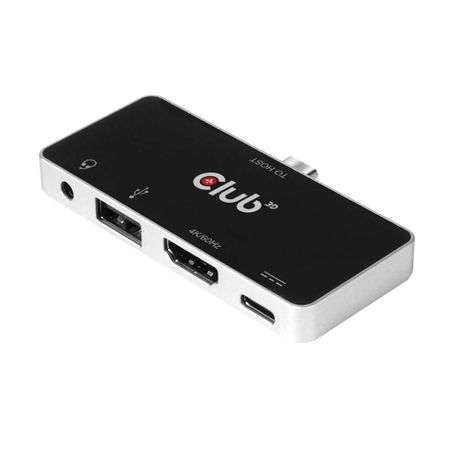

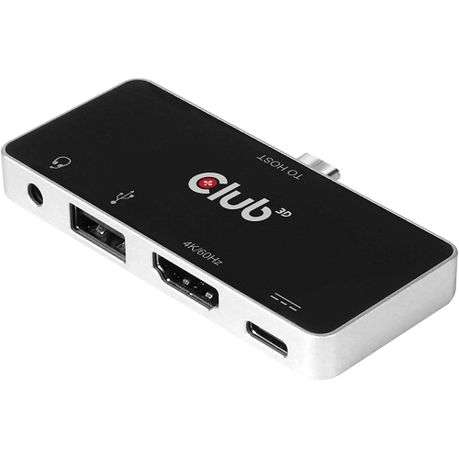

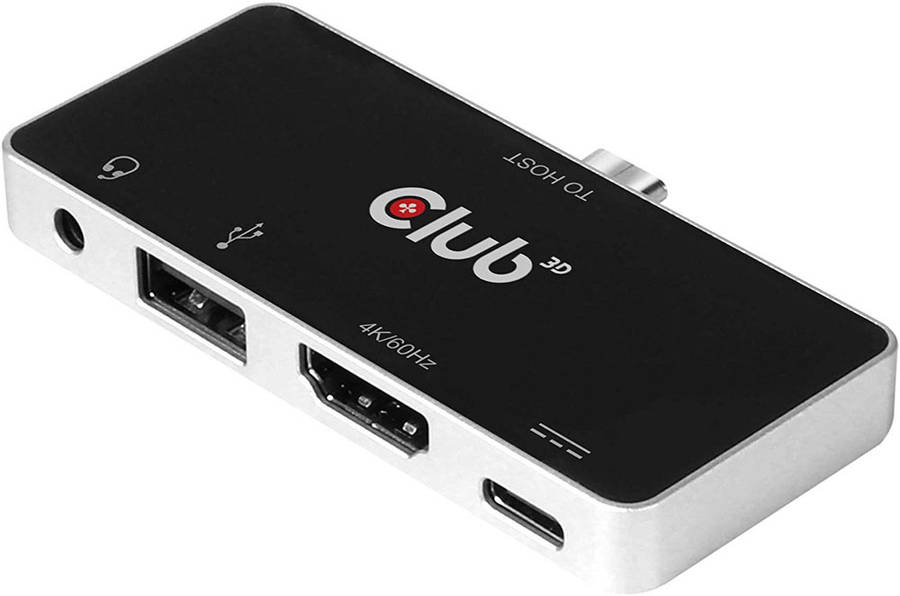

Club 3D Type-C 4-in-1 Hub to HDMI Docking Station

CSV-1591 - The Club 3D Hub is a 4-in-1 USB Type-C hub with HDMI, USB Type-A 2.0, 3.5mm audio and USB Type-C PD charging, the design perfectly suits all DP Alt-mode capable devices. With this hub, you can enjoy ultra high definition video of your host on big screen, enjoy fantastic music, transmit USB 2.0 data and connect USB Type-C PD Adapter to charge the host.

This hub can work on all USB Type-C and Thunderbolt 3 hosts that supports DP Alt mode. When working on Thunderbolt 3 host, this product transmits DP signal.

Features:
- Upstream:
1x USB Type-C Male (Connection to host) Support DP1.2 Alt mode, with bandwidth max 5.4 Gbps per lane, 4 lanes 21.6Gbps
- Downstream:
1x HDMI Female
Support HDMI max 4K/60Hz 4:4:4 8bit with 18Gbps Bandwidth
Support 6/8/10/12 bit color depth output
Support output pixel format RGB4:4:4/YCbCr4:4:4/YCbCr4:2:2
Support HDCP 2.2 & HDCP1.4
Support HDR
1x USB Type A 2.0, Max 480Mbps bandwidth
- Support BC 1.2 with max 7.5W(5V@1.5A) downstream charging
- 1x 3.5mm combo audio*
Support 48K/44.1KHz sampling rate Audio output
* Note: Audio can be output from HDMI or 3.5mm audio port, below explanation illustrates the priority of audio output when both HDMI and 3.5mm audio ports are connected.
- When source device is connected to this product prior to sink devices, audio outputs from the port that is connected last.
- When sink devices are connected prior to source device connection, audio outputs from 3.5mm audio port

Available Interfaces:
- Upstream:
- 1x USB Type C Male
- (Host connection)
- Downstream:
- 1x HDMI 4K60Hz Female for connecting to Monitor
- 1x USB type A, BC1.2 charging
- 1x USB Type-C Female, PD Charging only
- 1x.3.5mm combo audio

What's in the box
- CSV-1591, 4-in-1 Hub
- Quick Install Guide
