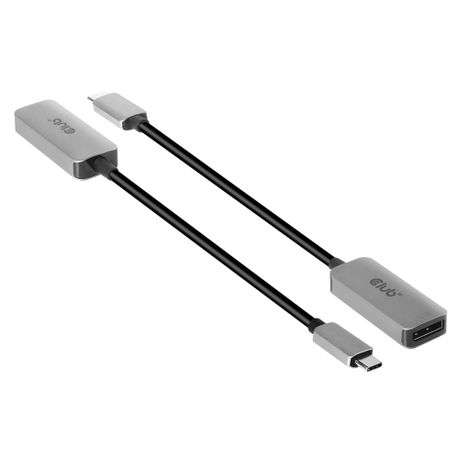

Club 3D Type-C to DisplayPort (8k@ 60hz) HBR3 Active Adapter

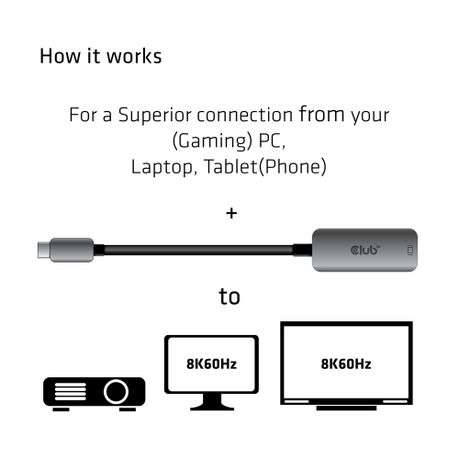

The CAC-1567 Club 3D USB Type C to DisplayPort 1.4 Adapter 8K60Hz provided the source supports DSC1.2 HBR3 allows you to connect any USB Type C source to DisplayPort display at max 8K60Hz resolution and HDR support.

It works on any USB Type C host that supports DP 1.4/DP 1.2 Alt mode, resolutions are limited to the source device. When working on Thun- derbolt 3 host, this product transmits DP signal.
The soft UltraFlex jacket protects the cable from bends and deforma- tion damage. The Cable is 34AWG and Uni-Directional.
Features:
- Supports USB Type C input and DisplayPort output
- Supports DisplayPort resolutions up to 7680x4320@60Hz HDR, provided the source supports DSC1.2 and DP Alt-Mode 1.4
- Supports DisplayPort 1.4/1.2 Alt mode
- Compliant to Thunderbolt 3 specifications
- Supports per lane data rates of 8.1Gbps(HBR3), 5.4Gbps (HBR2), 2.7Gbps (HBR) and 1.62Gbps (RBR)
- Support up to 48 bit (16bit per channel) deep color
- Supports content protection of HDCP1.4 & HDCP 2.2
- USB bus power (no external power supply)

Available Interfaces:
Input: USB Type C Male
Output: DisplayPort 1.4 Female

What's in the box
- CAC- 1567 USB Type C to DisplayPort 1.4 Adapter 8K60Hz DSC1.2 HBR3 22cm/8.66 inch, 34AWG
