Club3D Displayport 1.4 4K 120Hz Hbr3 Female To Female Active Repeater (Cac-1007)

Club3D DisplayPort 1.4 4K 120Hz HBR3 Female to Female Active Repeater (CAC-1007)

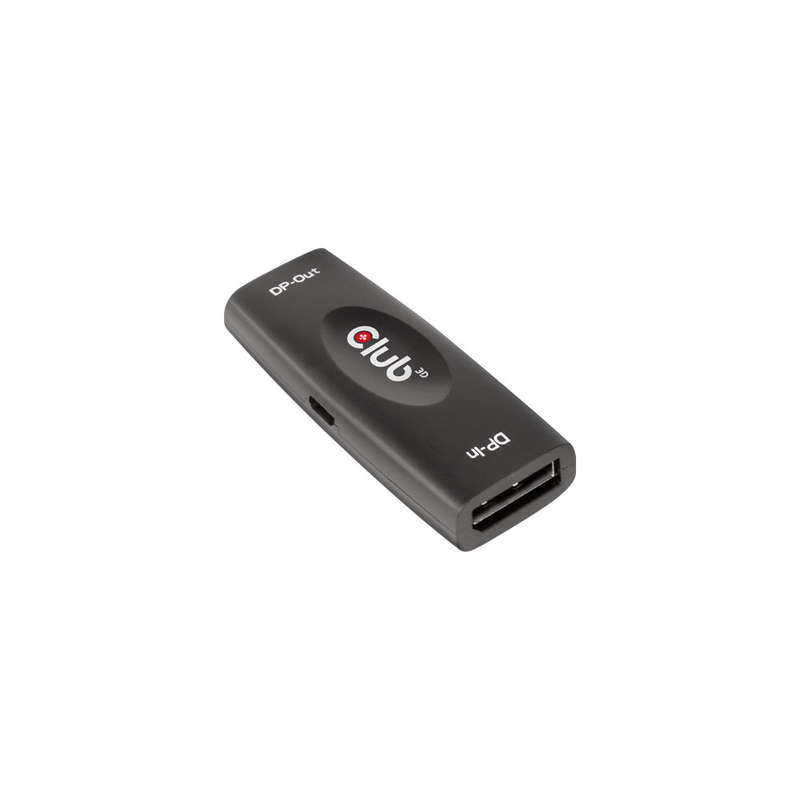

The Club3D CAC-1007 is a DisplayPort 1.4 active repeater, which provides a convenient method for users to extend DP signal from host PC to monitor or projector up to 20 meters/65.6 ft (10 meters/32.8 ft in and 10 meters/32.8 ft out) at max 4K120Hz resolution, for 28AWG or above cable.
The Adapter is powered thru an Micro USB to USB Type A cable(provided with the product).

Features:

• Support DP1.4 and downward compatible with lower versions
• Transmission speed 1.62 Gbps / 2.7 Gbps / 5.4Gbps / 8.1 Gbps
• Support DisplayPort 1.4 HBR3 with max video resolution 4K@120Hz.
• Extending Distance: max 20m/65.6ft (10m/32.8ft input, 10m/32.8ft output) for 28AWG or above cable,
• Support cascading function up to 3 levels

Note:
To achieve 8K transmission, the source and display should support DP1.4, the connected cable spec should be 28AWG or above DP1.4.
When using the cascading function to achieve longer distance, the max resolution/refresh will be decreased.
The repeater is not bidirectional, so make sure to connect the source to the input port and display to the output port.

Supported resolutions:
Support Max. resolution up to 4K@120Hz

Other info:

• Box size: 10 x 10 x 3.5 cm
• Adapter size: 6.6 x 2.5 x 1.3 cm
• USB (Power) Cable length approx.: 1 m
• USB Cable Weight: 28 gr
• Box Weight: 18 gr
• Adapter Weight 17 gr
• Total Weight 63 gr
• Meets ROHS, FCC, and CE EMI requirements
