Club3D Mini DisplayPort 1.4 to HDMI 2.0b HDR Active Adapter (CAC-1180)

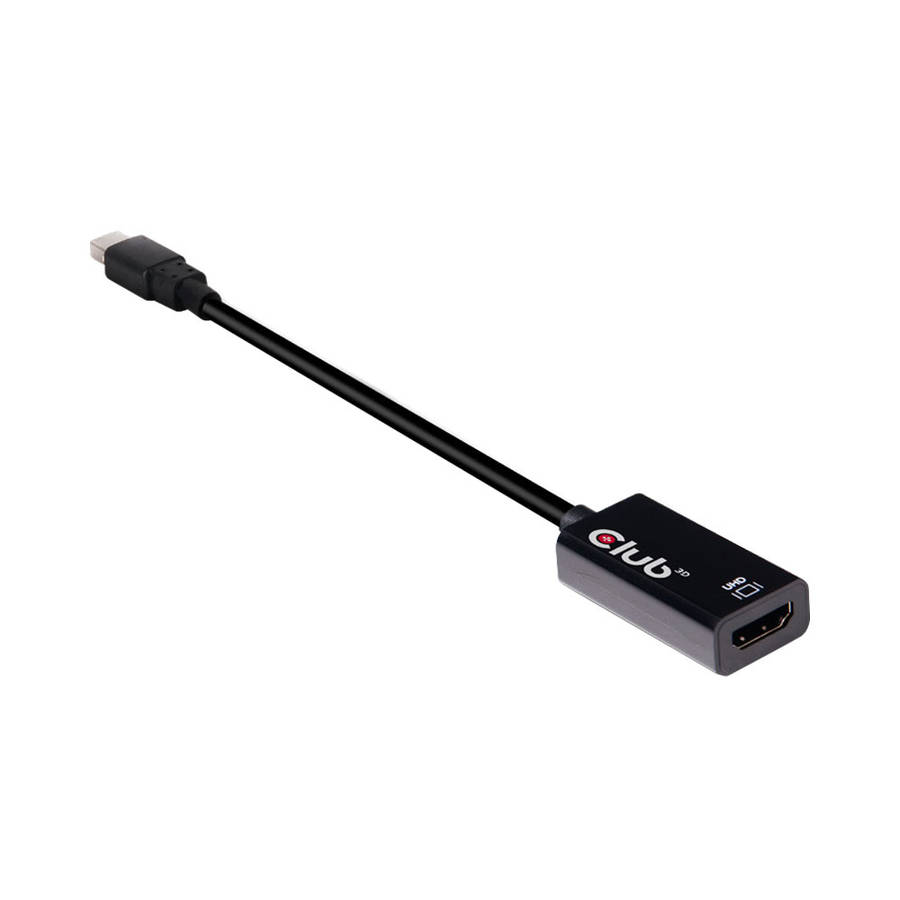

The Club3D CAC-1180 is a Mini DisplayPort 1.4 to HDMI 2.0b signal converter. It features support for HDR Video quality for deep color media content playback. The Mini DisplayPort receiver supports up to 5,4 Gbps per lane over 4 lanes. The HDMI output is fully compliant to HDMI specification version 2.0b.Supports up to 4K UHD Resolutions. The CAC-1180 supports UHD resolutions up to 4096 x 2160p at 60Hz.
Color Formats
It supports RGB/YCbCr video color formats with a color depth of 16bpc (or 48 bits per pixel) as long as it fits within the Mini DisplayPort and HDMI link bandwidth. The CAC-1180 also supports pixel encoding conversion from RGB or YCbCr 4:2:2 to YCbCr 4:2:0 and YCbCr 4:2:0 pass-trough function. In addition HDR with deep color up to 12Bpc at 4K 60Hz is supported through the conversion of RGB/YCbCr 4:2:2 over DP link to YCbCr 4:2:0 on the HDMI output with a horizontal expansion to CEA timings.
Note: For HDR to function, the source system needs to support DisplayPort 1.4 and the screen needs to have support for HDR and / or HDMI 2.0 a or b.
OS Support:
Windows 10, 8.1,
Apple OS X
Input:
Mini DisplayPort 1.4 male
Output:
HDMI 2.0b female
Other info:
Box size: 182 x 60 x 35mm.
Cable: 168.6 x 20 x 11 mm.
Weight: 30 gr.
Meets ROHS, FCC, and CE EMI requirements
Features:
DisplayPort 1.4 Receiver, up to 5.4Gbps link Rate, HBR2/HBR/RBR
Video Stream Handling
- Up to 600Mhz dual pixel path and 16bpc
- RGB/YCbCr 4:2:2/4:2:0 pixel format
- Horizontal expansion of Vesa CVT to CEA Timings (as per DP 1.4 spec)
DisplayPort to HDMI Stereoscopic 3D Transport
- Frame Sequential to Stacked Top-Bottom Conversion
- Pass-trough of ther 3D Formats
Audio Stream Handling
- LPCM and compressed Audio encoding formats
- Max audio sample rate of 192 Khz x 8 Channel or 768 KHz x 2 Channel
HDCP Support
- HDCP 1.3 to HDCP 1.4 Repeater function
- HDCP 2.2 to HDCP 1.4 and 2.2 Repeater Fucntion
HDMI transmitter
- Compliant to HDMI specifications version 2.0b
- 600MHz max TMDS character clock
- High Daynamic Range (HDR) support both Static- and Dynamic HDR.
- CEC Support - snooping, tunneling
Max Video resolution and color depth on HDMI output
- 4K 60Hz YCbCr 4:2:2, up to 12bpc
- 4K 60Hz YCbCr 4:2:0, up to 12bpc
- 4K 30Hz RGB/YCbCr 4:2:2, up to 12bpc
