Club3D Type-C 3.2 Gen1 Pd 100W Triple Display Universal Port Replicator (Csv-1564W100)

Club3D Type-C 3.2 Gen1 PD 100W Triple Display Universal Port Replicator (CSV-1564W100)

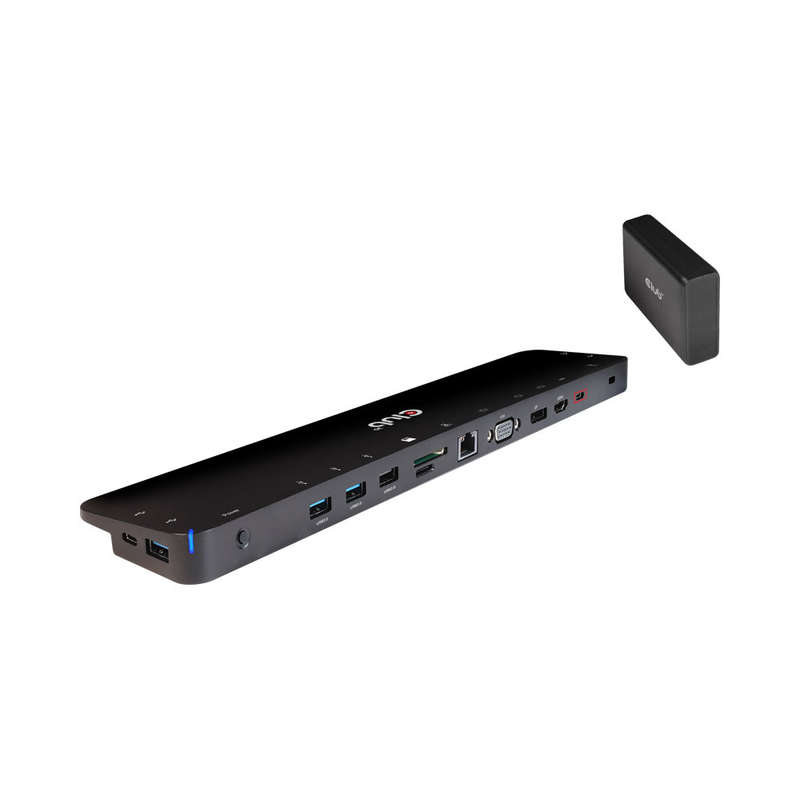

The Club3D USB3.2 Gen1 Type-C Triple Display Dynamic PD Charging Dock is an integrated solution combining Video, Data, Power, Ethernet and Audio especially for frequent travelers. The Three different Video ports(HDMI, DisplayPort and VGA) allow you to enjoy 3 different images or videos on 3 different displays simultaneously under MST mode. The USB Type-A ports and USB Type-C data port allow you to connect multiple USB devices to the host. The USB Type-C charging port allows you to provide power for the dock and can charge the host PC at the same time by connecting a PD power adapter - no need to carry your notebooks power supply.

The Micro SD and SD/MMC ports allow you to read information in the memory card onto the host. The 3.5mm audio port allows enjoying music of the host via a headset. Besides, with the Gigabit Ethernet port, you can enjoy high speed Ethernet on the host. It supports all DP Alt mode supported hosts. (PC, laptop, mobile phone, etc.) Dynamic Current Detection and Power Distribution, the product no longer intercepts the fixed power from the external PD Power Supply, but intercepts it according to the actual power consumed by itself, so that the PC can be dynamically charged more power.

FEATURES:

• Supports DP Alt Mode and PD3.0
• Supports max. 5Gbps data transmission on the USB3.2 Gen1 Type-C ports
• One USB3.2 Gen1 Type-C Data port
• One USB3.2 Gen1 Type-C port supports PD charging with max. 100W (20V/5A) Bundled with 100W Power Supply (for Notebooks with current consumption up to 100W)
• HDMI max. 4K @30Hz
• DisplayPort max. 4K @30Hz
• VGA max. 1920 x 1200 @60Hz
• Triple Display support
• SST mode on MAC OS
• MST mode on Windows
• One port IEEE 802.3 Ethernet support for up to 1000BASE-TX
• SD and Micro SD slots work simultaneously
• Audio port (stereo), supports both mic and headphone
