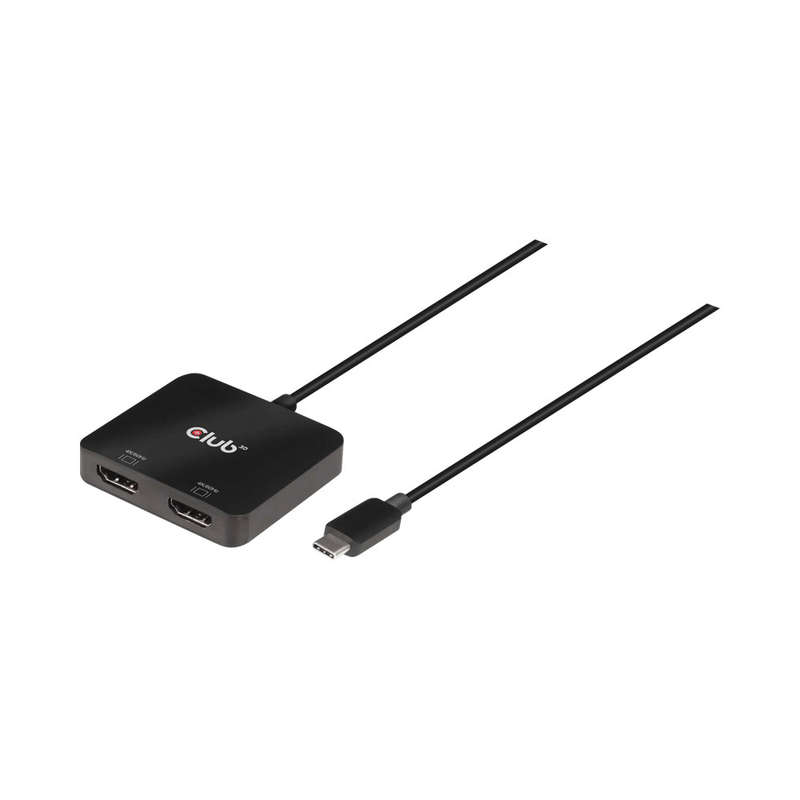

Club3D Type-C Mst Hub To Dual Hdmi 4K 60Hz (Csv-1556)

Club3D Type-C Mst Hub to Dual HDMI 4K @60Hz (CSV-1556)

The Club3D CSV-1556 is a Type-C MST Hub that works from any DP1.4 Alternate mode device to two HDMI 4K @60Hz displays. It allows to extend a type-C port of the host to 2 HDMI displays with ultra high definition max. 4K @60Hz for each display simultaneously. Supporting MST function, dual displays can be showed with different video contents simultaneously. It can work on all DP Alt mode supported Type-C/Thunderbolt PC.

• Supports DP1.4 Alt mode with max 8.1Gbps per lane, 32.4Gbps 4 lanes
• Supports output to dual 4K @60Hz with different pictures under MST mode when working on Windows System
• Note: to achieve dual max 4K @60Hz, the host should support DP1.4 Alt mode, when working on DP1.2 host, dual max. 4K @30Hz due to bandwidth limitation
• Supports output to dual 4K @60Hz with the same picture under SST mode when working on Mac OS System
• Supports 8/10/12 bit colour depth output
• Supports output pixel format RGB4:4:4 / YCbCr4:4:4 / YCbCr4:2:2 / YCbCr4:2:0
• Supports HDCP2.2 and 1.4
