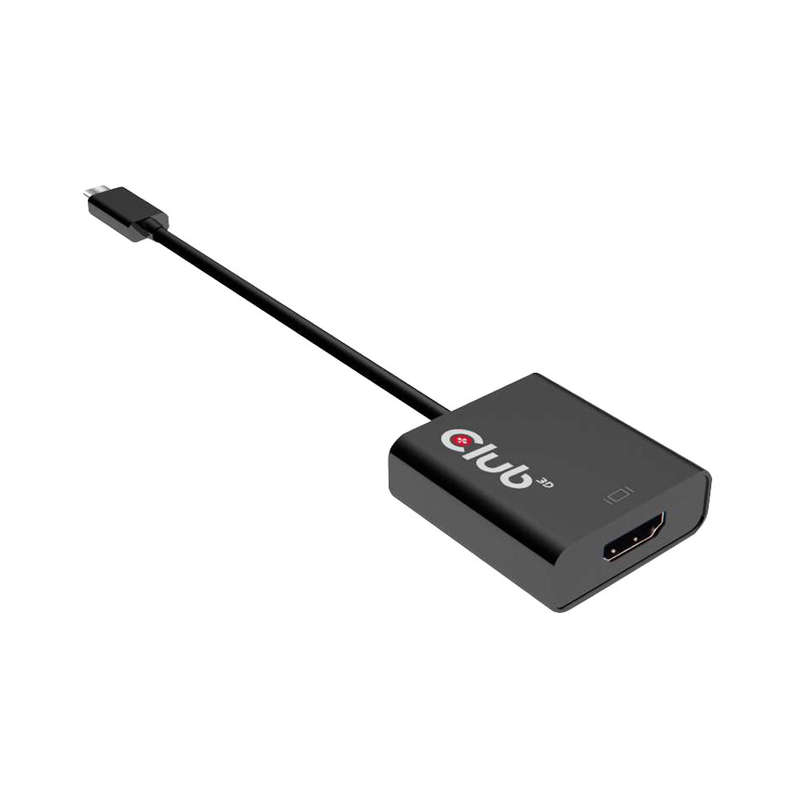

Club3D USB Type-C 3.1 to HDMI 2.0 UHD Active Adapter (CAC-2504)
The Club3D CAC-2504 is an Active HDMI signal converter. The USB 3.1 Type C to HDMI 2.0 UHD 4K 60Hz HDR Active Adapter is the easiest solution for connecting your USB 3.1 Type C source device featuring DisplayPort 1.4 Alternate Mode to an HDMI 2.0 enabled UHD Monitor, Television or Projector. It features support for HDR Video quality for deep color media content playback. The DisplayPort receiver supports up to 5,4 Gbps per lane over 4 lanes.
Supports up to 4K UHD Resolution at 60Hz
The USB 3.1 Type C to HDMI 2.0 UHD 4K 60Hz Active Adapter supports UHD resolutions of up to 4K @ 60Hz for a clear, sharp picture. The support for 60 frames per second provides exceptionally smooth video. Use the adapter to play games, view video or browse the internet from your USB 3.1 Type-C enabled source system on a (Ultra) high-resolution monitor or TV. Supporting up to 8 channels of audio, the adapter provides high-definition digital audio and video.
Compatible with all Operating Systems
The USB 3.1 Type C to HDMI 2.0 UHD 4K 60Hz HDR Active Adapter supports all USB 3.1 Type-C source systems with DisplayPort Alternate Mode and operating systems, including Apple OS X, Windows 8.1 and 10 and Google Chrome OS.
Please refer to your device's user manual to confirm the specification and functionality of the USB-C port.
Features:
Reversible USB Type C Connector
DisplayPort 1.4 Receiver, up to 5.4Gbps link Rate, HBR2/HBR/RBR
Video Stream Handling
- Up to 600Mhz dual pixel path and 16bpc
- RGB/YCbCr 4:2:2/4:2:0 pixel format
- Horizontal expansion of Vesa CVT to CEA Timings (as per DP 1.4 spec)
DisplayPort to HDMI Stereoscopic 3D Transport
- Frame Sequential to Stacked Top-Bottom Conversion
- Pass-trough of ther 3D Formats
Audio Stream Handling
- LPCM and compressed Audio encoding formats
- Max audio sample rate of 192 Khz x 8 Channel or 768 KHz x 2 Channel
HDCP Support
- HDCP 1.3 to HDCP 1.4 repeater function
- HDCP 2.2 to HDCP 1.4 and 2.2 repeater function
HDMI transmitter
- Compliant to HDMI specifications version 2.0 b
- 600MHz max TMDS character clock
- High Daynamic Range (HDR) support both Static- and Dynamic HDR.
- CEC Support - snooping, tunneling
Max Video resolution and color depth on HDMI output
- 4K 60Hz YCbCr 4:2:2, up to 12bpc
- 4K 60Hz YCbCr 4:2:0, up to 12bpc
- 4K 30Hz RGB/YCbCr 4:2:2, up to 12bpc
Note: For HDR to function, the source system needs to support DisplayPort 1.4
Alternade Mode and the screen needs to have support for HDR and/or HDMI 2.0 a or b.
Input:
USB type C male
Output:
HDMI 2.0 female
OS Support:
Windows 8.1, 10, Apple OS X
Other info:
Poly Bag size: 215 x 150 x 18 mm.
Poly Bag Weight: 10 gr.
Product Weight: 21 gr.
Total Weight: 31 gr.
Adapter size: 180 x 37 x 15 mm.
Meets ROHS, FCC, and CE EMI requirements
