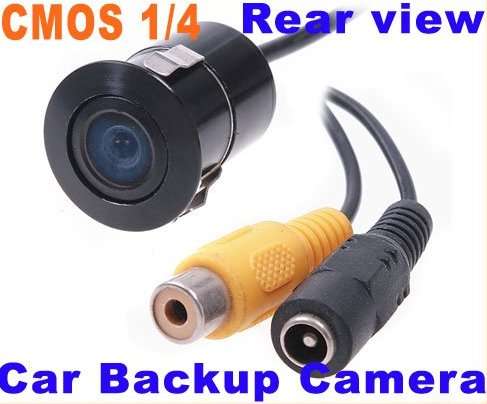

CMOS 1/4 car rear view camera

PLEASE READ SHIPPING INFO BEFORE BIDDING OR BUYING.

CMOS 1/4 car rear view camera 150 degrees view angle

Features:
Anti fog glass.
CMOS imaging sensor.
Support NTSC video system.
High grade of waterproofing: IP66.
High-definition and 150 degree wide viewing angle.
Applicable to variety of vehicles: car, truck, RV, etc.
Snap-in design, it is easy to install.
Its simple and modest design and small size won't draw any attention.
It helps to avoid incidents and accidents abrasion well.

Specification:
Image Sensor: CMOS 1/4 MT9V125 or PC1030, colour
TV system: NTSC
Horizontal Resolution: 420 TV lines
Effective Pixels: PAL:628(H) * 582(V) NTSC:510(H) * 492(V)
Minimum Illumination: 0.5 Lux
Lens: 13.5mm
View Angle: 150 degree
Sync. System: internal
S/N Ratio: >48dB
Electronic Shutter: 1/50 to 1/100,000 seconds, 1/60 to 1/100,000 seconds
Video Output: 1.0Vpp, 75Ohm
White Balance: Auto
Power: DC 12V
Current Consumption: 90mA
Operating Temperature: -20 to + 70°C, 95% RH maximum
Storage Temperature: -40 to + 100°C, 95% RH maximum
Water-proof: IP66
Image Reverse: Left-right mirror
Video Cable Length: 6m
Power Supply Cable Length: 1.5m
Camera size: 2.2 * 2.8cm
Camera Weight: 34g
Package size: 16.4 * 10  * 5cm
Package weight: 214g

Installation:
Connect the yellow video output connector to terminal display device.
Connect the black power input connector to power output device.

Package Included:
1 * Car Rear View Camera
1 * Video Cable
1 * Power Cable
1 * Hole Saw
