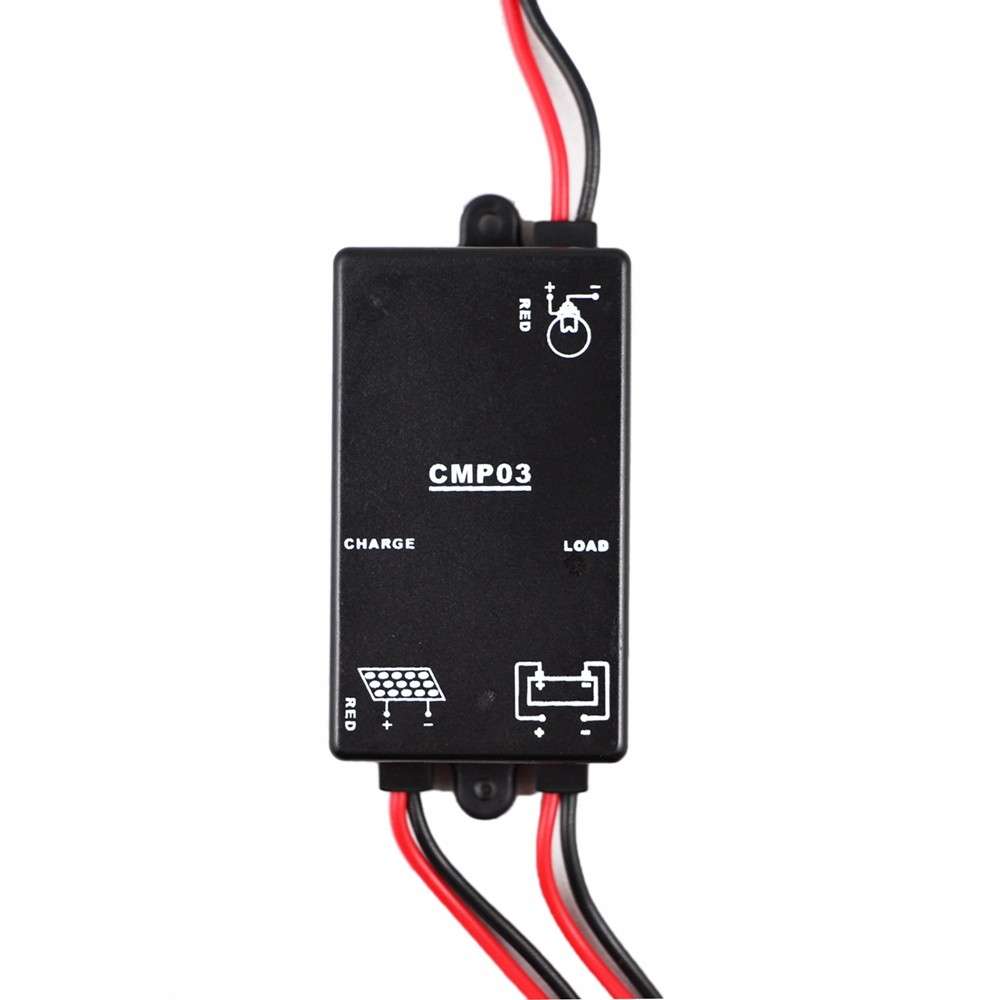

CMP03 3A-6V Load on 24hours Battery Charge Regulator Charge and Discharge Solar Charge Controller
New
Indicative market price: R342.24
R171.12
50% OFF
Closed
27 Nov 16 09:50
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 3 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Buyer Protection
How you're covered
Get it now, pay later
Product information
Condition:
New
Location:
South Africa
Customer ratings:
Product code:
1052885
Bob Shop ID:
251708318
Description:
CMP03 3A-6V Load on 24hours PV Battery Charge Regulator Charge and Discharge Mini Solar Charge Controller for Solar Power System
This solar charge controller designed for solar home system, Mini solar advertising light box and so on. The box of the controller is compact sealed with silicon. They have the function of Temperature Compensation during charging and Sensor Control (optional).
Notice: There is no light and timer control function,it`s just a charge and discharge controller.
Specification:
Model: CMP-03
Rated Voltage: DC6V
Max Current: 3A
voltage of solar panels: 18W(3A,6v)
Charge-stop Voltage: 7.2V
Coefficient of Stop Voltage and Temp: -3mV/°C/cell
Supply-stop Voltage: 5.3V
Supply-resume Voltage: 6V
Light Control Mode: Visibility 20M
Working Temp: -10°C - +40°C;
Weight: 33g
Notice: Sensor Control if customer need it.

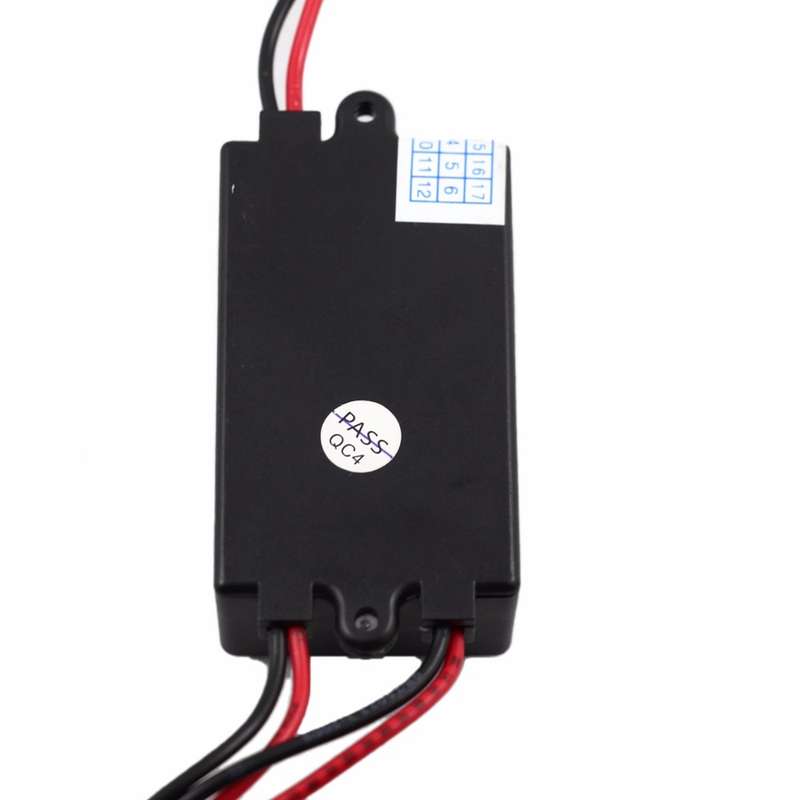

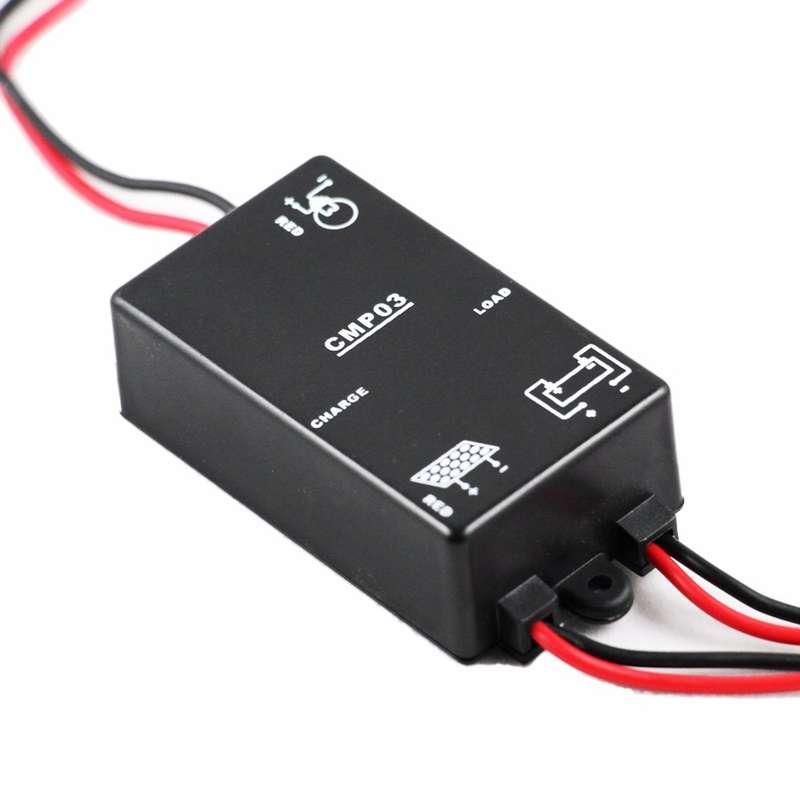

Details pictures:
Function:
1. Overcharging and Over discharging protection.
2. Prevent the reverse current from the battery to the solar panel at night time.
Indicator:
1. One charging indicator, light indicates strong charging, flash indicates float charging, not light indicates stop charging.
2. One Load indicator, light indicates there is power output, the loads could normal working, not light indicates no output, check whether the battery is in low-voltage or the connection is OK .
Attention:
1.Please check the rated voltage of the solar panel and loads,they must be same with controller,all their rated voltage should be 6V or 12V.
2.The controller can not short circuit.
3.Forbid use other DC power supply instead of solar panels for the battery charging through the controller.
Package included:
1 x 3A 6V Solar Charge Controller
Details pictures:
