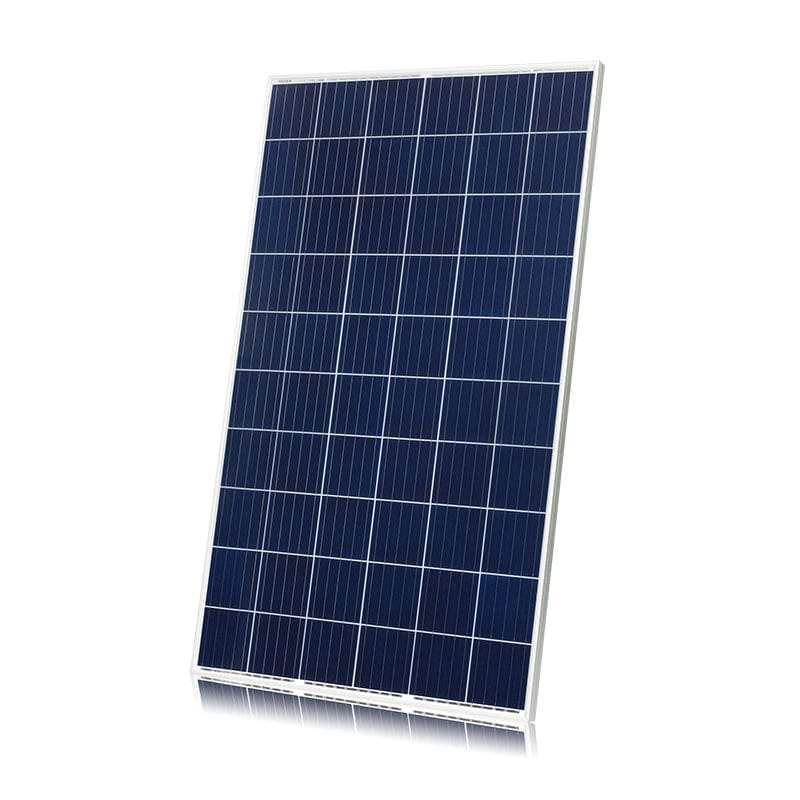

The CNBM 6P-330W Polycrystalline Silicon Solar Panel is a reliable and efficient solar module designed to provide consistent energy production for various applications. With its robust construction and advanced technology, this panel is suitable for residential, commercial, and industrial solar installations.
Feature | Description |
---|---|
Maximum Power (Pmax) | 330W |
Module Efficiency (%) | Up to 17.5% |
Cell Type | Polycrystalline Silicon |
Operating Temperature (°C) | -40°C to +85°C |
Maximum System Voltage | 1000VDC (IEC) |
Short-circuit Current (Isc) | 9.5A |
Open-circuit Voltage (Voc) | 44.5V |
Maximum Power Voltage (Vmp) | 37.5V |
Maximum Power Current (Imp) | 8.8A |
Specification | Details |
---|---|
Model | CNBM 6P-330W Polycrystalline Solar Panel |
Dimensions (L x W x H) | Approx. 1650 x 992 x 40 mm |
Weight | Approx. 20 kg |
PID Resistance | Excellent Anti-PID performance |
Durability | Designed to withstand harsh weather conditions |
