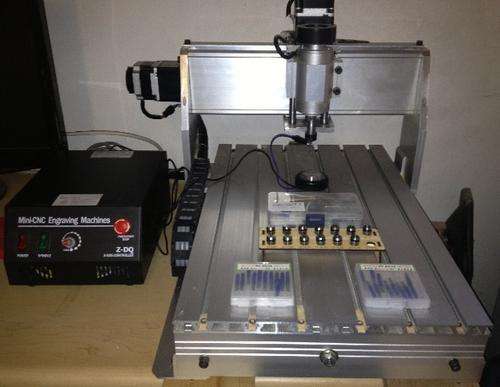

This Engraver is a user-friendly desktop engraving machine for those with limited space and /or a limited budget. The Computerized CNC Engraving and Cutting Machine is suitable for various materials, such as WOOD, PMMA or other plastic,MDF board,native wood,PVC,Acrylic, wood,composite board plywood,It can be used widely to process or make advertising signs,PC Boards ,nameplates,badges,seals,bronzing plate,aluminium alloy,acrylic plates,ABS resin double color plate,PVC foaming board,indentation plates,signs,construction models,instrument panels,wooden products,etc.
Specification
X,Y,Z Working Area: 390×280×55mm
Max. Feeding height: ≤70mm
Outside dimension: 615×485×390mm
Table size: 525×320mm
Machine structure: 6061/6063 Aluminium alloy
Stepper motor: two-phase 57/1.8A

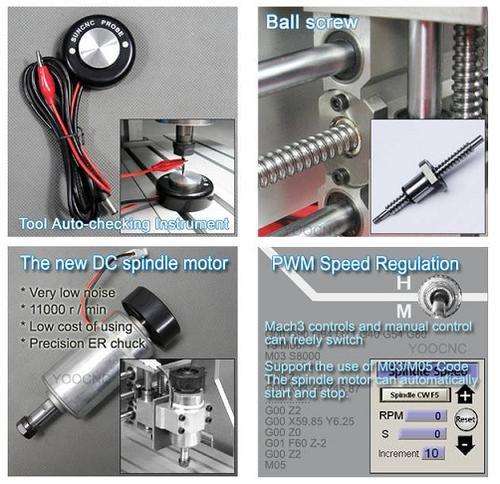

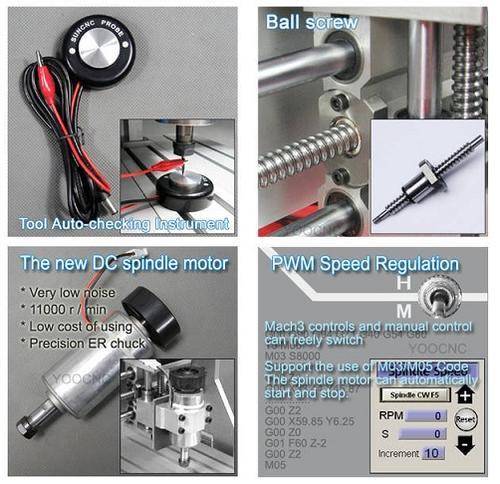

Drive unit: ball screw
Sliding unit:: Chromeplate shaft
Maximum speed: 4000mm/min
Engraving speed: 300-3000mm/min
Repeat positioning Accuracy: 0.05mm
Spindle motor: 230W DC spindle motor
Spindle speed: 11000RPM/MIN

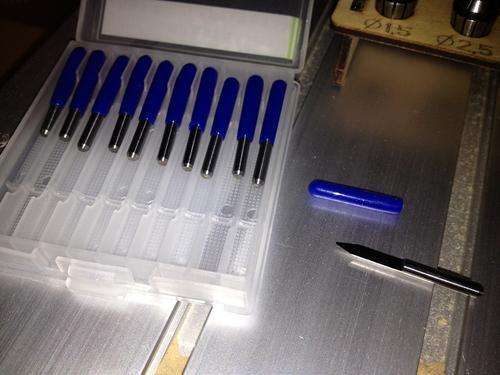

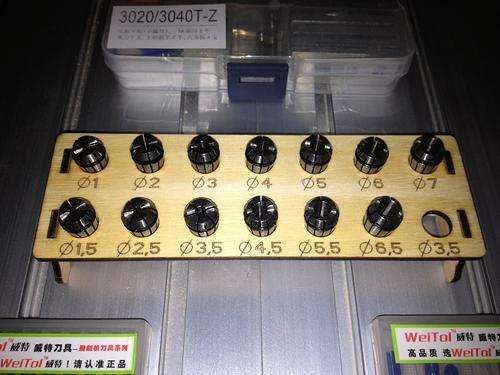

Cutting tool-holder: ER11/3.175mm

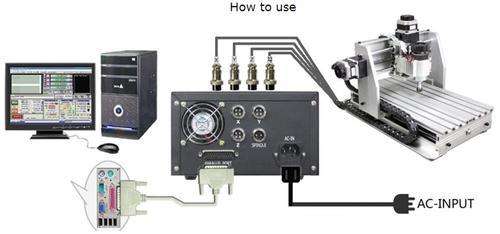

Interface:Parallel port
Software Compatability:Mach3/Emc2,
Command code: G code/.nc/.ncc/.tab/.txt
Machine weight: 28kg(including packaging)
