Product Description

This is the newest 2017 EleksMaker DIY laser engraving machine. It has 30X38cm ultra large engraving area and no engraving height limitation. Three stepper motor drives providing faster moving speed. The 2500mw can be selected with power adjustable and heatsink, allowing long life span. PWM control ideal for amateur laser engraving usage low-light positioning and freedom positioning functions. It only requires you to connect it to the computer, then you can print any pictures your like with lots of fun. Once you own it, you create various laser engraving crafts by yourself, so exciting! We provide all instructions and software, It is easy to setup and start using.

Product Features

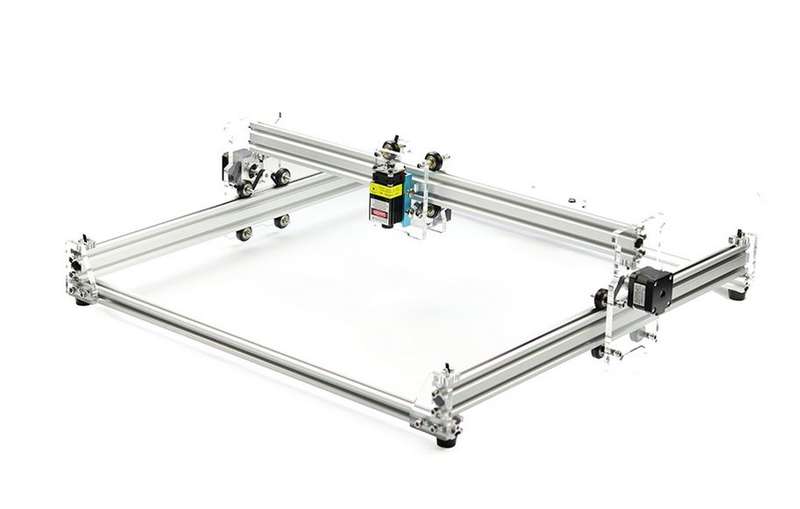

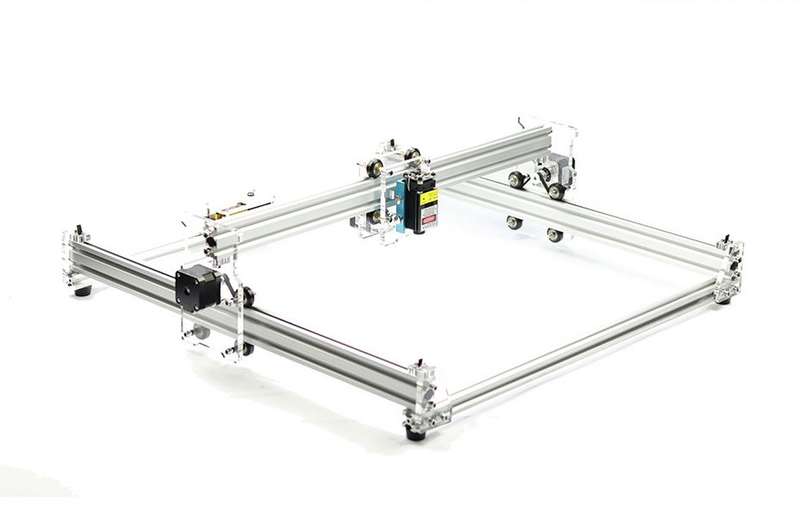

• EleksMaker A3 Pro DIY desktop laser engraver, printer and cutter machine

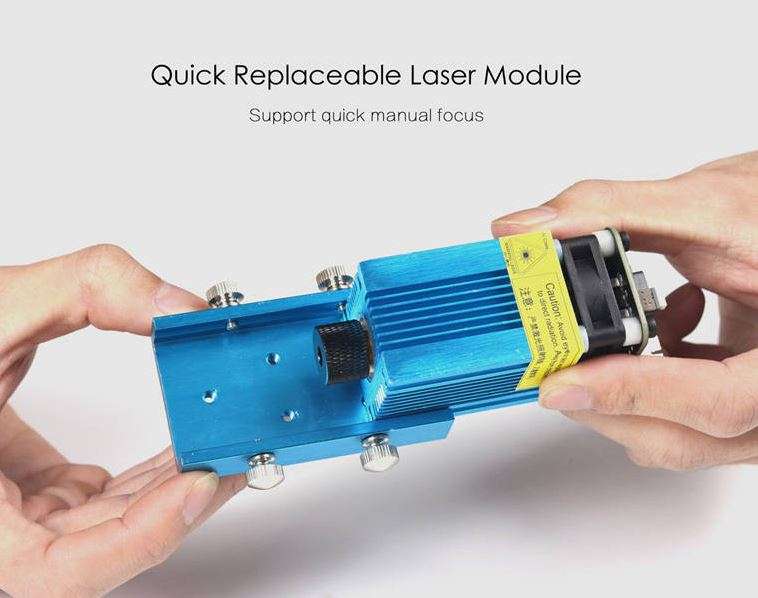

• 2500mw laser module can be selected with and can work continuously 1-2 hours and longer

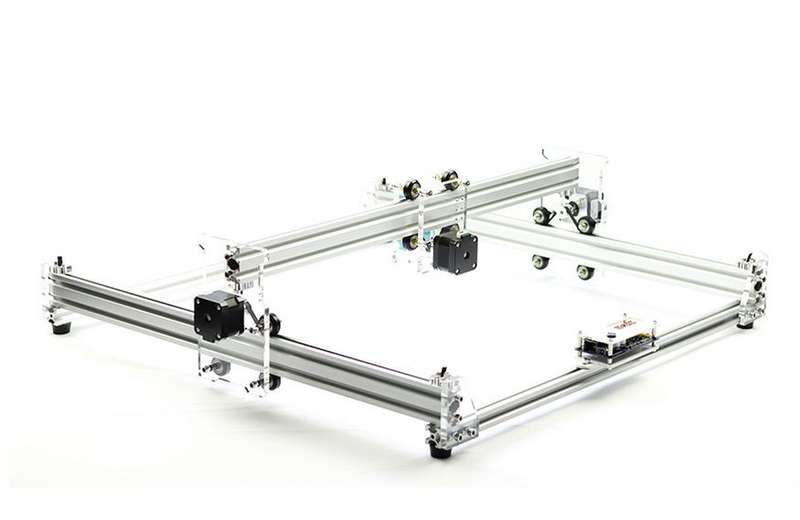

• Three 42mm stepper motor power drive, faster moving speed and quiet, It can work in home or office as it does not make a noise
• Gantry shape design, no engraving height limitation,just put the machine on the items then engrave, fit for various working places
• Low-light positioning function, PWM control the laser power output to ensure better engraving performance
• Greyscale engraving function, you can do fantastic picture engraving crafts with this mini laser engraver

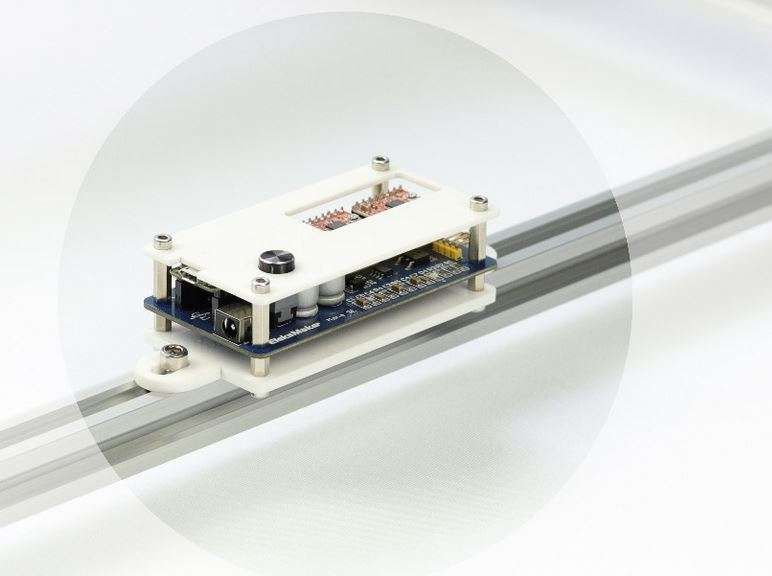

• Equipped with the power switch in the controller board, easy to control the machine work on or off

Please note:

• It can engrave material: wood, bamboo, plastic, paper, leather, rubber, acrylic, MDF, and much more!
• It can cut mater: thin paper, thin EPE foam
• It cannot engrave material: metal, glass, shell, ceramics, jade and jewelry

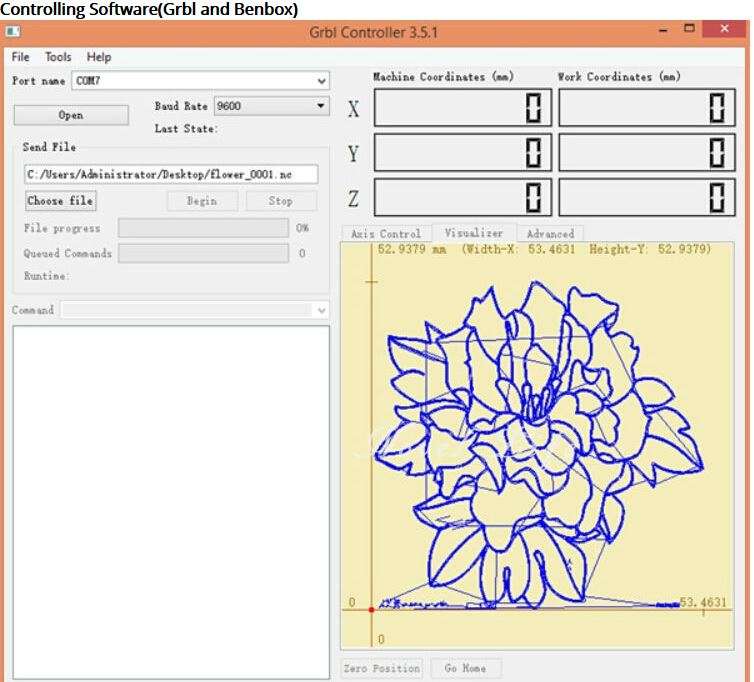

• Its control software is Grbl and benbox, We provide the all software and instructions upon purchase
• Please wear laser goggles during usage and avoid touching the laser directly with your eyes and skin!

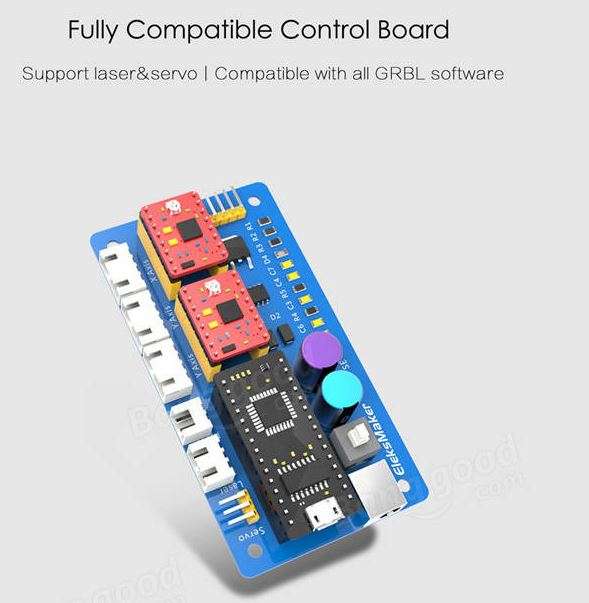

• The red cord is DC12v(+),black cord is GND(-), yellow cord is signal(S). Please make sure you know the wire position and connect to the ManaSE and Arduino Nano board correctly!
• Should you require any assistance please feel free to ask our customer service for a help.
• If your laser module has any problem, please DO NOT dismantle it without our permission. It will destroy the laser module. Contact us and we can assist.
• Supported Software: EleksCam,T2-Laser, Benbox, GrblController, LiteFire, Laser GRBL, etc.
• Supported Image Format: jpg, bmp, svg, G-code
• Supported Engrave Mode: Photo, Word, Scan, Outline, Pixel Laser Engraving
• Windows OS: Windows XP, 7, 8, 10

Product Specs:

• Type:CNC Desktop laser engraver
• Laser Power:2500mW
• Laser Wavelength:405nm/450nm
• Power Supply:DC12V 5A
• Engraving Area:30X38cm/12X15inch

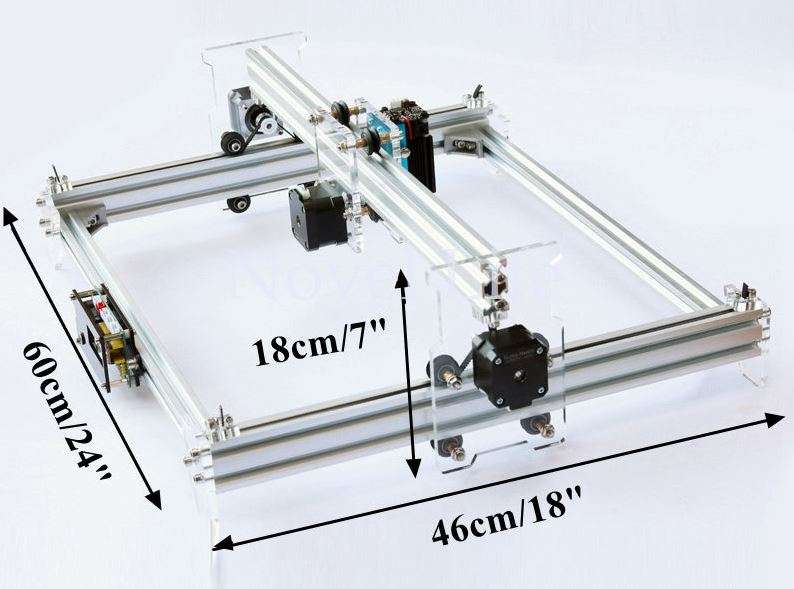

• Machine Size(assembled):60x46x18cm / 23.62x18.11x7.09inch (L*W*H)
• Net Weight:5.2kg

Product Package Contents:

• _{1X DIY Desktop Laser Engraver Assemble Kit}
• _{1X Laser Goggles}
• _{1X Hex Wrench Set}
• _{2X Test Wooden Board}

^{Please confirm Availability.}

How to Setup?

CNC Laser Engraver Overview and Install
