Product details

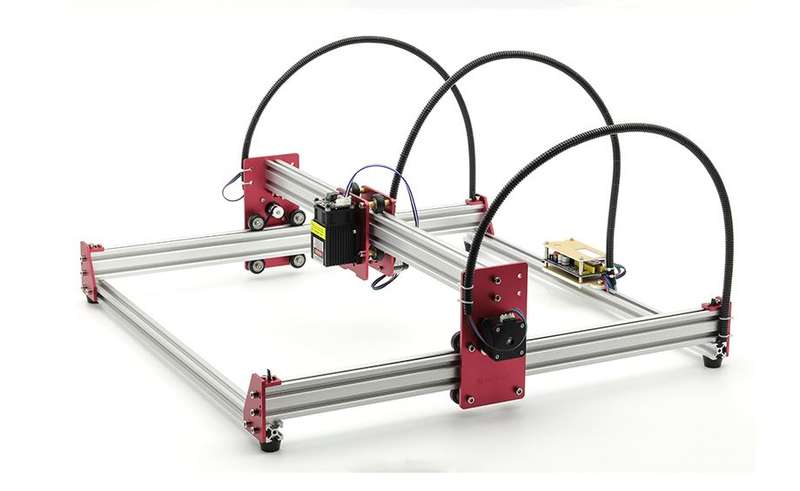

CNC Laser Engraver Cutter Machine + 5500mw Fixed Focus Laser
Product Description
This is the popular CNC Laser Engraver Machine that comes with a 5500mw fixed focus laser module. This Laser Machine is easy to assemble and comes with an easy to use software to start engraving! It has a 4mm aluminium alloy plate CNC finishing, plate accuracy over 0.1mm. It has a variety of mounting holes designed to provide more expansion possibilities. It supports multiple software like Benbox, GRBL, ELEKSCAM.
Materials that will work for Engraving, But not limited to:
- Wood
- Plywood
- Soft Materials
- Bamboo
- Transparent Acrylic
- Marble ( Surface area )
- Stainless Steel ( Surface area )
- Anodized Aluminium
Product Specs:
- Model Number:LM5500Pro
- Laser Power: 5500mW
- Laser Wavelength: 455Nm

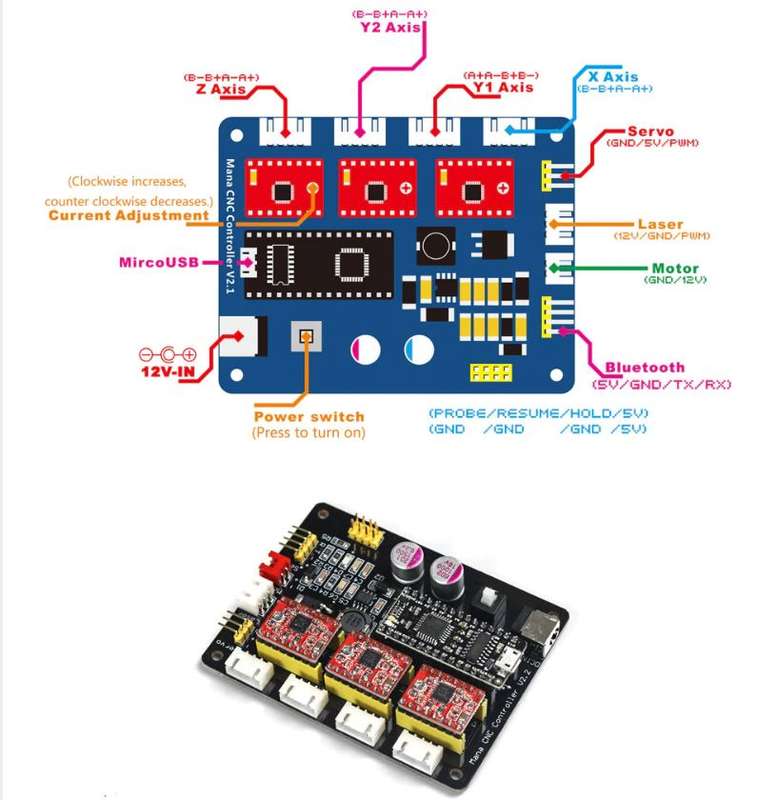

- Control Board: EleksMana SE
- Communication Port: MicroUSB
- Focus: Fixed Focus
- Working Area: 450mm X 450mm
- Engraved Object Height limitatiion: No Limitation
- Engrave Mode: Photo, Word, Scan, outline, Pixel Laser Engraving
- Supported Formats: jpg, bmp, svg, G-code
- Software: Eleks CAM,Benbox, GRBL
- Stepper Motor: 17HS1352-P4130
- Frame Materials 1: 3D printer custom aluminum profiles
- Machine Size: 63cm X 63cm X 17cm
- Power Input: AC100-240V
- Working Voltage: DC 12V
- Power Adaptor: 110V-230V, 12V DC 5A
- Machine Weight: 6.5Kg
Laser module with heatsink, high laser engraving power and long working hours, It can print any pictures easily.
Please note below:
1. Please wear laser goggles during usage and avoid touching the laser directly with your eyes and skin!
2. The red cord is DC12v(+),black cord is GND(-), yellow cord is signal(S). Please make sure you know the wire position and connect to the ManaSE board correctly, contact us for wiring diagram.
3. The laser module can not be used continuously for more than 45 minutes at a time. If there are any other quality problems (except for damage caused by improper use of the laser), please feel free to contact our customer support.
4. If your laser module has any problem, please DO NOT dismantle it without contacting us.
FAQ:
1. How to assemble the kit?
The entire assembly and operation manual is on the installation CD
2. What software can support this machine? And what image format? Engrave Mode?
Supported Software: EleksCAM，T2-Laser, GrblController, LiteFire, Laser GRBL, etc.
Supported Image Format: jpg, bmp, svg, G-code
Supported Engrave Mode: Photo, Word, Scan, Outline, Pixel Laser Engraving
3. What system can the EleksCAM support?
PC Windows XP/7/8/10 , Laptop will work as well.
4. My laser doesn't work, what should I do?
If the machine does not work, it might be because:
① The wire connection is wrong.Please check the connection like the picture shown.
② Your computer could not support the software.Please use Win XP 7/8/10 as recommended.
③ Software problem.Please check whether wires are inserted rightly, And then check your data setting.
④ The kit misses some accessories.Please compare with the instruction and let us know.
⑤ Laser module/ driver board/power
