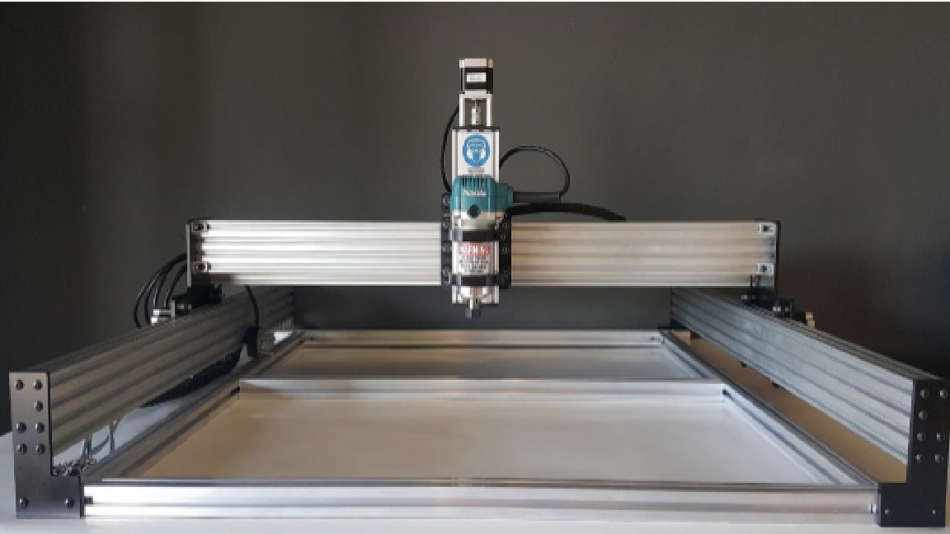

CNC Machine 1.5mx3m

• Go CNC Routers

• Features:
• Footprint: 1500mm x 3000mm at the base *Stock size measured from base
• Work Area: 1300mm x 2800mm x 55mm *Stock size
• Cutting depth 80mm.
• Open ends allow pass through of longer materials.
• All aluminium frame.
• 5 cutting bits (1mm, 1.5mm, 2mm, 2.5mm, 3mm)
• Collets 3mm, 6mm
• Electronics control box with USB cable connection (cable included)
• Full cable management with X & Y axis cable drag chains.

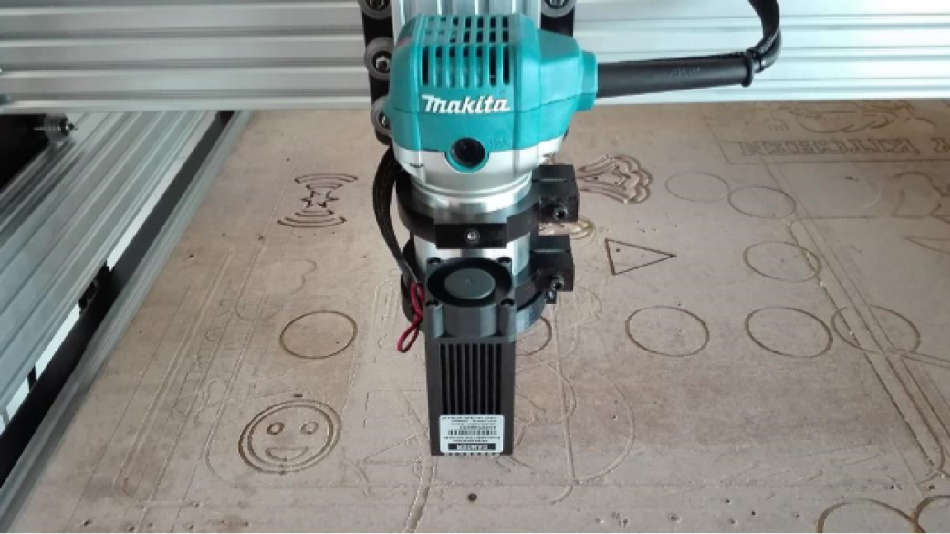

• Makita RT0700C Router (12 month warranty from any Makita dealer). 6 months warranty
• Manual Speed Controlled between 12 000 RPM - 30 000 RPM.



• Requirements:
• Personal computer or Laptop running Windows 7, 8 or 10.
• USB port on computer
• Easel Inventables and USB CNC setup

• Specifications:
• 4x Nema23 stepper motors 12.6kg/cm 175oz/in.
• 4 Axis USBCNC Stepper Motor Driver Controller Board.
• 24V 10A 250W Power Supply.
• GT3 reinforced neoprene 3mm pitch timing belts on X & Y axis.
• Dual motors on Y axis.
• T8 lead screw on Z axis
• Configured resolution: 0.0375mm
• 65mm Router Spindle Mount (suitable for Makita RT0700C).

As this item is order on request

And please allow 5-7 working days for delivery.
