CNC Router Spindle, Variable Frequency Drive (VFD), Collets, Clamp, Pump and Tubing - Brand New

CNC Router Spindle, Variable Frequency Drive (VFD), Collets, Clamp, Pump and Tubing - Brand New

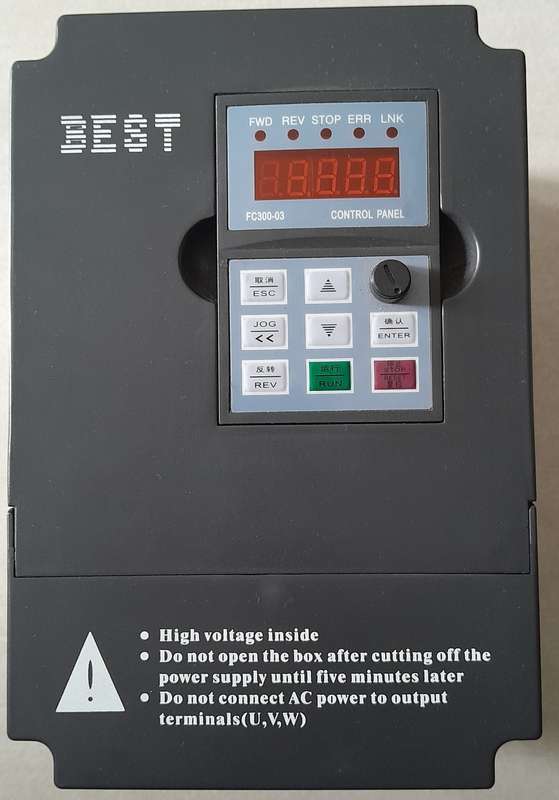

The BEST FC300-2.2G-S2-B4 is a variable frequency drive (VFD) designed for controlling the speed of electric motors, particularly in industrial applications.

Power Rating: 2.2 kW, suitable for a variety of applications.

Input Voltage: Designed for a single-phase 220V power supply.

Control Method: Utilizes advanced vector control technology for precise speed and torque control.

User-Friendly Interface: Equipped with an intuitive keypad for easy parameter setting and monitoring.

Protection Features: Includes over-voltage, under-voltage, overload, and short-circuit protection to enhance reliability and safety.

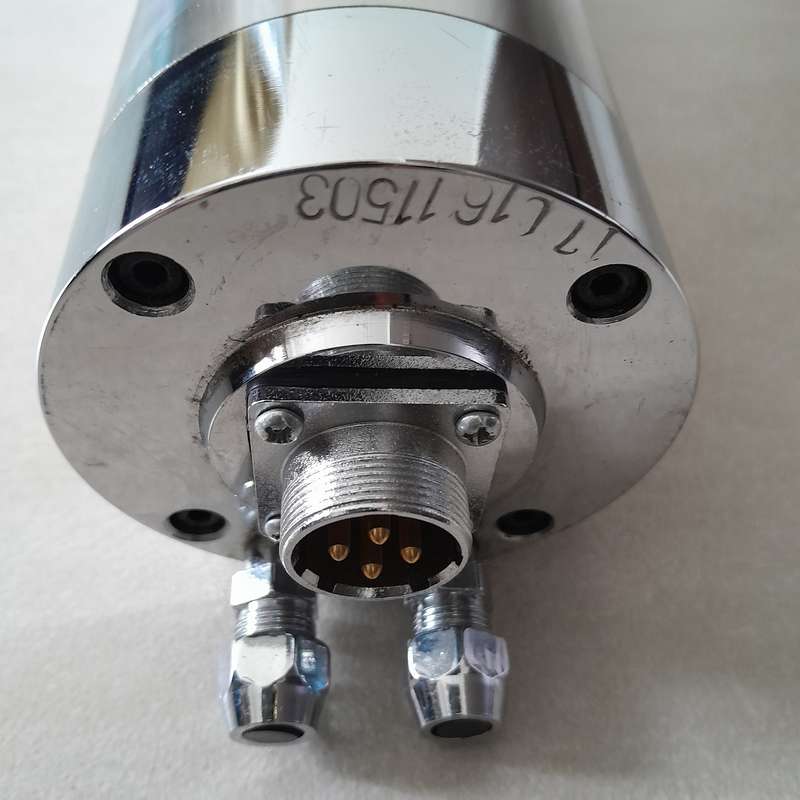

The Wang Jiannan GDZ-80-2.2B spindle is a water-cooled CNC spindle motor widely used in various machining applications, particularly for CNC routers.

Model: GDZ-80-2.2B

Power: 2.2 kW

Voltage: AC 220V

Current: 8A (some sources report up to 10A)

Max Rotation Speed: 24,000 RPM

Frequency: 400 Hz

Diameter: 80 mm

Length: 213 mm

Collet Type: ER20

Cooling Method: Water cooling, which allows for prolonged continuous operation and reduced noise compared to air-cooled spindles.

ER20 collets are widely used in CNC machines for clamping cutting bits securely.

Material: Typically made from high-quality alloy spring steel, which is fully hardened for durability.
