CNC Shield UNO R3 Board 4xA4988 Driver Kit With Heatsink For Arduino Engraver 3D Printer

CNC Shield UNO R3 Board 4xA4988 Driver Kit With Heatsink For Arduino Engraver 3D Printer

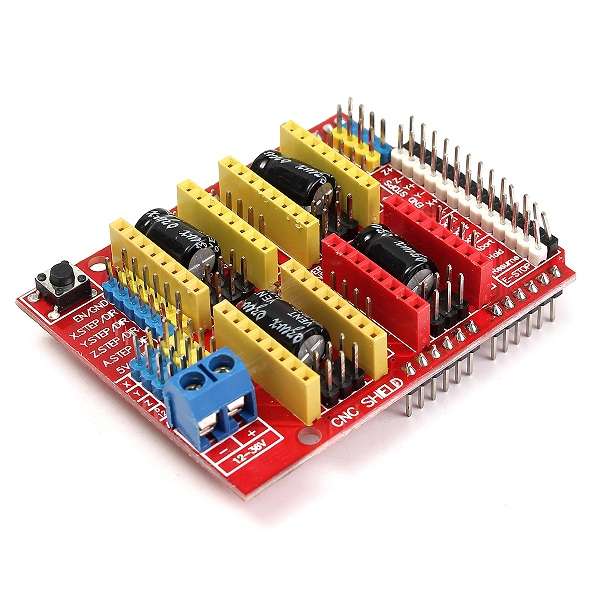

- CNC Shield Board

Version: 3.0
Color: Red

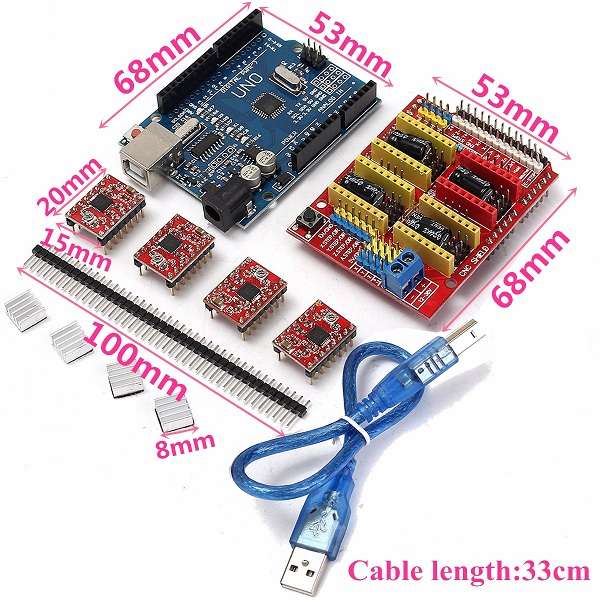

Size(L*W*H): 68 x 53 x 18 mm
Voltage: DC 12~36 V (At the moment only the DRV8825 drivers can handle up to 36V so please consider the operation voltage when powering the board.)

Features:
1. Uses removable A4988 or DRV8825 compatible stepper drivers.
2. The extension board can be used for carving machine, 3 d printer driver expansion board
3. GRBL 0.8 compatible. (Open source firmware that runs on an Arduino UNO that turns G-code commands into stepper signals)
4. PWM Spindle and direction pins,4-Axis support (X, Y, Z , A-Can duplicate X,Y,Z or do a full 4th axis with custom firmware using pins D12 and D13)
5. Compact design. Stepper Motors can be connected with 4 pin molex connectors or soldered in place.
6. Please note that this is an unassembled kit and Basic soldering skills are needed.

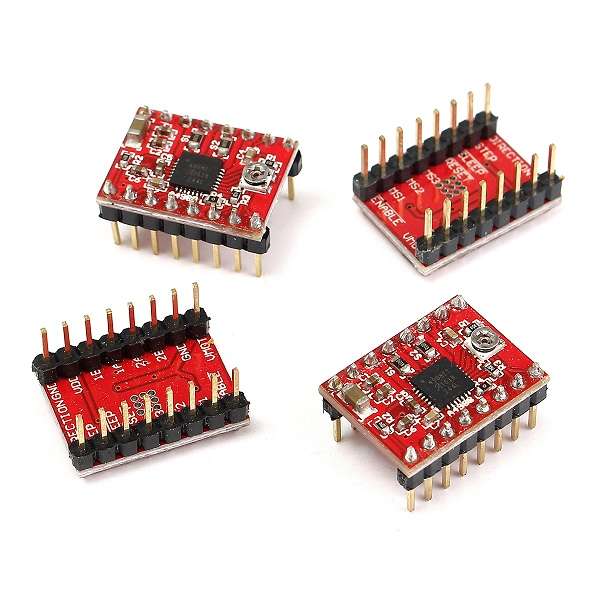

- A4988 Stepper Motor Driver

Color: Red
Size(L*W*H): 20 x 15 x 10 mm
Thermal shutdown circuitry: Yes
Crossover-current protection: Yes
Ground fault protection: Yes
Load short-circuit protection: Yes
Compatible logic supply: 3.3V and 5 V
Five selectable step modes: full, 1/2, 1/4, 1/8 and 1/16

Features:
1. Mix with slow current decay modes.
2. Internal UVLO and Low RDS (On) Output.
3. Automatic current decay mode detection/selection.
4. Synchronous rectification for low power dissipation.
5. Warning: Connecting or disconnecting a stepper motor while the driver is powered can destroy the driver.

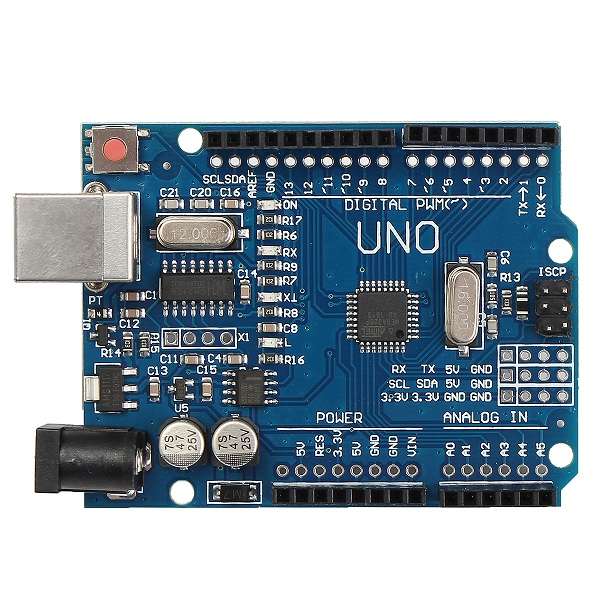

- Uno R3 Board

MCU: ATmega328
Clock speed: 16 MHz
USB interface: ATmega16U2
Operating voltage: 5 V
I-I / O pin output current: 40 mA max
3.3 V output current: 150 mA max
Digital I/O pins: 14 (including 6 with PWM capability)
Analog input pins: 6
EEPROM: 1 kB
Static RAM (SRAM): 2 kB
Flash memory: 32 kB
Size(L*W*H): 68 x 53 x 10 mm

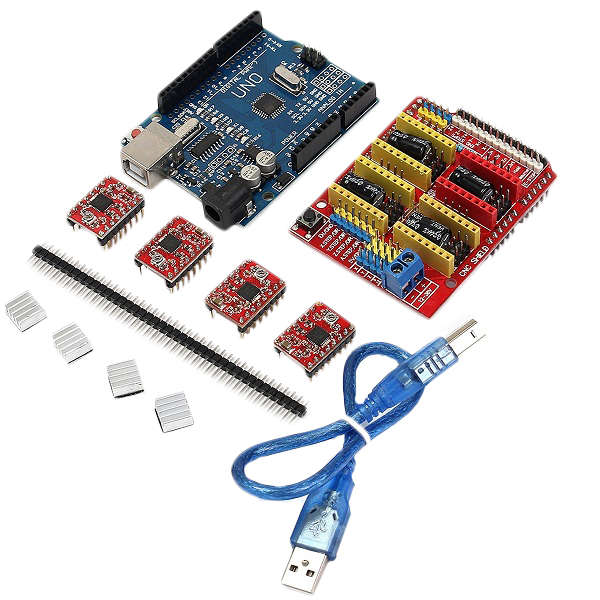

Package included:

1 x Uno R3 Board
1 x CNC Shield Board
4 x A4988 Stepper Motor Driver
4 x Heat Sink

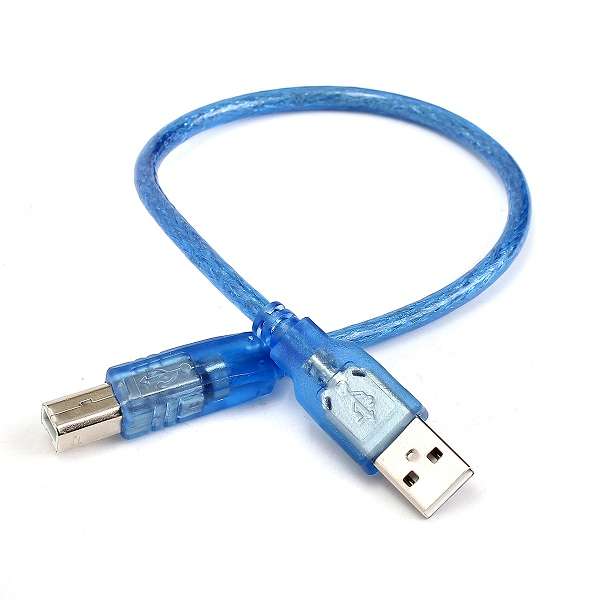

1 x USB Cable
1 x 40-Pin Row Needles
