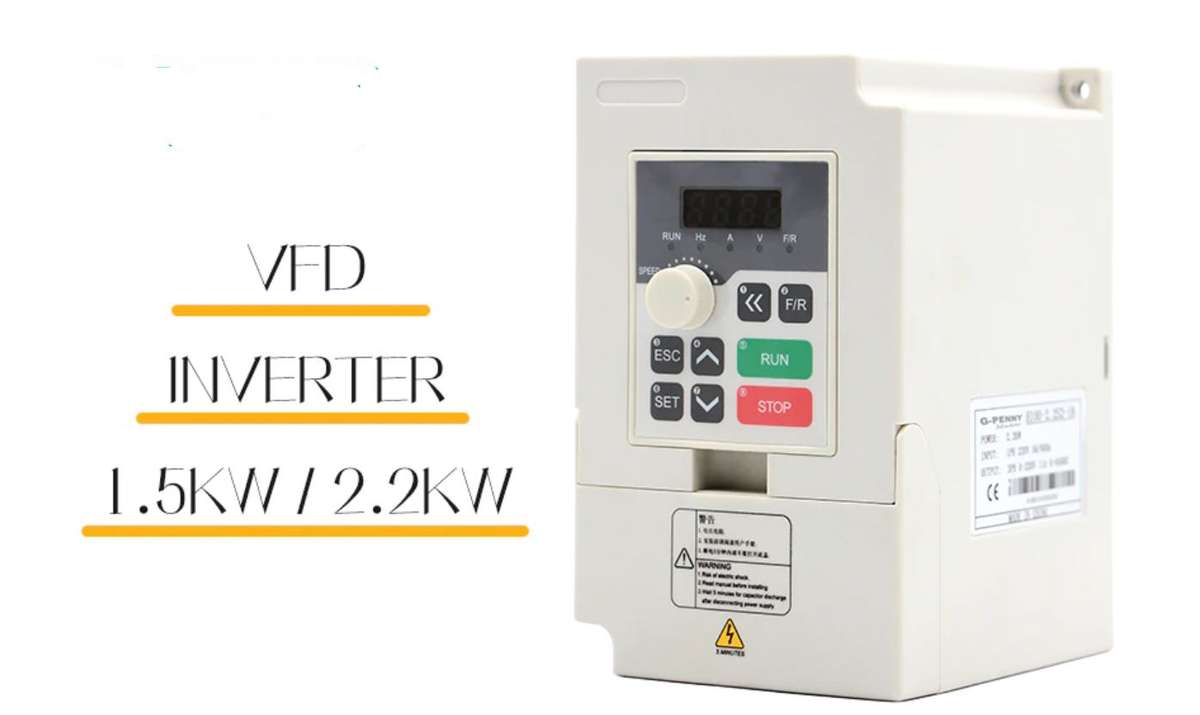

CNC Spindle Inverter / VFD 220V - 1.5KW / 2.2KW

CNC Spindle Inverter / VFD 220V 1.5KW / 2.2KW

Product Description

This is the VFD inverter Drive for spindle motor 1.5KW or 2.2KW option. Easy to Setup and install, we provide the manual guide with the VFD Inverter.

Some of its key features:

• Two-speed control modes: no PG vector control (SVC), V/F control
• No PG vector control (SVC): starting torque 0.5Hz up to 150%
• 8-stage simple PLC function, multi-speed control, and PID control
• Support multiple frequency settings: digital setting, analog setting, PID setting, RS485 communication setting

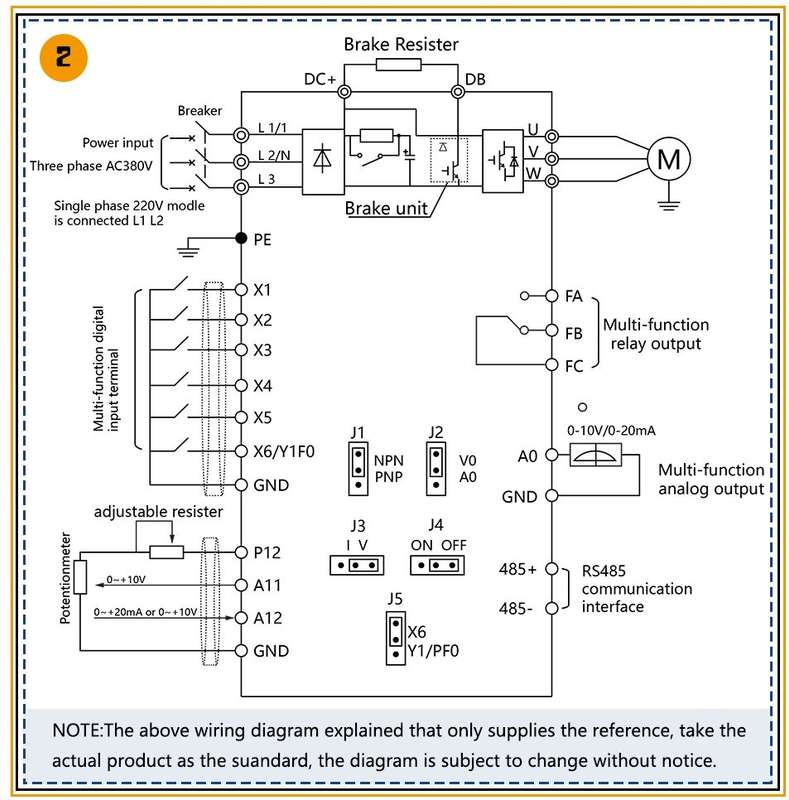

• I/O terminals can be freely programmed to combine multiple working modes according to user needs.
• With jump frequency control function, it can effectively suppress mechanical resonance and make the system more stable and reliable.
• With instantaneous power-down retention function, it can avoid the impact of production due to instantaneous power failure
• With over-torque and under torque detection
• Automatic voltage adjustment function to effectively solve the low-frequency oscillation problem of high power motor
• Provide a variety of fault protection functions: over-current, over-voltage, under-voltage, over-heat, overload, lack of equal real-time monitoring and protection to ensure safe operation

Product Specs:

•  Weight: 2kg
•  Color: White
• Input Voltage: 220V(+/-15%)
• Output Voltage: 220VAC
• Input Frequency: 50-60 Hz
• Output Frequency: 0-1000 Hz
• Input Phase: 1 phase
• Output Phase: 3 phase

Please note: Locally Stocked. Available for Immediate Shipping!
