CNC Spindle Motor Water Cooled 3KW Kit

Product Description

Neotronics South Africa provides high quality CNC Spindle Motors that are all tested and certified. We provide expert advice through our past experiences. In addition these CNC Spindle Motors are high powered and must be installed and used with caution, Installation guide is provided upon purchase. We provide shipping with insurance to your door.

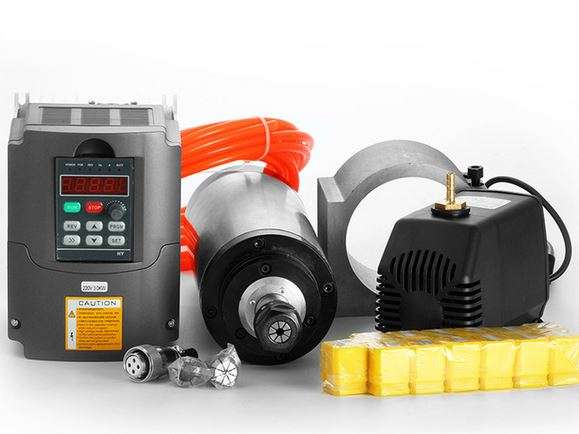

This is the CNC Spindle Motor water cooled 3KW kit, It is the full package, ready to install and start working! It comes equipped with a 13 piece collet set, Inverter, Spindle clamp ( 100mm) , Water pump, Water Pipes.

Product Features

  • Control Mode is SPWM,It is very easy to use and very convenient
  • Protection Functions are very strong
  • Fin over-heat protection
  • Overload Protection
  • Fuse Protection
  • Restart After Instant Stop, Stall Protection.
  • Powful function
  • Affordable and Reliable

Product Specs:

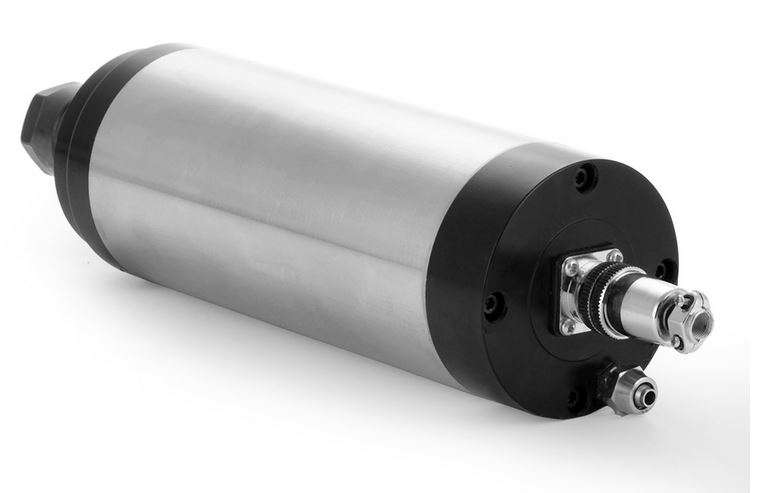

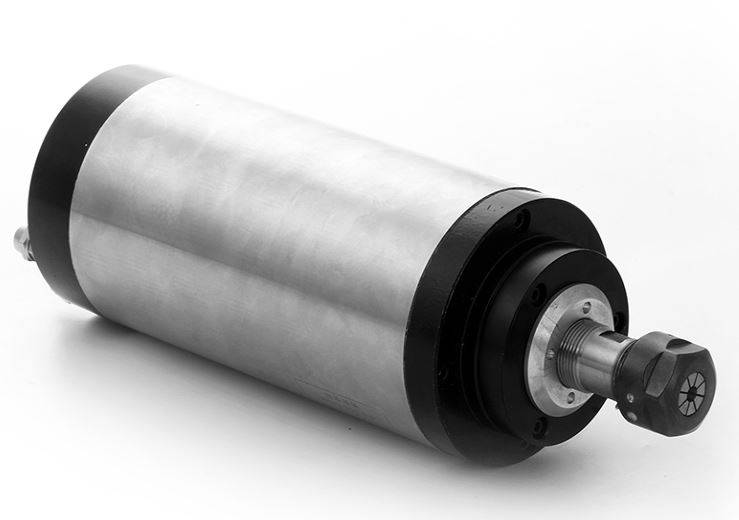

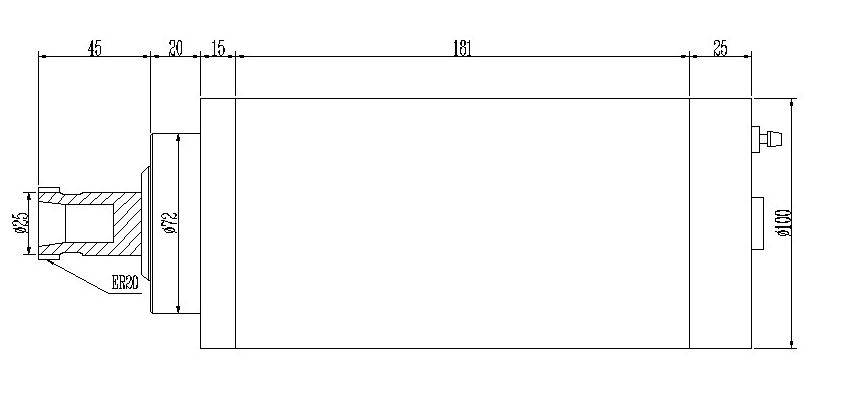

CNC Spindle Motor 3KW:

  • Power:3000W
  • Input Voltage:220V - 380V / 50Hz
  • Frequency:0-400Hz
  • Speed:0-24000rpm
  • Water Cooling ER20 collet size
  • Runout off:less than 0.005mm
  • Grease Lubrication
  • Application: Milling + Cutting

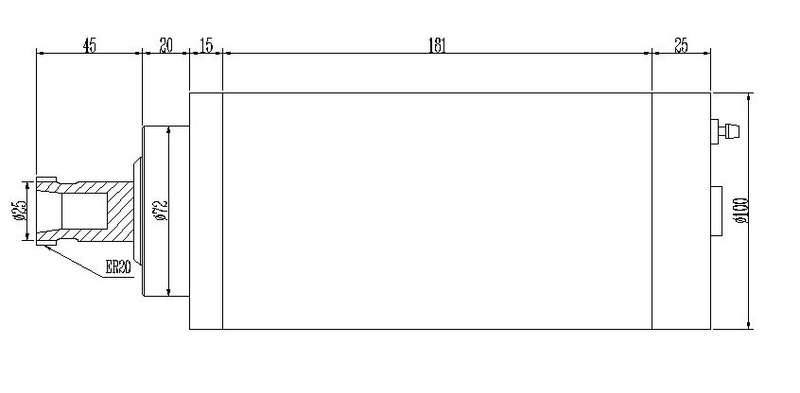

  • Diameter : 100mm
  • Bearing: C7005/P4X2 C7003/P4X2
  • Weight: 9.2KG

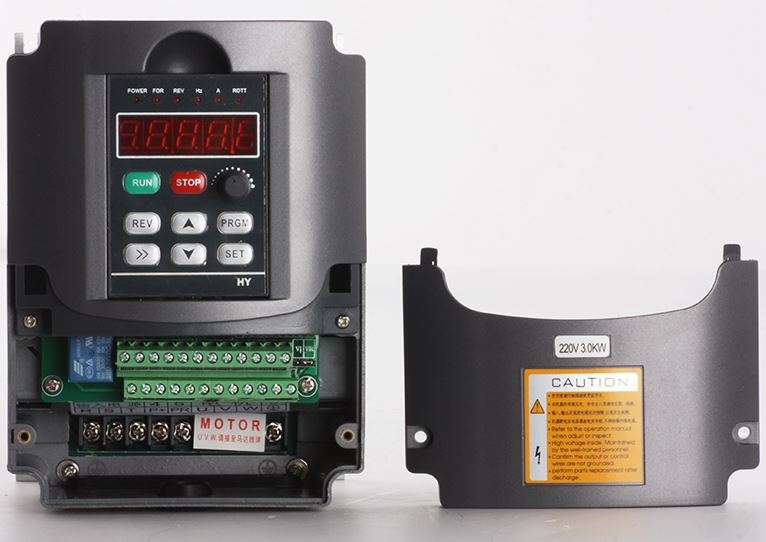

Inverter

  • Input Voltage: 220V(+/-15%) ,We also stock 380V(+/-15%), please let us know which one you prefer.
  • Output Voltage: 220VAC
  • Input Frequency: 48-63 Hz
  • Output Frequency: 0-400 Hz

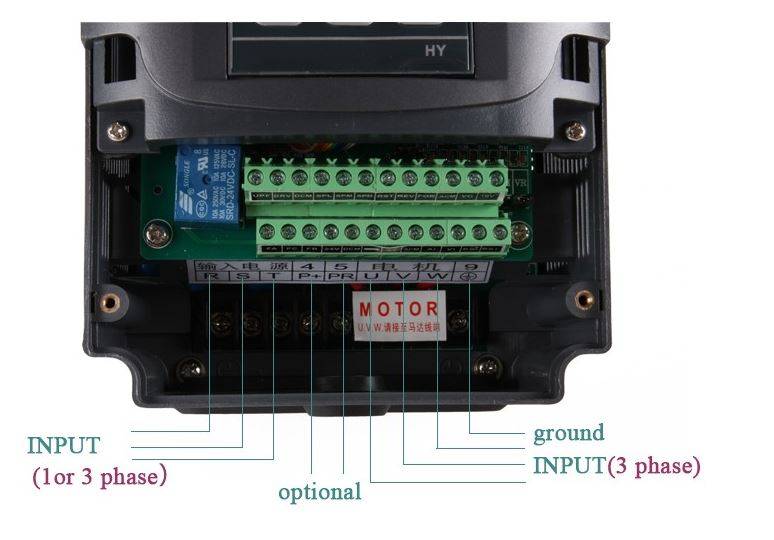

  • Input Phase: 1 or 3 phase
  • Output Phase: 3 phase

Product Package Contents

  • 1 x 3.0KW Spindle Motor
  • 1 x 3.0KW/220V INVERTER

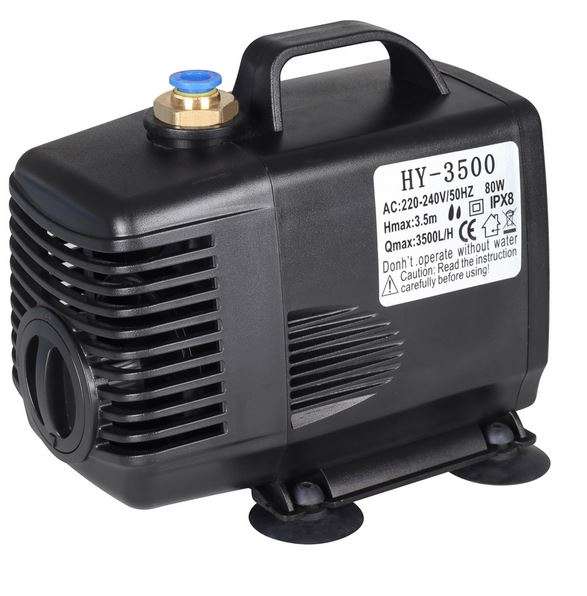

  • 1 x 3.5M Water Pump
  • 1 x 5M Water Pipes
  • 1 x 100mm Spindle Clamp

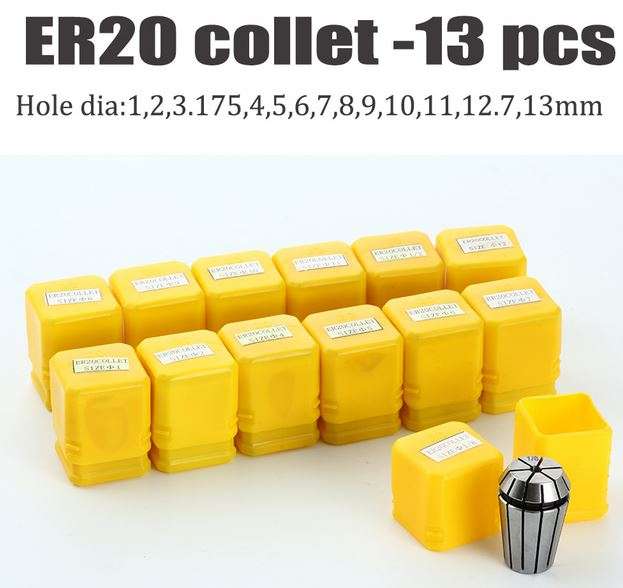

  • 13 x ER20 Collet (1-13mm)

Please confirm Stock Availability.
