Product Overview

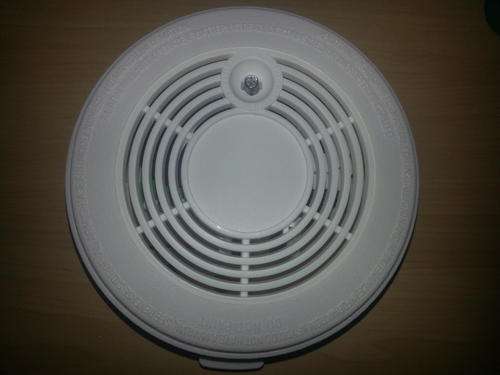

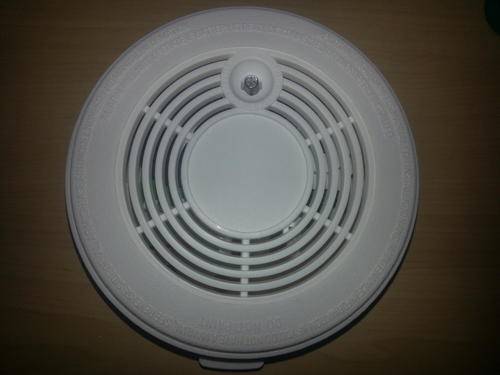

CLASS 1 carbon monoxide and smoke combination alarm This is one Single Station alarm
Features/Specifications
• Loud 85 decible alarm.
• Permanent carbon monoxide sensor.

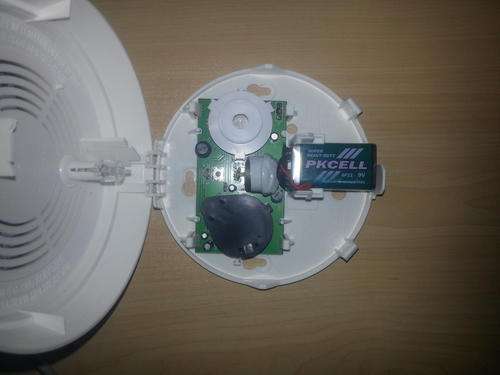

• Powered by one 9V battery & AC220V
• The alarm sound pattern is pulsed four short alarm beeps for CO alarm and continuous beeps for smoke alarm. The sound pattern is smoke pattern as CO and smoke occur simultaneously. The LED will flash while in alarm mode.
• One "chirp" every 30 seconds is an indication that the battery is low (needs replacement) or the unit is malfunctioning.
• Test button to test the units electronics verifies proper unit operation
• Green and red LED lights that indicate normal operation and alarm status.
• The unit will make a "chirp" sound and the red LED flashes once as it powers up
Green LED: The green LED flashes every 30 seconds to indicate the unit is operating properly
Red LED: When a dangerous level of carbon monoxide is detected and potential fire is detected, the red LED will flash and the alarm will sound.
The CARBON MONOXIDE (CO) & SMOKE combination alarm monitors the air for the presence of CO or a potential fire.
The alarm will sound and will be accompanied by the flashing red LED light when there are high levels of CO present or there is a potential fire present.
CAUTION: This alarm will only indicate the presence of carbon monoxide gas at the sensor. Carbon monoxide gas may be present at a other area.
Specifications
Power Supply: One 9V carbon zinc battery 6F22
Sensitivity Setting:
CO: Alarm Density:
- 30ppm: alarm is not actived within 120 minutes
- 50ppm: alarm goes off within 60 ÍÂ 90 minutes
- 100ppm: alarm goes off within 10 ÍÂ 40 minutes
- 300ppm: alarms goes off within 3 minutes
SMOKE: 1% ~ 5%/FT OBS
Standby Current: <25uA
Alarm Current: <45mA
Operating Ambient Condition: 5 ~ 400C, 20 ~ 90% R.H.
