Product details

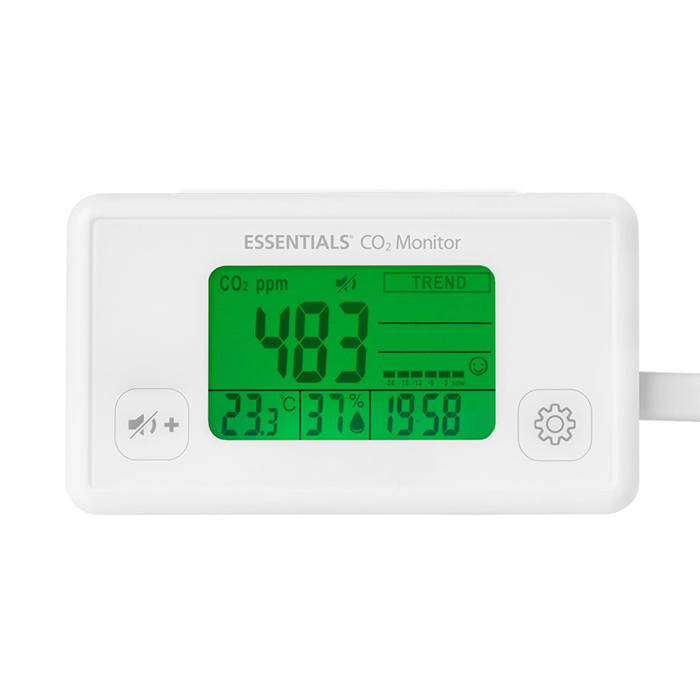

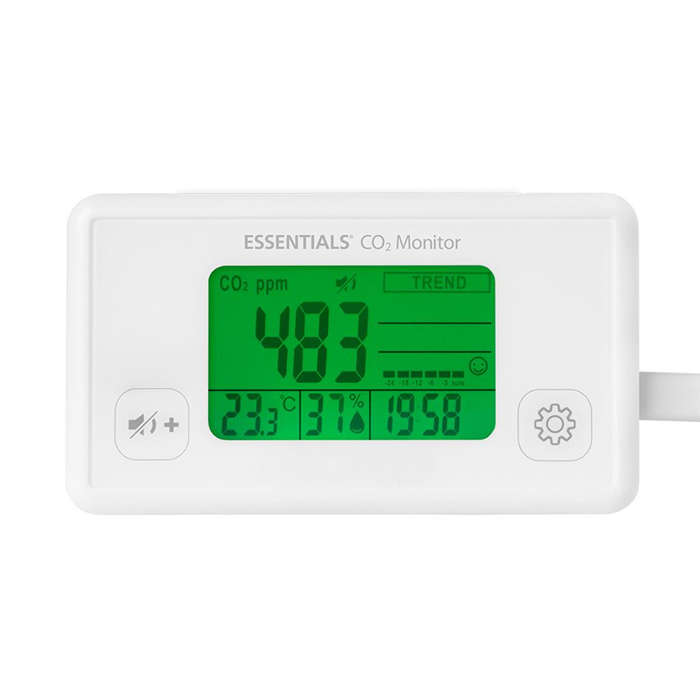

Essentials CO2 Monitor (ALSO MONITORS TEMPERATURE and RELATIVE HUMIDITY)
The Essentials CO2 Monitor is a user-friendly indoor air quality monitor, which detects CO levels using a Non-Dispersive Infrared (NDIR) spectroscopic sensor. Its large-format display shows the real-time CO level, ambient temperature and relative humidity, along with a clock and a bar-chart indicating how CO levels have changed over the previous 24 hours. It can be set to give a green / amber / red backlight to indicate normal / raised / high levels of CO, and there is also a programmable audible alarm which will sound when the CO level reaches a user-set threshold.
The backlight can be switched off or set to automatically dim from 22:00pm to 06:00am. If preferred, the backlight colour can be selected from seven colour options to complement the surroundings.
Powered via a USB lead from a mains power adaptor (supplied) or from a PC or USB Power Bank.
Technical Specs:
| CO2 Measuring Range | 200 ppm 5000 ppm | |
| CO2 Reading Accuracy, 0 ppm 3000 ppm | +-50 ppm +-5% of reading | |
| CO2 Reading Accuracy, >3000 ppm | +- 10% of reading | |
| CO2 Response Time | <2 Minutes (63% step change) | |
| CO2 Resolution | 1 ppm | |
| Temperature Measuring Range | 0.0 C 50.0 C (32.0 F 122.0 F) | |
| Temperature Reading Accuracy | +-0.6 C (+-0.9 F) | |
| Temperature Response Time | <2 Minutes (90% step change) | |
| Temperature Resolution | 0.1 C / 0.1 F | |
| Humidity Measuring Range | 5% 95% Relative Humidity | |
| Humidity Reading Accuracy, 10% 90% RH at 25C | +-5% Relative Humidity | |
| Humidity Reading Accuracy, <10% RH, >90% RH at 25C | +-7% Relative Humidity | |
| Humidity Response Time | <20 Minutes (90% step change) | |
| Humidity Resolution | 1% Relative Humidity | |
| Alarm Buzzer Sound Intensity | 70 dB at 10 cm distance | |
| Operating Ambient Conditions | 0C 50 C,0%RR-95% RH (avoid condensation) | |
| Storage Ambient Conditions | -20 C 60 C, 0% RH 95% RH (avoid condensation) | |
| Power Supply | 5 V DC via USB type C Port | |
| Power Consumption | <500 mA | |
| Universal Power Adaptor Input | 100V-240 V AC, 50 kHz 60 kHz, 250 mA | |
| Universal Power Adaptor Output | 5 V DC, 600 mA, 3.0W | |
| Monitor Overall Dimensions | 108 mm wide x67 mm high X 30 mm deep | |
| Monitor Weight | 90 g | |
| IP Rating | IP30 |
