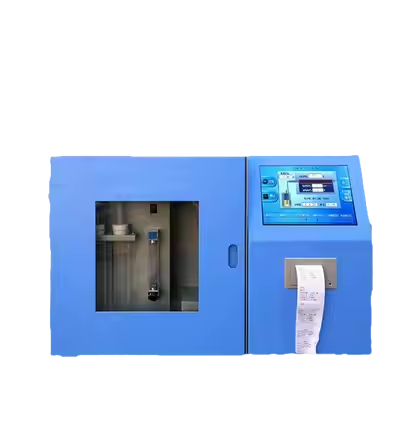

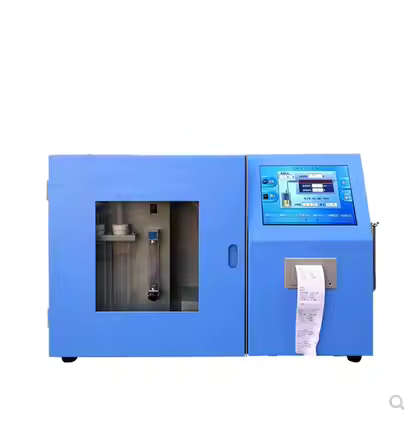

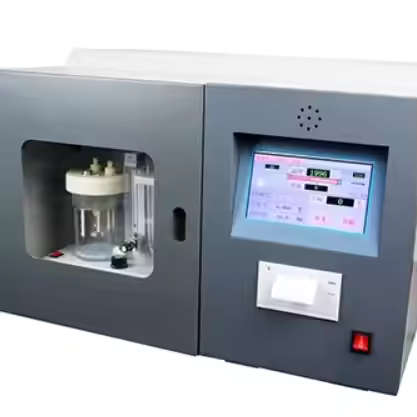

Coal Total Sulfur Analyzer
Electric Microcomputer Sulfur Analyzer for Coal
Integrated Coal Total Sulfur Analyzer
Application:
The instrument is mainly used to determine the total sulfur content in coal, iron and steel and various mines. It is the preferred and necessary instrument for the laboratories of coal, electric power, chemical industry, building materials, metallurgy, geological prospecting, commodity inspection, environmental testing and other departments.
Coal Total Sulfur Analyzer is an ideal sulfur measuring instrument for laboratories at present.
Features:
Compared with others similar ones, this instrument has the following features:
1.The man-machine interface is friendly, and the keyboard operation is simple and easy to learn .
2.The furnace temperature adopts PID mode to control the furnace flow, with high temperature control accuracy, which can effectively protect the silicon carbon tube and prolong the service life.
3.It can be directly changed by keyboard input to set the temperature and correction.
4. Electronic switch, high reliability.
5.When making coal samples, you can check the furnace temperature, furnace flow, indicating voltage, process time and sulfur content at any time.
6.Automatic determination of titration end-points, less experiment time.
7. If the moisture value is entered, calculate and print the dry agent sulfur and moisture values.
8.This instrument can memorize the latest 100 historical records when power off, and print historical records at any time.
Main Technical Parameters:
1.Sulfur measuring range: 0-10%
2.Analytical time of sample combustion:3-9 min, automatic determination of titration end-points.
3.Temperature control: accuracy 1150±5ºC. Temperature measurement: precision 0.5; heating body is silicon carbon tube, high temperature zone length 90 mm, temperature 1150 ºC ± 5 ºC (adjustable).
4.Heating speed: 25-30ºC/min, reaching 1200ºC in less than 35 minutes
5. Electrolytic cell: 450 ml; metal platinum electrode.
6. Instrument stability : being stable in 1 minute after started
7.Power supply: 220V±20% 50Hz.
