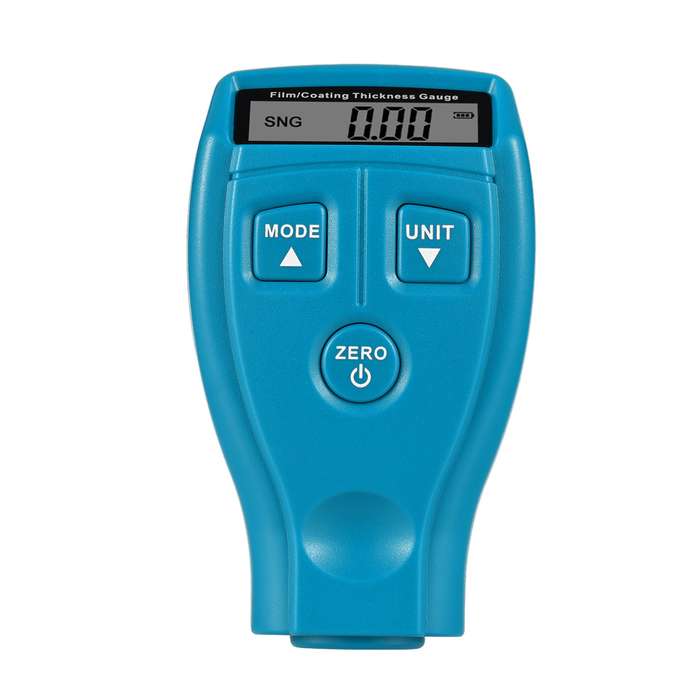

Coating Thickness Gauge LCD Digital Paint Thickness Probe Tester Car Paint Depth Test Meter Pa

Features:
Basic Functions: it can measure the non-metallic coating thickness(such as paint, film, etc.) of metal substrate surface quickly and accurately.
Car/User Dual Modes: you can measure coating thickness of substrate material for calibration. And the car mode can be used without calibration, it measures coating thickness of 3 substrate materials(iron, aluminum and zinc), suitable for measuring the thickness of car.
3 Measurement Modes Switchable: Single measurement(SNG), continuous measurement(CTN) and difference value measurement(DIF) available, easy to switch by pressing the MODE button.
3 Calibration Ways Under User Mode: including zero calibration, two-point calibration and basic calibration.
Metric and Imperial Measuring Units: short press the UNIT button to switch between mm(metric) and mil(imperial).
Wide Applications: it is widely used in the inspection field of automobile manufacturing, metal processing industry, chemical industry, commodity inspection, etc.

Specifications:
Material: ABS
Unit: mm, mil
Measurement Range: 0~1.80mm/0~71.0mil
Car Mode Resolution: 0.05mm/2mil
User Mode Resolution: 0.01mm/1mil
Measurement Error: ￂﾱ0.1mm
Minimum Diameter of Substrate: 50mm
Minimum Thickness of Substrate: 0.5mm
Temperature Range: 18~30￢ﾄﾃ
Work Humidity Range: 10~80%RH
Calibration Coating Film: 0.05/0.10/0.25/0.50/1.00/2.00mm
Power Supply: 2 * 1.5V AAA battery (NOT included)
Item Size: 105 * 62 * 30.5mm / 4.13 * 2.44 * 1.20in
Item Weight: 57g / 2.03oz
Package Weight: 109g / 3.86oz
Package Size: 20 * 15.5 * 7.5cm / 7.87 * 6.10 * 2.95in

Packing List:
1 * Thickness Gauge
6 * Calibration Coating Film
1 * Manual (English)
