Description:

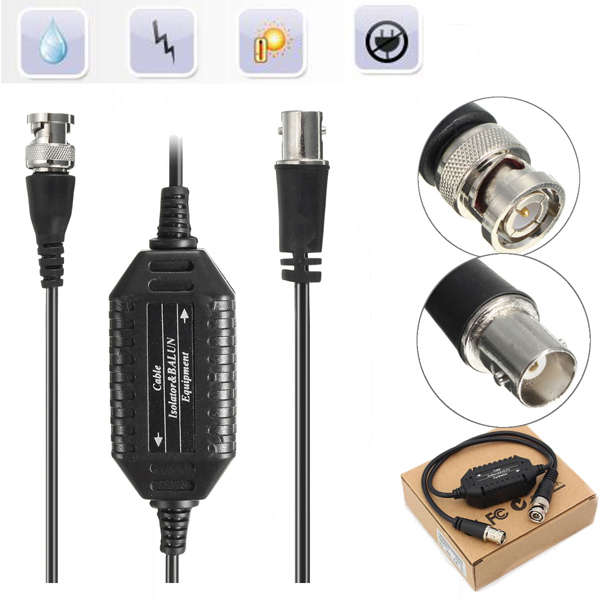

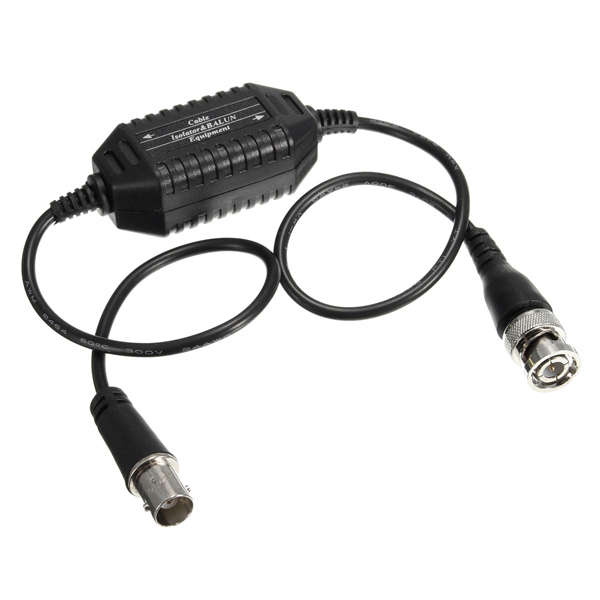

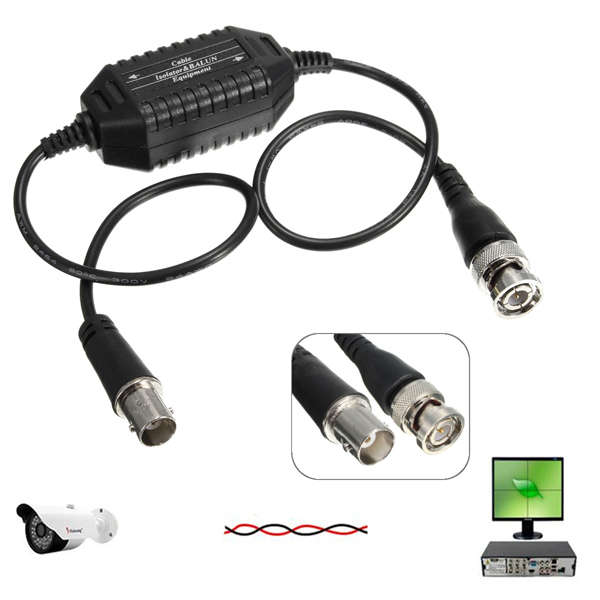

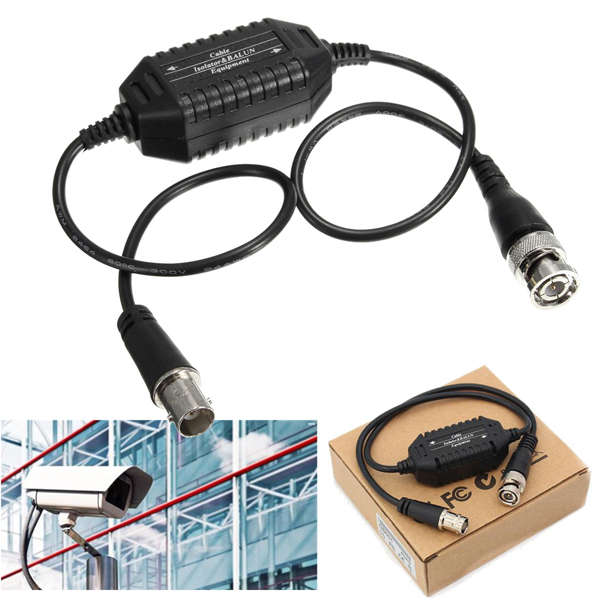

Coaxial Video Ground Loop Isolator Balun BNC Male to Female for CCTV Camera
Features:
1.100% brand new and high quality.
2. BNC male to BNC female with mini cable 15 on both sides.
3. Passive, no power required.
4. Prevents video-signal distortion caused by video ground loops.
5. Eliminates picture tearing, cross talk and rolling.
6. Prevents power cables laid by others interfering with the CCTV system.
7. Built in TVS (Transient Voltage Suppressors) for surge protection.
2. BNC male to BNC female with mini cable 15 on both sides.
3. Passive, no power required.
4. Prevents video-signal distortion caused by video ground loops.
5. Eliminates picture tearing, cross talk and rolling.
6. Prevents power cables laid by others interfering with the CCTV system.
7. Built in TVS (Transient Voltage Suppressors) for surge protection.
Specification:
1. Insertion Loss: 0.5dB
2. Frequency Response: 20Hz -10MHz (0-3dB)
3. Coaxial Input/Output Resistance: 75 Ohm
4. Ground Isolation : >90dB @ >50Hz
5. Isolation Voltage: DC 600V (Min)
6. Insulation Resistance : 100M Ohm
7. Transient Voltage Suppressors: 12 Vrms
8. Dimensions: 68 x 28 x 21mm with 24cm x 2 Cable
2. Frequency Response: 20Hz -10MHz (0-3dB)
3. Coaxial Input/Output Resistance: 75 Ohm
4. Ground Isolation : >90dB @ >50Hz
5. Isolation Voltage: DC 600V (Min)
6. Insulation Resistance : 100M Ohm
7. Transient Voltage Suppressors: 12 Vrms
8. Dimensions: 68 x 28 x 21mm with 24cm x 2 Cable
Package includes:
1 x BNC Video Ground Loop Isolator

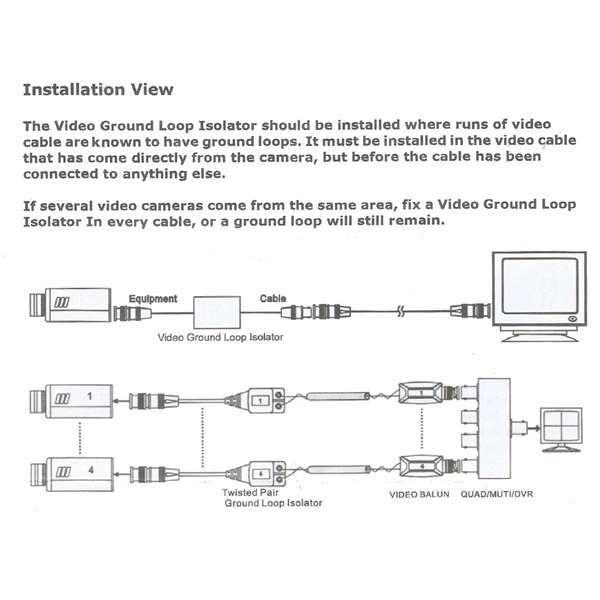

1 x English Installation instructions
1 x English Installation instructions
Details pictures:
