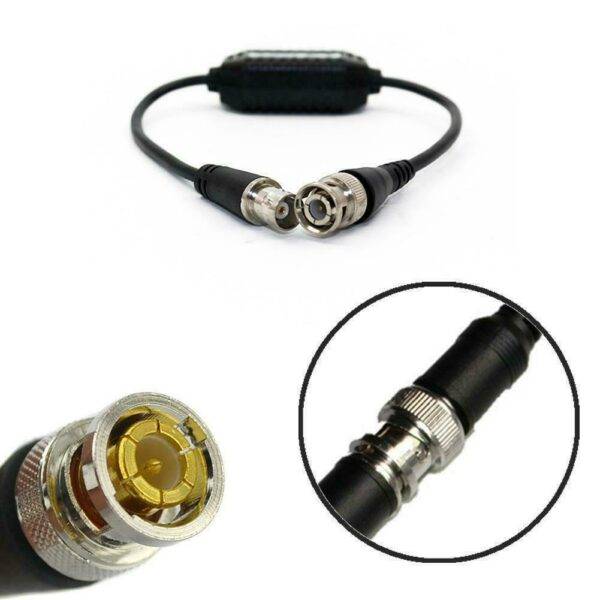

Coaxial Video Ground Loop Isolator Balun BNC Male to Female
Compact size and easy installation.
BNC male to BNC female with mini cable on both sides.
Passive, no power required.
Prevents video-signal distortion caused by video ground loops.
Eliminates picture tearing , cross talk and rolling
Built in video BALUN, perfect to work with DVR to immunity DVR interference , for extra interference rejection
Built in TVS for surge protection.
No filter ground isolator, suitable for coaxial grounding isolation.
HD-TVI/CVI/AHD/CVBS 4 in 1 ground loop lsolated videa balun.
Up to 230m(754ft)for HD-TVI Hikvision 720p camera
Up to 250m(820ft)for HD-TVI Hikvision 1080p camera
Up to 440m( 1443f) for HD-CVI Dahua 720p camera.
Up to 240m(787f) for HD-CVI Dahua 1080p camera.
Up to 320m( 1053t)for AHD 1080p camera.
Up to 330m(1082ft) for AHD 1080p camera.
Wave Filter Design, Anti- Static Design
Lightning protection design Grade: III
60 dB crosstalk and noise immunity
Exceptional interference rejection.
Video signal strength is stronger than filtered.
Item Type: Ground Loop Isolator
Shell Material: Plastic
Color: Black
Insertion loss 0.5db
Frequency response 0-3db at 10 MHZ
Input Resistance 75ohm
Output Resistance 75ohm
Isolation Voltage 600VDC(Min)
Insulation resistance 100m Ohm
Transient Voltage suppressors 12 Vrms
Design: ABS plastic injection-wide, compact
Package Weight: 36g
Package Dimensions: 14cm x 8 (L x H)
Package Includes:
1 x Coaxial Video Ground Loop Isolator
