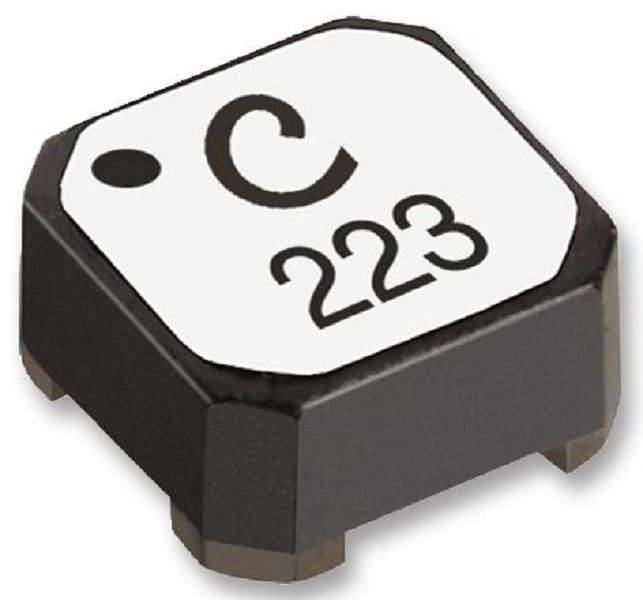

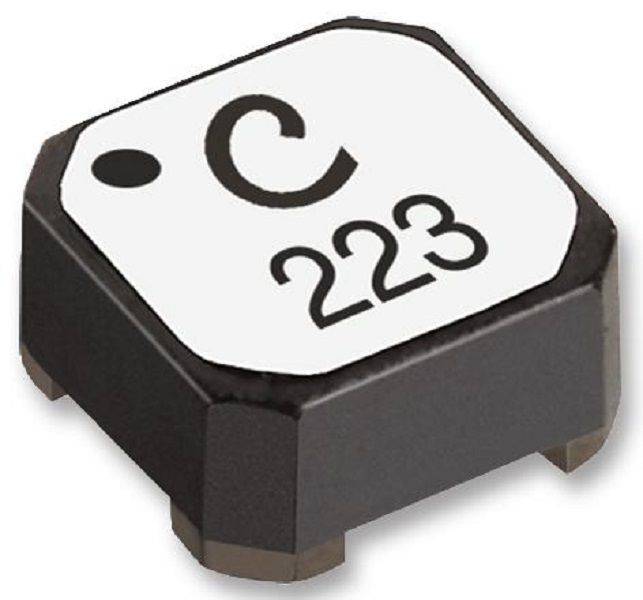

Coilcraft (LPD3015-104MRC) Inductor, Coupled, 100 µH, 20%, 8.54 ohm, 190 mA

Inductor, Coupled, 100 µH, 20%, 8.54 ohm, 190 mA, 3mm x 3mm x 1.4mmProduct InformationProduct Range: LPD3015Inductance, Parallel: 100µHRMS Current - Parallel: 190mASaturation Current - Parallel: 210mACoupled Inductor Case: 3mm x 3mm x 1.4mmDC Resistance Max - Parallel: 8.54ohmProduct OverviewThe LPD3015 series Coupled Inductor with ferrite core and matte tin over nickelover silver termination. It is ideal for use in flyback, multi-output buck,SEPIC and Zeta applications. It can also be used as two single inductorsconnected in series or parallel or as a common mode choke.High inductance, high efficiency and excellent current handlingResistance to soldering heatMoisture sensitivity level 1PCB washing is recommended by only pure water or alcoholAEC-Q200 qualified100Vrms Winding to winding isolationApplicationsPower Management, Industrial, Automotive
