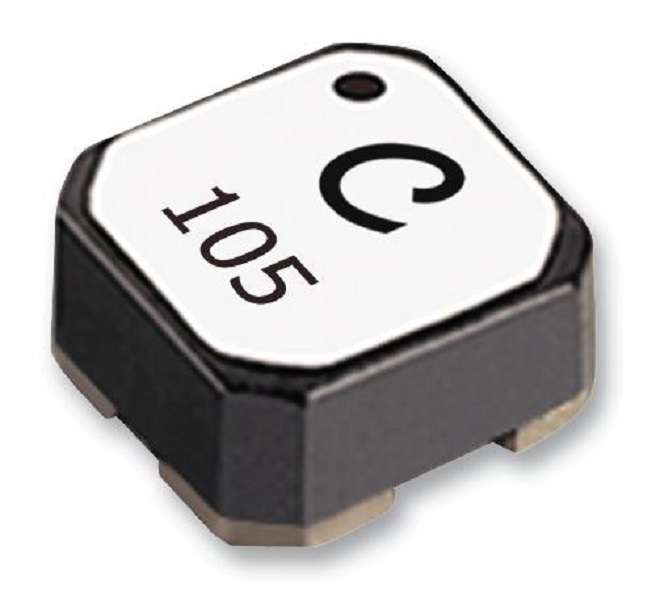

Coilcraft (LPR6235-253PMRB) Inductor, Coupled, 25 µH, 72 ohm

Inductor, Coupled, 25 µH, 72 ohm, 6mm x 6mm x 3.5mmProduct InformationProduct Range: LPR6235Inductance, Parallel: 25µHRMS Current - Parallel: -Saturation Current - Parallel: 700mACoupled Inductor Case: 6mm x 6mm x 3.5mmDC Resistance Max - Parallel: 72ohmProduct OverviewThe LPR6235-253PMRB is a shielded Coupled Inductor measures only 3.5mm high and6mm square. The excellent coupling coefficient (k=0.95) makes them ideal for usein a variety of applications. This inductor can be used as flyback transformersand step-up pulse transformers. The high Isat and low DCR ratings of thisinductor provide high efficiency and excellent current handling in a ruggeddesign. This LPR6235 inductor is available with ferrite core and matte tin overnickel over silver terminations. It is resistance to soldering heat maximumthree 40 seconds reflows at +260°C, parts cooled to room temperature betweencycles. This inductor features moisture sensitivity level (MSL) of 1 and theinductance is measured at 100kHz, 0.1Vrms, 0ADC on an Agilent/HP 4284A LCR meteror equivalent. This inductor is applicable for low voltage step-up in energyharvesting.1:20 Turns ratioApplicationsPower Management
