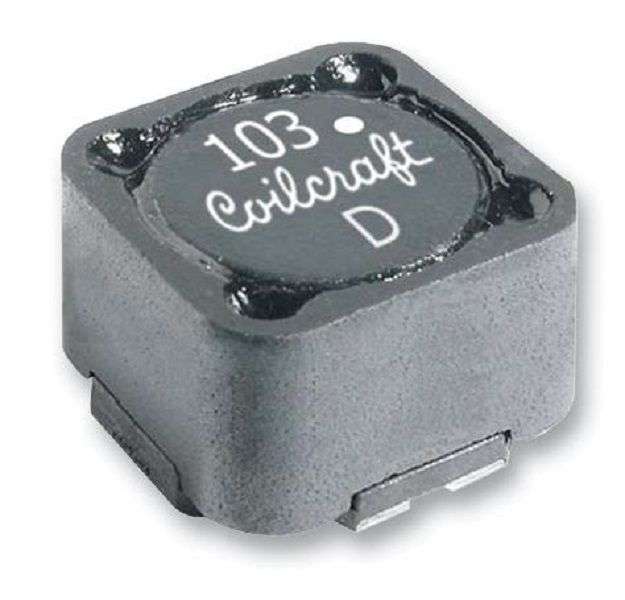

Coilcraft (MSD1278-103MLD) Inductor, Power, 10 µH, 20%, 0.029ohm, 2.56A

Inductor, Power, 10 µH, 20%, 0.029ohm, 2.56A, 12.3mm x 12.3mm x 8.05mmProduct InformationProduct Range: MSD1278Inductance, Parallel: 10µHRMS Current - Parallel: 2.56ASaturation Current - Parallel: 10.5ACoupled Inductor Case: 12.3mm x 12.3mm x 8.05mmDC Resistance Max - Parallel: 0.029ohmProduct OverviewThe MSD1278 series Coupled Inductor with ferrite core and matte tin over nickelover phosphor bronze termination. It provides high inductance, high efficiencyand excellent current handling in a rugged design. It can also be used as twosingle inductors connected in series or parallel or as a common mode choke. Thetight coupling (k >=0.98) and 500V isolation make the MSD1278 series of shieldedcoupled inductors ideal for use in a variety of circuits including flyback,multi-output buck and SEPIC applications.Resistance to soldering heatMoisture sensitivity level 1PCB washing is recommended by only pure water or alcohol500Vrms Winding-to-winding and winding-to-core isolationApplicationsPower Management, Industrial
