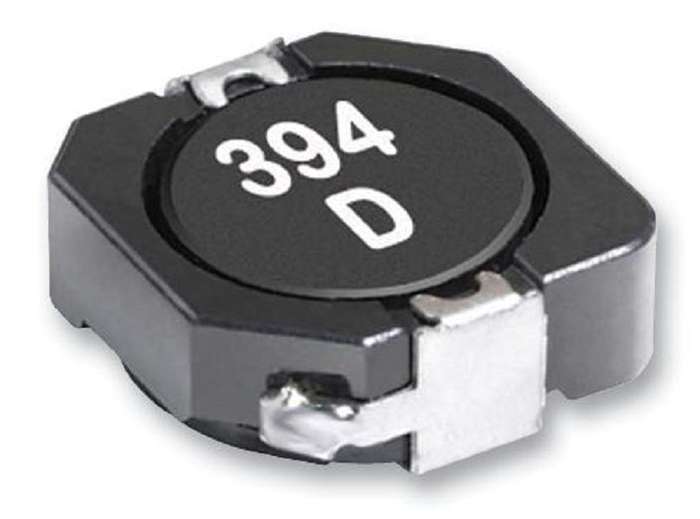

Coilcraft (MSS1038-153MLC) Power Inductor (SMD), 15 µH, 3.8 A, Shielded

Power Inductor (SMD), 15 µH, 3.8 A, Shielded, 2.84 A, MSS1038, 10.2mm x 10mm x3.8mmProduct InformationInductance: 15µHRMS Current (Irms): 3.8AInductor Construction: ShieldedSaturation Current (Isat): 2.84AProduct Range: MSS1038Power Inductor Case: 10.2mm x 10mm x 3.8mmDC Resistance Max: 0.05ohmInductance Tolerance: ± 20%Product OverviewThe MSS1038-153MLC is a surface mount shielded Power Inductor with ferrite core.This inductor features matte tin over nickel over copper terminations and isresistance to soldering heat maximum three 40 seconds reflows at +260°C, partscooled to room temperature between cycles. This inductor also features moisturesensitivity level (MSL) of 1, failures in time (FIT)/mean time between failures(MTBF) is 38 per billion hours/26,315,789 hours, calculated per Telcordia SR-332and only pure water or alcohol recommended for wash. DC current at which theinductance drops the specified amount from its value without current andInductance tested at 100kHz, 0.1Vrms, 0Adc.Very low DCR and excellent current handling
