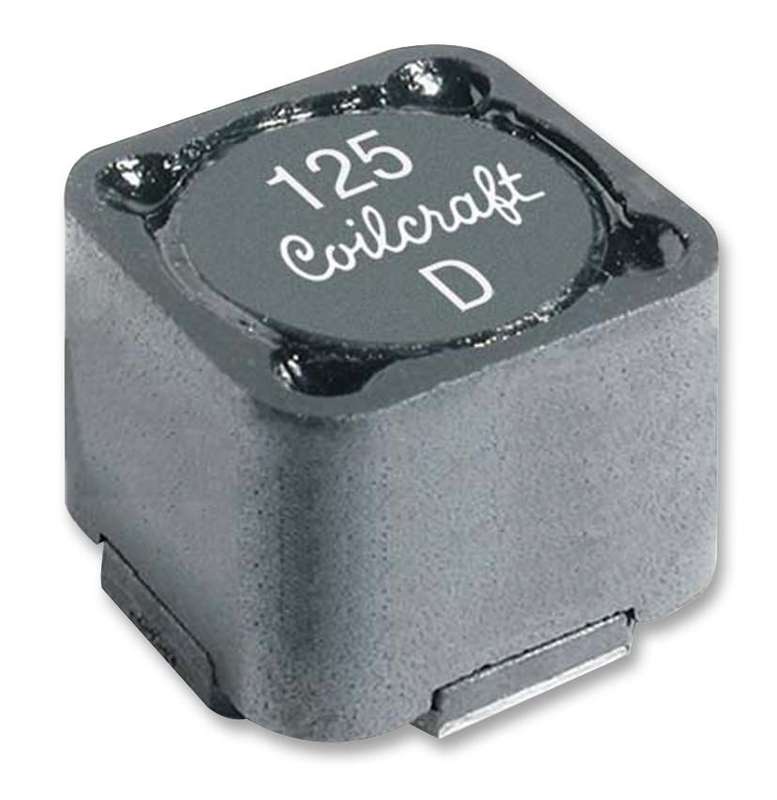

Coilcraft (MSS1210-473MED) Power Inductor (SMD), 47 µH, 4.6 A, Shielded

Power Inductor (SMD), 47 µH, 4.6 A, Shielded, 4.5 A, MSS1210, 12.3mm x 12.3mm x10mmProduct InformationInductance: 47µHRMS Current (Irms): 4.6AInductor Construction: ShieldedSaturation Current (Isat): 4.5AProduct Range: MSS1210Power Inductor Case: 12.3mm x 12.3mm x 10mmDC Resistance Max: 0.058ohmInductance Tolerance: ± 20%Product OverviewThe MSS1210-473MED is a surface mount shielded Power Inductor with ferrite core.This inductor features matte tin over nickel over phosphor bronze terminationsand is resistance to soldering heat maximum three 40 seconds reflows at +260°C,parts cooled to room temperature between cycles. This inductor also featuresmoisture sensitivity level (MSL) of 1, failures in time (FIT)/mean time betweenfailures (MTBF) is 38 per billion hours/26,315,789 hours, calculated perTelcordia SR-332 and only pure water or alcohol recommended for wash. DC currentat which the inductance drops the specified amount from its value withoutcurrent and Inductance tested at 100kHz, 0.1Vrms, 0ADC using an Agilent/HP 4263BLCR meter or equivalent.Low DCR and excellent current handlingHalogen-free
