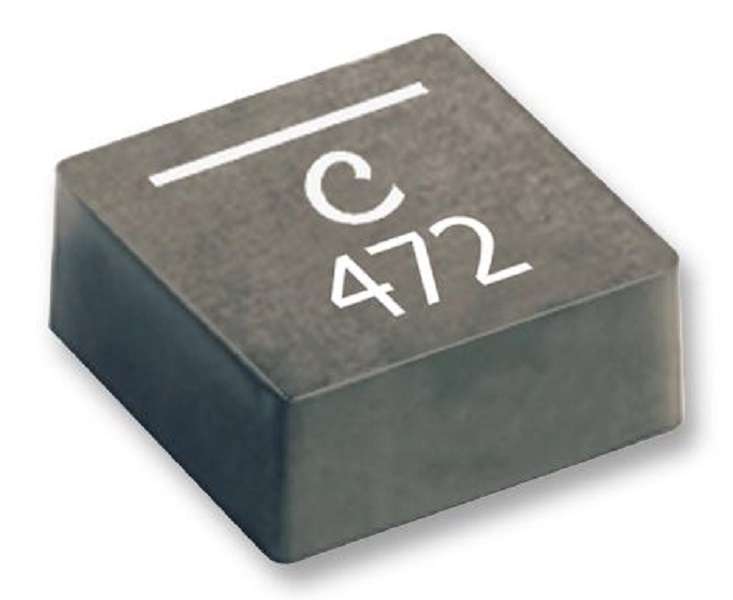

Coilcraft (XFL4020-332MEB) Power Inductor (SMD), 3.3 µH, 5.2 A, Shielded

Power Inductor (SMD), 3.3 µH, 5.2 A, Shielded, 2.7 A, XFL4020, 4mm x 4mm x 2.1mmProduct InformationInductance: 3.3µHRMS Current (Irms): 5.2AInductor Construction: ShieldedSaturation Current (Isat): 2.7AProduct Range: XFL4020Power Inductor Case: 4mm x 4mm x 2.1mmDC Resistance Max: 0.0383ohmInductance Tolerance: ± 20%Product OverviewThe XFL4020-332MEB is a surface mount high temperature shielded Power Inductorwith composite core and tin-silver (96.5/3.5) over copper terminations.Resistance to soldering heat maximum three 40 seconds reflows at +260°C, partscooled to room temperature between cycles. This inductor features moisturesensitivity level (MSL) of 1, failures in time (FIT)/mean time between failures(MTBF) is 38 per billion hours/26,315,789 hours, calculated per Telcordia SR-332and tested to MIL-STD-202 method 215 plus an additional aqueous wash. The DCcurrent at 25°C causes an inductance drop of 30% typical from its value withoutcurrent and Inductance tested at 100kHz, 0.1Vrms, 0Adc.Excellent current handling capability10.8mR Very low DCRHalogen-freeAEC-200 grade 1 qualified
