Color Sensor Recognition module for Arduino - TCS3200

Color Sensor / TCS3200

Product Package Content(s):

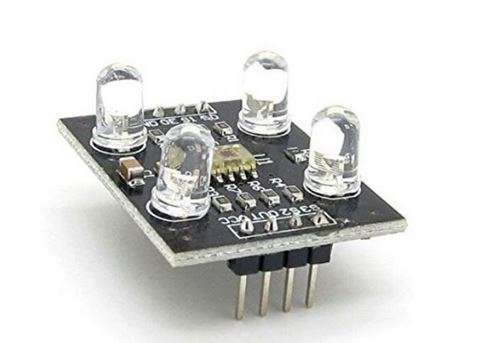

1 x Color Sensor TCS3200 (also known as GY-31)

Pin headers

The TCS230 is a color light-to-frequency converter on single CMOS integrated circuit. The output is a square wave(50% duty cycle) with frequency directly proportional to light intensity (irradiance). The full-scale output frequency can be scaled by one of three preset values via two control input pins. Output enable (OE) places the output in the high-impedance state for multiple-unit sharing of a microcontroller input.

This library has a dependency on the FreqCount library for frequency counting (included in the download). Please read the setup information in the FreqCount header file or its distribution web site, as the type of Arduino that you are running will determine which pin should be used for connecting to the sensor's output pin

Download Schematic

Download Datasheet

Features:

• ^{The TCS3200 is TCS230 upgraded version better}
• ^{Power supply 3-5v}
• ^{Resistance to light interference}
• ^{White LED can be controlled on, off.}
• ^{Can detect non-luminous object color}

^{Locally Stocked. Available for Immediate Shipping.}
