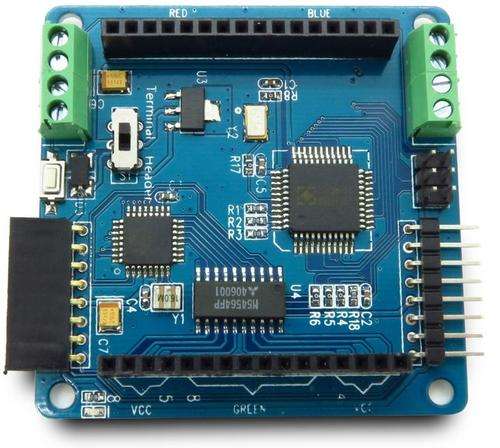

Colorduino RGB LED matrix driver Arduino UNO Based

The Colorduino is a RGB LED matrix driver platform based on the Arduino UNO (ATmega328P).

Colorduino is a magic RGB LED dot-matrix driver compatible with Arduino . Colorduino pairs the M54564 with a single DM163 constant current driver. By using the DM163, Colorduino gains three 8+6-bit channels of hardware PWM control of the LED’s freeing up the MCU from having to implement it in software. This gives the ATmega328 more CPU bandwidth for performing other tasks. Colorduino is easy to cascade by IIC and Power interface.

• 8bits colours support with 6bits correction for each colour in every dots
• Hardware 16MHz PWM support
• Without any external circuits, play and shine
• Dedicated GPIO and ADC interface
• Hardware UART and IIC communication with easy cascading
• 24 constant current channels of 100mA each
• 8 super source driver channels of 500mA each

• 1 Brand New Boxed Colorduino

• Colorduino Datasheet
• DM163 Datasheet
• M54564FP Datasheet
• Demo Code
