IN STOCK - IMMEDIATE SHIPMENT

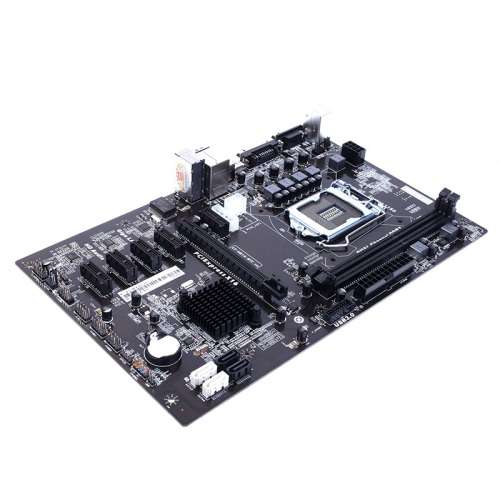

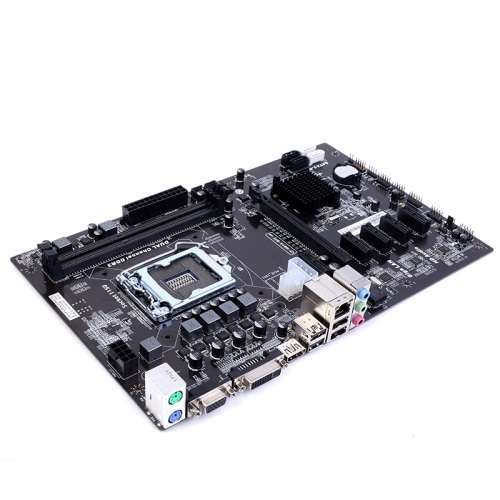

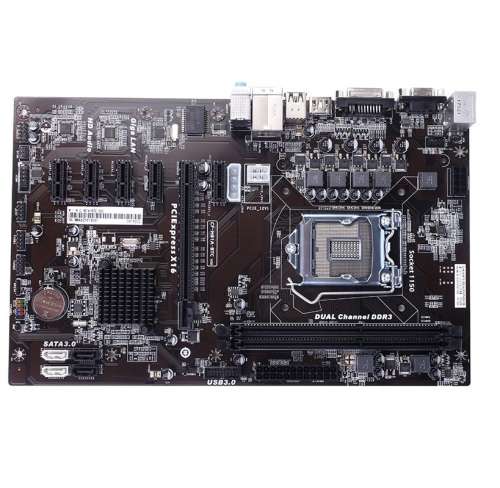

Colorful C. H81A-BTC V20
| Motherboard_Model | C.H81A-BTC V20 |
| Chipset | Intel H81 |
| Processor | support Intel LGA1150 Haswell processors |
| Memory | Dual-Channel 1600/1333/1066MHz support,Offer 2 DIMM slots |
| Graphics | 1 PCI-Express 2.0 x16 slot |

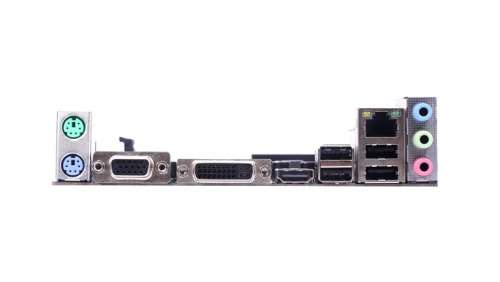

| Board_IO | 2 *PS/2 Mouse/ Keyboard port¿1 x LAN(RJ45) port¿4x USB 2.0/1.1 ports¿6-Channel Audio I/O,1 VGA+DVI+HDMI Port,2x USB connectors support additional 4 USB 2.0/1.1 ports,1x USB3.0 connectors support additional 2 USB 3.0 ports,1x 3-pin Spdif in/out connector,1 |
| Expansion_Slots | 5 PCI-Express 2.0 x1 slots |
| SATA_Ports | 2*SATA2.0&2*SATA3.0 ports |
| BIOS | 64M UEFI |
| Power_Management | support S1¿S3¿S4¿S5 Wake up¿LAN Wake up¿definite time power on¿Automatic power on when Power |
| Hardware_Monitor | CPU Fan speed Controlled¿SYSTEM Fan speed Monitoring,CPU Temperature Monitoring¿System Temperature Monitoring¿and Voltage monitoring |
| LAN | Realtek RTL8111E 1000M LAN,Provides 10/100/1000Mb Ethernet |
| Audio | 6-channel High Definition Audio Codec integrated,HD audio |
| Configuration | 185*295MM,ATX |
| Other_Features | this motherboard is for mining coins, for example, bitcoin, litecoin and so on |
