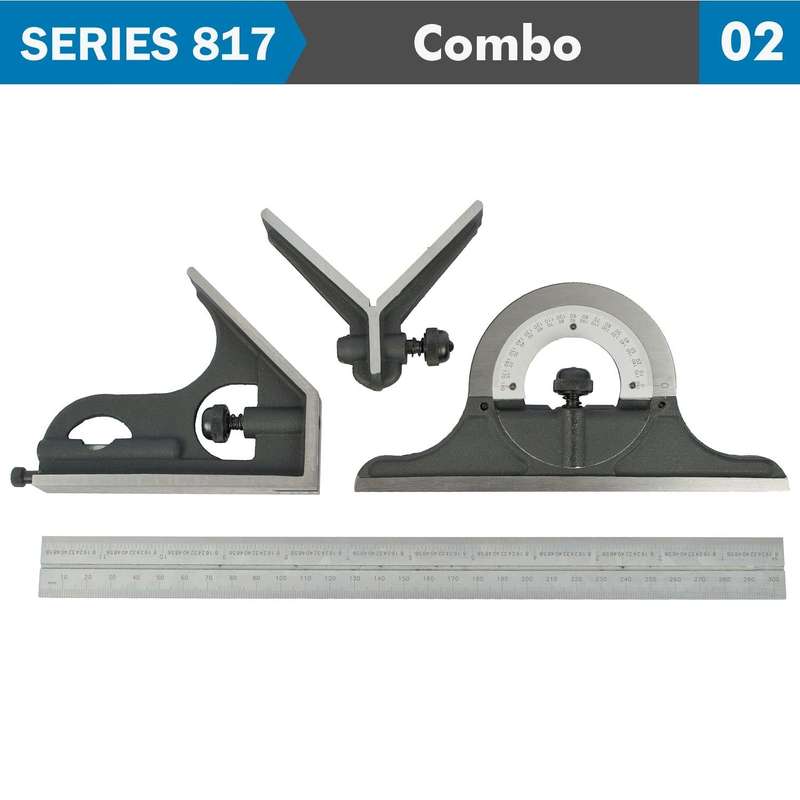

Combination Square Set Protractor

Combination Square Set, A Versatile And Essential Tool Used In Various Trades, Including Carpentry, Metalworking,
And Engineering. It Is Designed To Perform Multiple Functions, Such As Measuring Angles, Checking For
Squareness, And Marking Workpieces. The Combination Square Set Includes A Ruler, A Square Head, A
Protractor Head And A Center Head, All Of Which Can Be Attached To The Ruler To Perform Different Tasks.

•

• Protractor (Made Of Cast Iron), Only For 817 180 02:
•

• Used To Set An Angle Or Angle Measurement, Measuring Range: 0 180&Deg;,
  Accuracy: &Plusmn;20'
•

• Square (Made Of Cast Iron):
•

• Used As 90&Deg; Square Or 45&Deg; Square Accuracy Of 90&Deg; Square: &Plusmn;8', Accuracy
  Of 45&Deg; Square: &Plusmn;10'
•

• Blade (Made Of Stainless Steel):
•

• Used As Rule, Measuring Range: 300mm/12' Front Side Graduation: 0.5mm
  And 1/32' Reverse Side Graduation: 1mm And 1/64'
•

• Used As Rule, Measuring Range: 600mm/24' Front Side Graduation: 0.5mm
  And 1/32' Reverse Side Graduation: 1mm And 1/64'
•

• Center Finder (Made Of Cast Iron), Only For 817 090 13 And 817 180 02:
•

• To Locate Center Of Cylinders With Diameter (ØD): 30 100mm, Accuracy:
  &Plusmn;0.15mm


•
