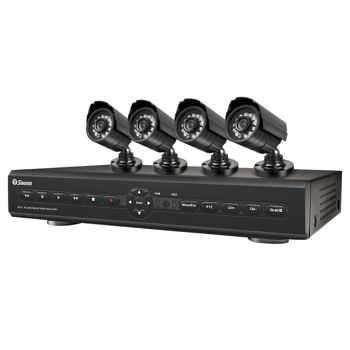

Complete 4 Channel Security Surveillance System
The perfect solution for home and bissiness security. This kit includes, 1 x 4 Channel H.264 surveillance DVR , 4 x CCD Colour Waterproof, day/night, night vision camera's, 1 x 100M RG59 + power cable, 8 BNC connectors and 4 power connectors
CCTV H.264 4 channel D1/CIF network phone surveillance DVR
Features :
1. Adopts the standard Main profile H.264 compression technology,
D1/CIF can be adjusted supports 4ch recording, network transmission, and playback simultaneously
2. Support dual-stream transmission for all channels
3. Support Multiplex operation: live, record, playback, backup, network transmission,
mobile phone surveillance
4. Support backup with USB Flash Disk, Movable hard disk,USB writer, Network
5. Support 1channel. Main output, 1channel. VGA output
6. Support video channel hidden and S.E.Q for single channel
7. Support Digital Zoom and PIP preview
8. Support password watermark function to avoid data modification
9. Support Email alarm
10. Mobile phone surveillance (Win CE/Symbian/iPhone/Blackberry,Android)
11. Support PTZ preset and Cruise Control
12. Support Multi-language OSD
13. Central management software and Networked system management
14. Support mouse, remoter controller, panel operating
Supports up to a 2TB SATA HDD ( No HDD Included)
3G & Internet remote viewing
4 x CCD Colour Waterproof, day/night, night vision, Indoor/Outdoor camera's
Image Sensor: 1/4" Color CCD Sensor
TV System: NTSC,PAL
Effective Pixels: NTSC: 510 (H) x 492 (V),PAL:500X582
Horizontal Resolution: 420 TV-Lines
Scanning System: 2:1 Interlace
Number of IR LEDs: 48
Minimum Illumination: 0.8 Lux/F1.2 (IR on)
Infrared Illumination (Night Vision): Visible up to 40m
Synchronization System Internal Synchronization
S/N Ratio > 48dB
Gamma: 0.45
Lens Mount Board Lens: 3.6 mm
Operating Temperature: -20C ~50C / -5F ~ 120F
Weatherproof: Yes
Power: 12V DC
Video Out: 1.0V p-p 75 O, BNC Connector
Auto Iris: Video / DC
Back Light Comp: Auto
Auto White Balance: Auto
Each camera comes with a mounting bracket and power supply
100 Meter RG59 + Power cable ( For custom cable lengths)
8 x BNC connectors
4 x Power connectors
