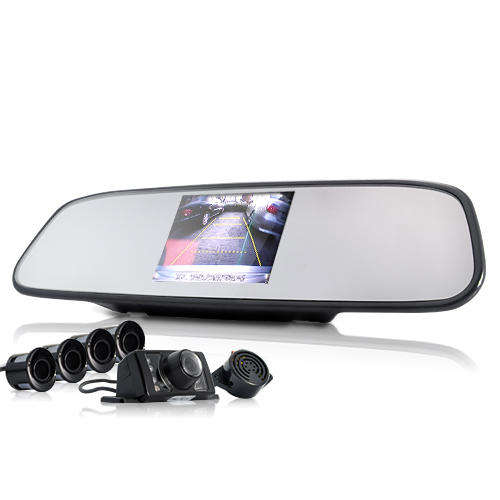

Complete Car Reversing Kit - Rearview Camera + Parking Sensor + Rearview Mirror - C104
Why is this Car Rearview Mirror + Parking Sensor + Rearview Camera so awesome?
This well-designed system comes complete with a high quality 3.5 inch TFT screen and wide angle camera, giving you the confidence and peace of mind to safely position your car when navigating into tight parking spaces, parallel parking or simply reversing.
Additionally, the easy-to-install design and build will also fit in almost any make or model of car and makes for a great car upgrade at a low, affordable price.
But wait, there's even more. Other excellent features include night vision LEDs, which illuminate the area behind you at night and keep you safe and secure. That's right, you can use this Complete Car Reversing Kit night or day!
Manufacturer Specifications
Car Rear View Monitor Specification
Screen: 3.5 Inch TFT LCD
Video Color System: NTSC/PAL (Auto Switch)
Voltage input: DC 12V
Resolution: 320(W)XRGB2X40(H)
Video IN
Rearview Mirror Pinch Clip: Adjustable- 50mm ~ 75mm
Dimensions: 290mm x 74mm x 17mm (L x W x D)
Camera Specification
Image Device: 1/3 Inch CMOS
Color System: NTSC
Horizontal Definition: 420
Angular Field of View: 135 deg
Minimum Illumination: 0.2 LUX night vision via IR lamps
Scan area: NTSC: 4.69x3.45mm
Scan frequency: NTSC 60Hz
White Balance: Auto
S/N Ratio: <50dB
Operation Temperature: -10 ~ +50 deg C
Connection: RCA
Waterproof: YES
Recommended Max Range for Objects: 5 Meters
Camera + Parking Sensor Specification
x4 Parking Sensors + Senor Box
Video IN (For Connecting Camera)
Video OUT (For Connecting Camera and Sensor Information to LCD Screen)
x4 Sensor IN
12V Power OUT (For Powering Camera)
Speaker OUT
Detect and Display Distance: 0.4~2M
Voice Distance Alert from Speaker
Exact Digital Distance Display of Obstacles on LCD Screen (Displayed in CM Increments)
Alarm Mode - 1.6-2.0m: Mute; 1.1-1.5m: 1 HZ (slow); 0.5-1.0m: 3 HZ (general); 0-0.4m: 7HZ (rapid)
Product Notes
Camera is equipped with IR lamps, for night vision
Polarized Monitor For Clear Rear Viewing When Monitor Off
Automatic Monitor/Camera Feed On While Reversing
Automatic Parking Sensor On While Reversing
Package Contents
Mirror Monitor, Rearview Camera, Mainframe, 3 x Power cable, 2 x AV cable, 4 x Sensors, Hole Saw, Speaker, Velcro adhesive, Instructions Sheet - English
Frequently Asked Questions
Will this act as a normal rearview mirror?
Yes!
