Complete Car Reversing Set - Rearview Camera, 4 Parking Sensors, Rearview Mirror - 700HH 2Gen

Complete Car Reversing Set - Rearview Camera, 4 Parking Sensors, Rearview Mirror: Install this great full kit in your vehicle to reverse and park with total confidence!

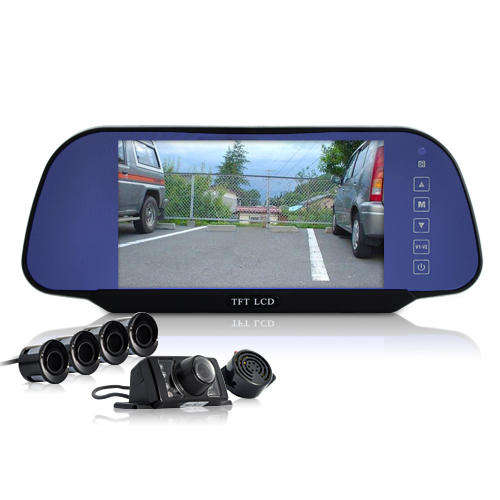

This Car Reversing Set has it all to help you reverse in narrow alleys, underground parking lots and other difficult areas with maximum safety. You, your passengers, and even pedestrians nearby will instantly feel safer with this complete kit. Included inside is a weatherproof high resolution rear camera (which delivers clear, colorful images day and night), 4 ultra sensitive sonar distance detectors, a 7 inch rearview screen monitor with touch buttons, and a handy senor box to connect everything together. This kit really is the perfect aid to detect obstacles and people behind your vehicle, even in the most treacherous blind spots!

Designed to provide the most useful service for drivers, the ingenious set also combines several excellent features such as voice warnings (from the included speaker) when the car gets too close to something, a real time distance display from the back of the car to anything detected within 2 meters on the rearview screen, auto powering and viewing of both sensors and camera when the car goes in reverse, and much more. In other words, nothing will be missed!

At a Glance...

• Complete Car Reversing Set
• 4 ultra sensitive parking sensors
• Weatherproof high quality backup camera with night vision
• 7 inch TFT LCD as rearview mirror
• Voice warnings, distance display in real time, auto switch while reversing
• Easy, convenient and safe reversing and parking!
• No more money wasted on repairs!

Manufacturer Specifications

• Main Function: Car Reversing Set
• Color: Black
• Screen: 7 inch TFT LCD
• Video Color System: NTSC/PAL (Auto Switch)
• Aspect Ratio: 4:3, 16:9
• Video Output Level: 1 Vp-p 75 ohm
• Resolution: 800 x 480
• Rearview Mirror Pinch Clip: Adjustable 60-90mm
• Screen Dimensions: 250 x 105 x 25 (mm)
• Camera Specification
  - Image Device: 1/4 Inch CMOS
  - Color System: NTSC, PAL
  - Horizontal Definition: 420
  - Angular Field of View: 75 deg
  - Minimum Illumination: 0.0 LUX night vision via IR lamps
  - Scan Area: 5.18 x 4.19mm (PAL), 4.69 x 3.45mm (NTSC)
  - Scan Frequency: 50Hz (PAL), 60Hz (NTSC)
  - White Balance: Auto
  - S/N Ratio: <50dB
  - Operation Temperature: -10 to 50 deg C
  - Connection: RCA
  - Waterproof: Yes
  - Recommended Max Range for Objects: 5M
• Camera + Parking Sensor Specification
  - x4 Parking Sensors + Senor Box
  - Video IN (For Connecting Camera)
  - Video OUT (For Connecting Camera and Sensor Information to LCD Screen)
  - x4 Sensor IN
  - 12V Power OUT (For Powering Camera)
  - Speaker OUT
  - Detect and Display Distance: 0 .4 to 2M
  - Voice Distance Alert from Speaker
  - Exact Digital Distance Display of Obstacles on LCD Screen (Displayed in CM Increments)
  - Alarm Mode - Voice Warnings at 1.2, 0.9, 0.7M
  - Alarm Mode - Continual Stop Warning at <0.5M

Product Notes

• Camera is equipped with IR lamps for night vision.
• Rearview camera and parking sensors automatically turn ON while reversing.

Package Contents

• Mirror Monitor
• Camera
• 4 Distance Detectors
• Distance Measure Main Unit
• Speaker
• Remote Control
• Long Video Extension Cable
• Short Video Extension Cable
• Power Cable for Mirror Monitor
• Power Cable
• Battery Cables
• Hole Saw
• Screw
• Velcro Adhesive
• User Manual

Frequently Asked Questions

• Does this work also as a normal rearview mirror?
  Yes!
