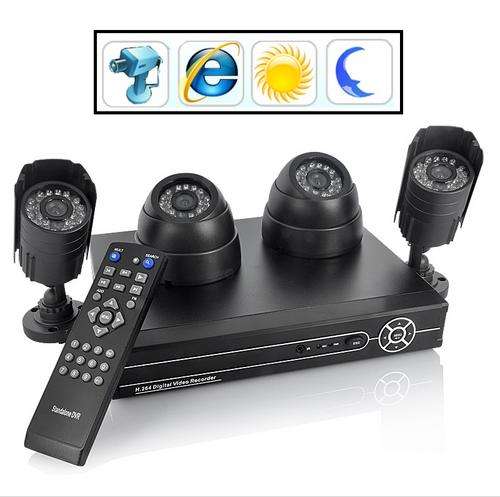

Complete DVR Surveillance System with 2x Indoor + 2x Outdoor Cameras (H.264)

More convenient than ever, this Complete DVR Surveillance System features 2x indoor cameras and 2x outdoor cameras so you can keep an eye on everything inside, outside, and around your home or business!

State-of-the-Art DVR
This incredible and extremely versatile DVR is your professional and high performance audio and video solution for surveillance. Use this DVR at home, stores, internet bars, small offices, and any other place you are worried about. You can connect the DVR to your monitor and watch the surveillance video (you can choose any camera or have 4 of them on screen simultaneously!) on site or program the unit to record with motion detection. It even comes with a full featured remote control.

Hi-Tech Indoor + Outdoor Cameras
This Complete DVR Surveillance System comes with 2x indoor cameras and 2x outdoor cameras, giving you the convenience and versatility you need from a true security system. The indoor cameras are compact and portable enough to be installed in any crevice of the room, while the outdoor cameras are weatherproof, highly durable, and designed to stand up against both blunt force and force of nature. All of the cameras also include IR nightvision LED lights, which automatically activate at night so you're protected 24/7.

At a Glance...

• H.264 video compression
• 2x outdoor cameras and 2x indoor cameras
• Self-recovery system
• Motion alarm and video loss alarm
• Multiple recording mode
• Mobile phone support

Manufacturer Specifications

• DVR
  Video System: NTSC / PAL
  Operation System: Linux
  Video Input / Output:BNC 4-channel inputs / 1-channel outputs
  Audio Compression: 8kHz*16bit ADPCM
  Audio Input / Output: RCA 1-channel inputs / 1-channel outputs
  Display Frame Rate:NTSC: 120 fps / PAL: 100 fps
  Playback Resolution:
  -PAL: CIF(352x288), HD1(704x288), D1(704x576)
  -NTSC: CIF(352x240), HD1(704x240), D1(704x480)
  Total Recording Frame Rate
  -PAL: 25fps@D1, 50fps@HD1, 100fps@CIF
  -NTSC: 30fps@D1, 60fps@HD1, 120fps@CIF
  Recording Mode: Always / schedule / motion detection / sensor triggered
  Recording Pack Time: 15/30/45/60mins selectable
  HDD Interface: Support SATA HDD & USB disk (not included)
  Network Interface: RJ45, 10M/100M
  Network Protocol: Support TCP/IP, UDP, DHCP, DNNS, PPPoE
  Network Function: Support to live view with IE & with Mobile phone
  USB 2.0: USB mouse, USB disk (backup)
  Playback Mode: Normal play, fast forward, fast rewind, frame by frame
  PTZ: None
  Backup: USB flash disk, USB disk, USB CD/DVD-RW & Network
  PTZ Control: Built-in RS485, support PELCO-P & PELCO-D
  Alarm Mode: Motion, Sensor, video loss, HDD error, HDD full
  Power Supply: DC 12V/4A (power adaptor included)
  Working Temperature: -10°C to +40°C
  Power Consumption: 10~15W
  Supports Symbian/Windows Mobile/iPhone/Blackberry/Android viewing
• Camera
  Image Sensor: 1/3“ CMOS
  Lens: 6mm F:2.0
  Video System: PAL
  Effective Pixels: PAL:500(H) x 582(V); CCIR:752(H) x 582(v); EIA:768(H) x 494(V)
  Resolution (Horizontal): 400 TVL
  Weatherproof outdoor cameras: IP66 (indoor dome camera not weatherproof)
  Emitter Wave Length of LED: 850nm
  IR Series Distance: 10 meters (IR LEDs ON)
  IR Power ON: CDS automatic control
  White Balance: Auto
  Viewing angle: 60 degrees
  Back Light Compensation: Auto
  Min. Illumination: 0.2Lux @ F2.0, 0 Lux (IR LED ON at night)
  Electronic Shutter: 1/50 (1/60) ~ 100,000 Sec.
  S/N Ratio: More than 48dB (AGC OFF)
  Power Consumption: Less than 3W
  Synchronization: Internal Sync
  Gamma Correction: 0.45
  Video Output: 1 Vp-p @ 75O
  I/O Port: Video (BNC Jack) / Power (DC Jack)
  Power Supply: DC12V/150mA
  Operating Temperature: -10 ~ 80°C

Package Contents

• DVR
• Power Adapter Cable
• Power Adapter
• Power and BNC Cable
• 2x User Manual
• CD
• 5 to 1 Power Splitter
• 2x Bags of Screws and Mounts
• Mouse
• Remote Control
• 2x Indoor Cameras
• 2x Outdoor Cameras
