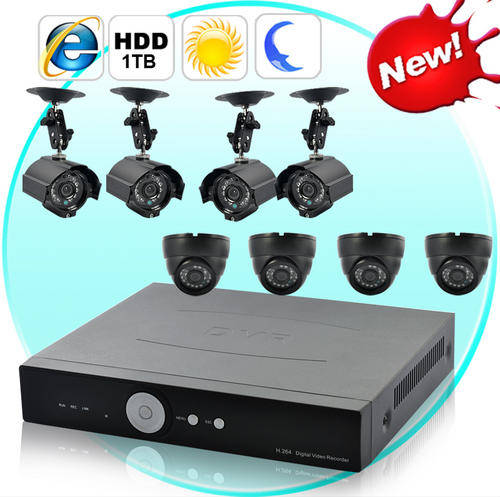

Complete Surveillance Kit - H264 DVR + 4 Outdoor Weatherproof Camera and 4 Indoor Camera + 1TB HDD

Complete Surveillance Kit - H264 DVR + 4 Outdoor Weatherproof Camera and 4 Indoor Camera + 1TB HDD

Surveillance kit complete with 8 Night Vision Security Cameras and 1TB hard drive for complete outdoor and indoor coverage for your home or business. This is the ultimate security camera kit to create your own safety zone. It contains everything you need to setup a CCTV security system at your home or office and it even has internet connectivity for remote access.

Sophisticated DVR with Internet Connectivity: This incredible and versatile DVR is your professional and high performance audio and video solution for surveillance. Use it at home, stores, internet bars, small offices, and any other place you are worried about. You can connect the DVR to your monitor and watch the surveillance video (you can choose any camera or have 8 of them on screen simultaneously!) on site or program the unit to record with motion detection. It can even connect to internet for you to view and record while you are away from home.

4 Outdoor + 4 Indoor Cameras for Complete Coverage: These amazing Surveillance cameras have high quality image and wide viewing angle. With aircraft grade aluminum construction and sliding hood, the outdoor cameras are designed to stand up against anything Mother Nature can throw at it. The intelligent design light sensor in the security cameras will automatically turn on the 12 infrared (IR) night vision LED's when darkness arrives. This allows the camera to record crisp images during the day or night, giving your home or business the protection it needs 24 hours a day. That is a crucial step in ensuring your property is properly secured.

At a Glance...

• 1/3 Sony CCD 420TVL Lens with 12 IR LED
• Real time live display up to 8 cameras
• Automatic night vision switch
• Motion Detecting, Video Loss
• Network connection with IE browser view
• User-friendly GUI, Easy to operate without manuals.



Manufacturer Specifications

• DVR SPECIFICATIONS
  - Operating system: Embedded Linux
  - Video recording standard: H.264, ADPCM
  - Video display: Single camera or four/eight split screen
  - Hard Drive: Support one 2TB SATA HDD (1TB HDD included)
  - Video systems: PAL/NTSC (Auto)
  - Live Video Resolution: PAL: 704x576 NTSC: 704x480
  - Video input (BNC): 8CH BNC input (composite video signal 1Vp-p 75ΩBNC)
  - Video Output ï¼ÂˆBNCï¼Â‰: 1CH BNC output/1CH VGA
  - Audio Input/output: 1CH audio input, 1CH audio output (RCA)
  - PTZ function support: YES
  - Motion detection support: YES
  - Network function support: YES
  - RS485 port: 1 (PTZ control)
  - Support VGA Interface: Yes, VGA output
  - Power Source: DC 12V 4A
  - RJ-45 network adapter: 1
  - USB 2.0 ports: 2 (mouse, keyboard, flash drive, external HDD)
  - Menu languages: English, Simplified Chinese, Portuguese, Spanish, Turkish, French, German, Italian, Russian, Thai, Polish, Hebrew
• IP CAMERA SPECIFICATIONS
  - Security Camera Type: Weatherproof Camera
  - Weatherproof: IP66 (Outdoor IP Cameras)
  - Image sensors: Premium 1/3 inch color SONY CCD (Weatherproof)
  - TV Lines: 420TV line
  - Color System: PAL
  - Infrared Sensor: 12 IR LED
  - Viewing Angle: 45 degree
  - Minimum Illumination: 01 Lux
  - Cable Length: 18 M
• NETWORK SPECIFICATIONS:
  - Network protocol: TCP/IP, UDP, DHCP, DNS, PPPOE, DDNS (supply BUILT-IN DDNS domain name)
  - Connection: RJ-45 Port (10/100M)
  - IP address: Static / DHCP
  - Remote browsing: Internet Explorer
  - Viewing Option: Single/8ch Simultaneous
  - Remote capture: Image / Video
  - Capture format: H.264 MP4
• Certification: CE, FCC, RoHS

Product Notes

• Remote recording and snapshot control via Internet
• Alarm trigger events include Motion Detection, Sensor Triggered, Video Loss, HDD Error You can easily change the BNC connection to an RCA AV type with a simple BNC to RCA coupler adapter.
• Network video surveillance is through Internet Explorer only. You will need to turn on the Active X control for the browser to download a small Active X component to view the live video. This DVR unit is compatible with all BNC connector security camera types.

Package Contents

• Digital Video Recorder unit
• Outdoor Cameras x4
• Indoor Dome Cameras x4
• Power connectors
• 18 meter BNC Cable x8
• 12V/4A Power Supply x2
• Remote Control
• Mouse
• Power Connector
• User Manual - English
