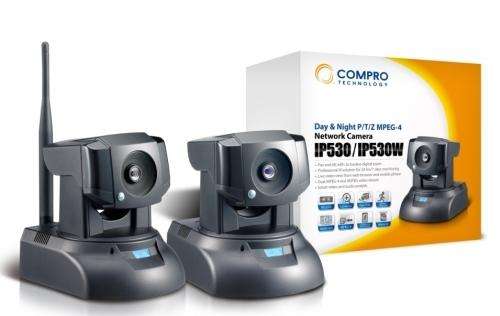

Unit was used as a test unit for a Software Project - It was never used in production. Sold with it's original packaging.
Image Sensor 1/3" CMOS Megapixel sensor Lens Angle of View 60° horizontal Focusing Range 0.5m ~ INF Pan Range -170° ~ +170° total of 340 degree Tilt Range -10° ~ +90° total of 100 degree Max Speed Pan 45°/Sec., Tilt 35°/Sec. Zoom 2x lossless Min Illumination Shutter Time 1/5 ~ 1/16000 sec Video Compression Resolutions 160x120, 320 x 240, 640 x 480 Frame Rate Up to 30 frames at 640 x 480 Video Streaming Dual MJPEG or MPEG-4 video streams Image Setting Audio Communication Two-way audio with built-in MIC Audio Compression G.711 PCM 64Kbit/sec Audio Input / Output MIC input / Audio out Security User ID / Password Protection Wireless Network (IP530W) Supported Protocols TCP/IP, HTTP, UDP, FTP, ICMP, ARP, DHCP, NTP, DNS, DDNS (iDDNS), DynDNS, PPPoE, UPnP, RTP, RTSP, RTCP, SMTP, IGMP, 3GPP, IPv4, 802.1x ComproView Internet Explorer (ActiveX) Support Devices MJEPG Mode Viewing of camera image via phone browsers 3GPP Mode Viewing of camera image via 3G phones (3GPP Streaming) Operating conditions 5 °C ~ 40 °C Power Supply DC 12V/2A Dimensions 105 x 125.5 x 128.6 mm (including bracket)Video Audio
(S/N ratio 58 dB, 50-10000hz ) and speaker (660mv)Networking Firmware Software Web Browser Mobile Phone General
