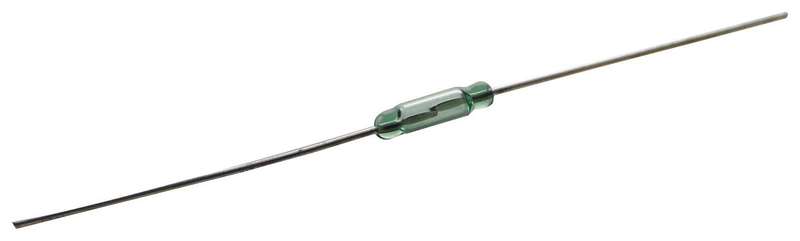

Comus (RI-70GP0715) Reed Switch, RI-70, SPST-NO, 500 mA, 170 V, 10 W

Product InformationProduct Range: RI-70Contact Configuration: SPST-NOSwitch Mounting: -Contact Current Max: 500mASwitching Voltage Max: 170VSwitching Power Max: 10WContact Resistance Max: 0.15ohmOperate AT Min: 7ATOperate AT Max: 15ATProduct OverviewThe RI-70GP0715 is a single-pole single-throw (SPST) Ultra-miniature Dry ReedSwitch hermetically sealed in a gas-filled glass envelope with gold, sputteredruthenium NO contact. The RI-70 series switch is having normally open contactsand containing two magnetically actuated reeds. The switch is of thedouble-ended type and may be actuated by an electromagnet, a permanent magnet ora combination of both.Superior glass-to-metal seal and blade alignmentWithstand soldering heat in accordance with IEC 68-2-20Ideal for ATE switchingExcellent life expectancy and reliabilityApplicationsSensing & Instrumentation, Industrial
