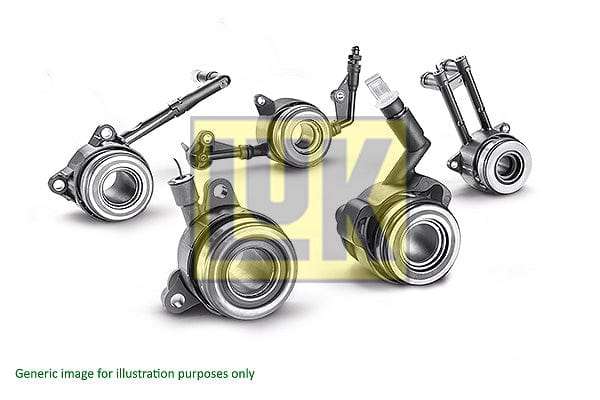

Concentric Slave Cylinder Luk Ford Ranger Transit & Mazda BT-50 – 510 0235 12

Vehicle Fitment & Part Details

Luk concentric slave cylinder for the Ford Ranger (TKE) 2.2/3.2 TDCi (2011), Ford Transit 2.4/3.2 TDCi (20042014), Land Rover Defender (L316), and Mazda BT-50 2.2 MZ-CD (2012), cross-referencing OE 4C117C559AH. The concentric slave cylinder is a hydraulic clutch release bearing mounted inside the bell housing that actuates the clutch when the pedal is pressed. Confirm compatibility by matching the listed fitment details, any OEM reference numbers supplied, and VIN/engine/chassis information where variants exist.

Key Details

SKU

510 0235 12

Component

Concentric Slave Cylinder

Brand

LUK

Primary Fitment

Ford Ranger (TKE) 2.2/3.2 TDCi (2011)

Key Benefits

• Cross-references 20 Ford OEM part numbers including 4C117C559AH, JB3R7A564AA, and JB3R7A564AB verify against your original part before ordering.
• LUK-branded concentric slave cylinder LUK is a recognised OE supplier of clutch hydraulic components.

OEM Reference Numbers

• Ford: 4C117C559AA, 4C117C559AB, 4C117C559AC, 4C117C559AD, 4C117C559AE, 4C117C559AF, 4C117C559AG, 4C117C559AH
• Ford: JB3R7A564AA, JB3R7A564AB
• Ford: 1468026, 1512917, 1675978, 1732558, 1775485, 1824839, 2019956, 2214499, 2617327, 4543504

Vehicle Fitment

Includes 33 supplied applications.

Fitment Notes

• Always match OEM reference number(s) and vehicle details before ordering. Confirm exact fitment using VIN, engine code, or chassis number if multiple variants exist.
• Ford Ranger (TKE) applications cover 2.0 EcoBlue, 2.2 TDCi, and 3.2 TDCi engine variants from 2011 onward.
• Ford Transit applications cover Bus, Van, and Platform/Chassis body types with 2.4 TDCi and 3.2 TDCi engines (20042014).
• Land Rover Defender (L316) fitment covers Cabrio, Station Wagon, Pick Up, and Platform/Chassis variants.

Installation / Use / Maintenance Tips

• The concentric slave cylinder is located inside the bell housing gearbox removal is required for replacement.
• Bleed the clutch hydraulic system thoroughly after installation to remove all air from the line.
• Inspect the clutch disc, pressure plate, and release bearing at the same time replacing during gearbox-out service avoids repeat labour.
• Use only the recommended clutch fluid type specified in the vehicle workshop manual.

Common Questions

Will this concentric slave cylinder fit my Ford Ranger?
This part (510 0235 12) is listed for the fitments shown on this page. Confirm by matching the fitment details and verifying VIN/engine/chassis information where variants exist.

What OEM part numbers does this cross-reference?
Cross-reference numbers are listed in the OEM Reference Numbers section above. Match at least one to ...
