Concrete Vibrator Vibration Motor 15W/30W 220V 3000rpm Single Phase Aluminum/Motor Spe... (SIZE: 2#)

SELECTED OPTION:
SIZE: 2#

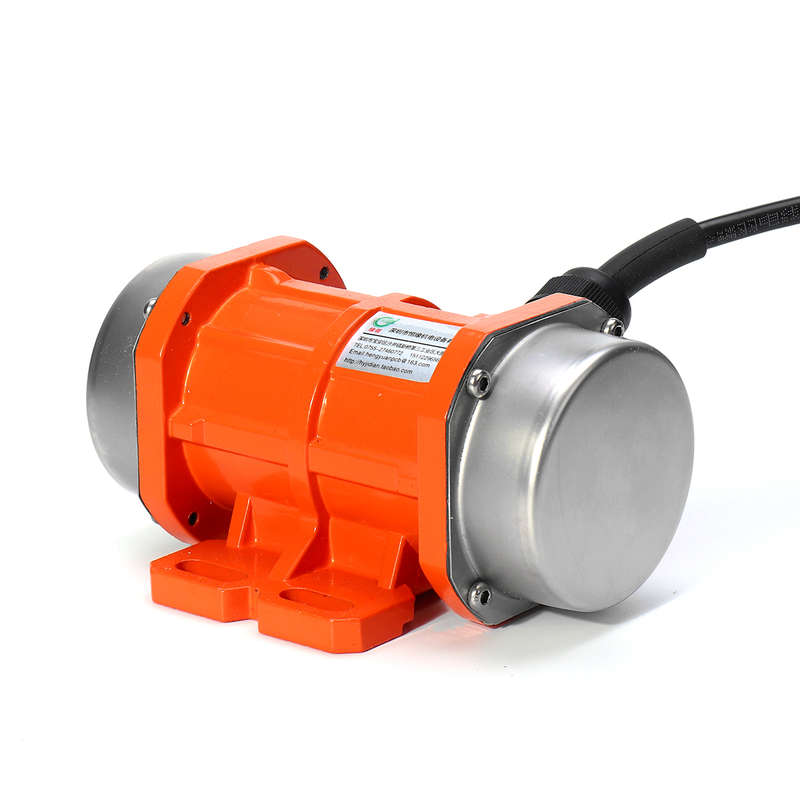

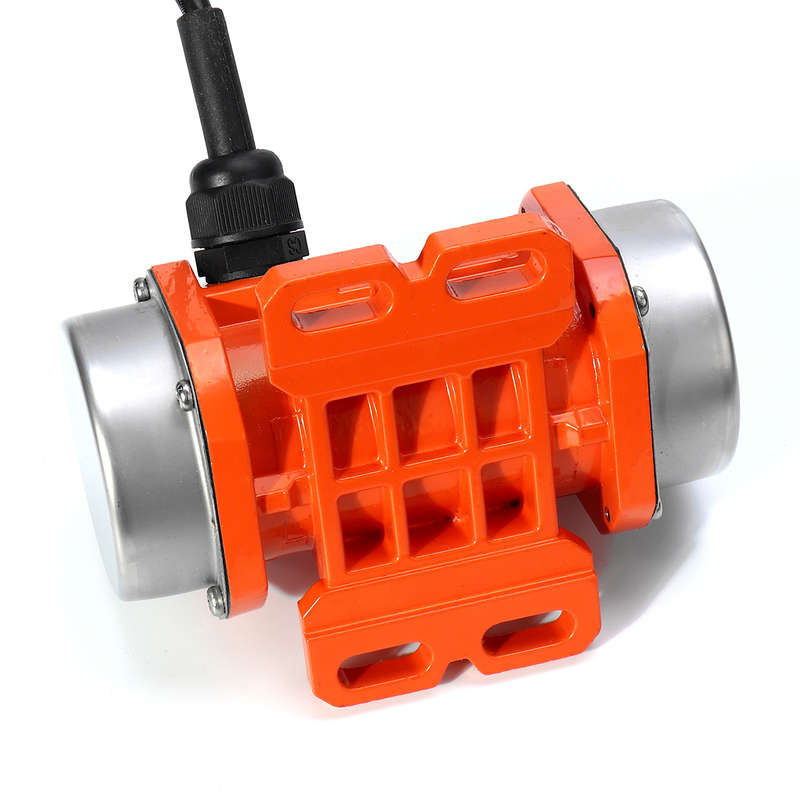

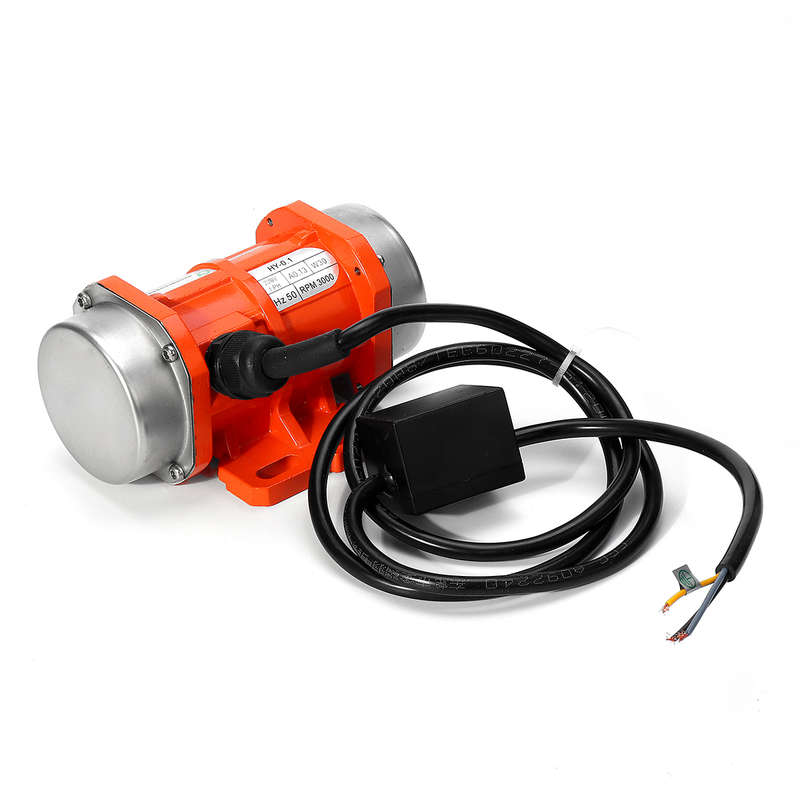

Concrete Vibrator Vibration Motor 15W/30W 220V 3000rpm Single Phase Aluminum Alloy for Shaker Table Vibrating

Technical Specifications:

#1: 220V 15W Motor

#2: 220V 30W Motor

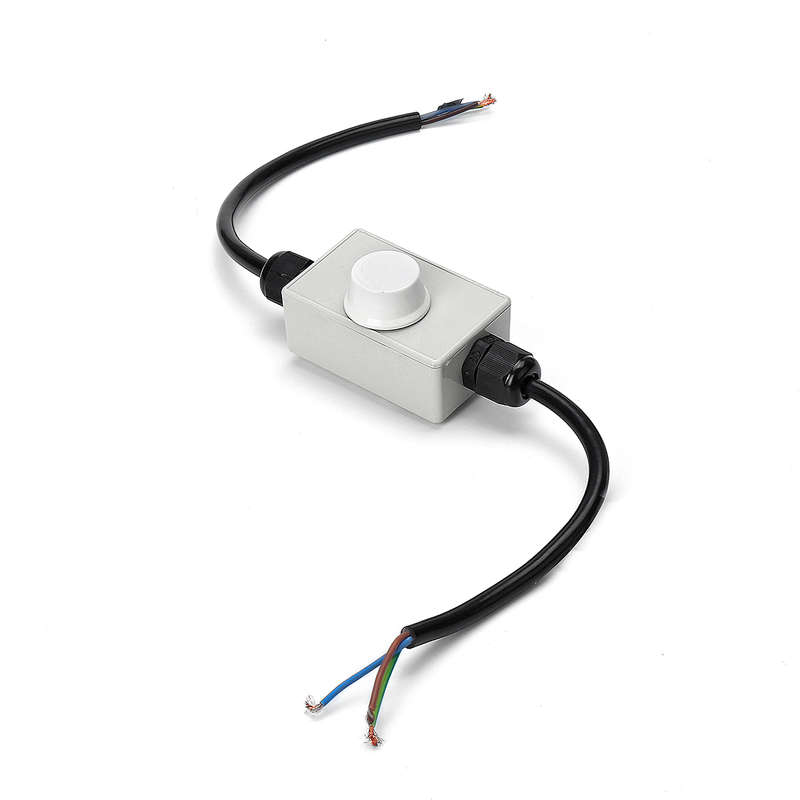

#3: Speed Controller

Color: Orange
Material: Aluminium alloy
- 220V 15W Vibrating Motor - Single Phase
Voltage: 220V
Power: 15W
Current: 0.10A
Force: 10KG
Frequency: 2940Hz (50Hz); 3450Hz (60Hz)
Size: 145x110x75MM (5.7x4.3x3in)

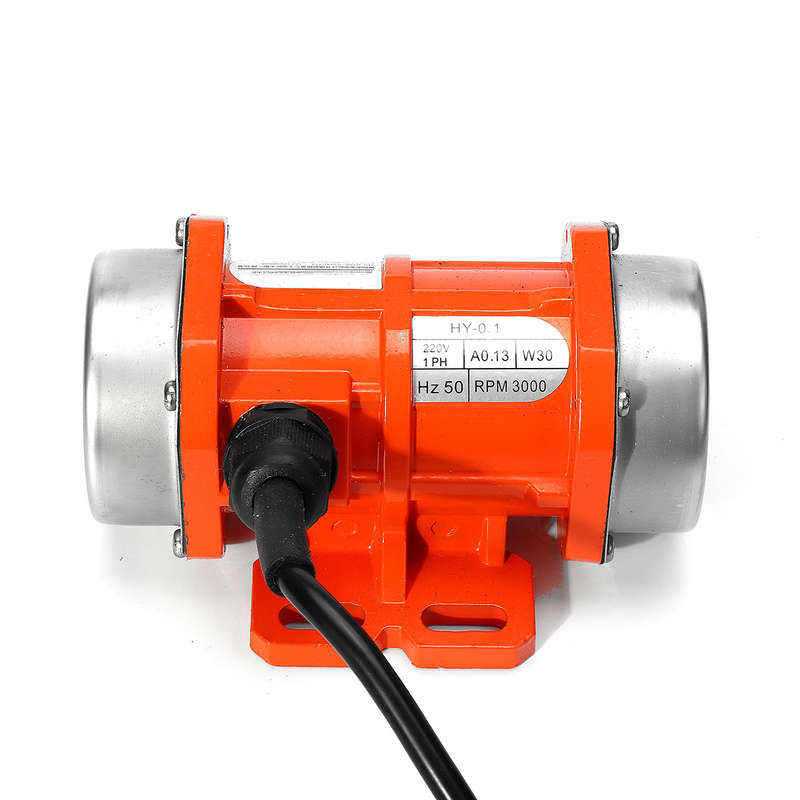

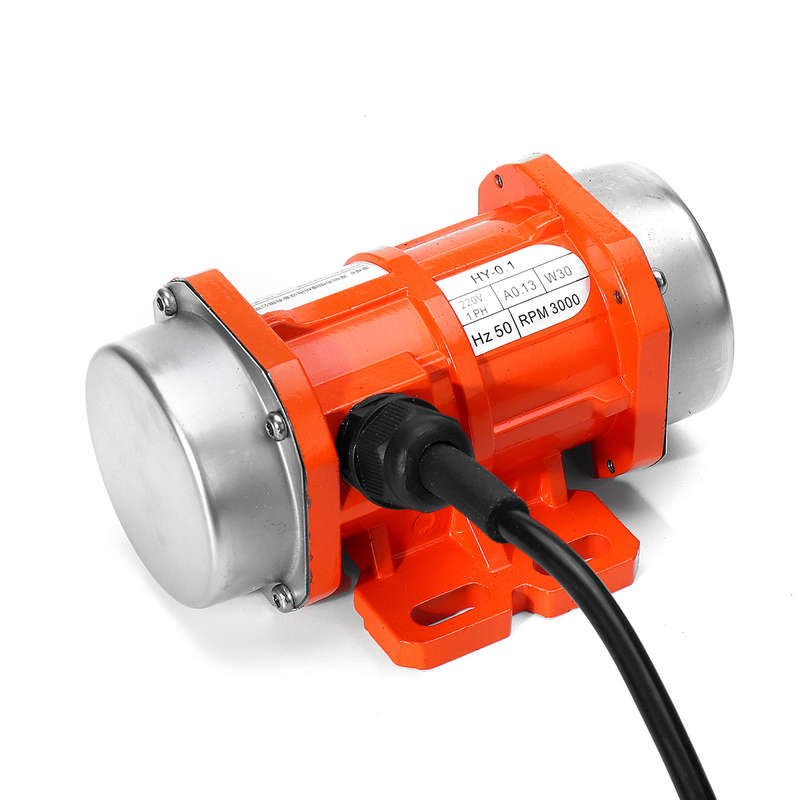

- 220V 30W Vibrating Motor - Single Phase
Voltage: 220V
Power: 30W
Current: 0.13A
Force: 20KG
Frequency: 2940Hz (50Hz); 3450Hz (60Hz)
Size: 145x110x75MM (5.7x4.3x3in)

Features:
Adjustable Eccentricity Block: Adjust the angle of eccentricity block, can stepless adjust the excitation force, meet all kinds of requirements.
Vibrator Motor: AC Vibration Motor 15/30W Industrial Vibrating Asynchronous Vibrator 220V 2940RPM.
Description: Motor adopt of imported bearings, low noise, smooth operation, long service life. High temperature resistance pure copper enameled wire, all copper winding, stator vacuum dip paint, guarantee insulation grade
Features: Aluminum alloy shell, light quality, fast heat dissipation, fast temperature rise. The motor machine shell is precision casting, with o-ring seal on the edge, fully closed structure design, with dustproof and moisture-proof function.
Useful: Motor anti vibration special power cable protection cover to prevent long - time cable vibration damage. Apply in Mining, metallurgy, coal, electricity, construction, chemicals, medical equipment, food machinery, etc.

Package Contents:

#1:

Including 1Pcs x 220V 15W Motor

#2:

Including 1Pcs220V 30W Motor

#3:

Including 1PcsSpeed Controller
