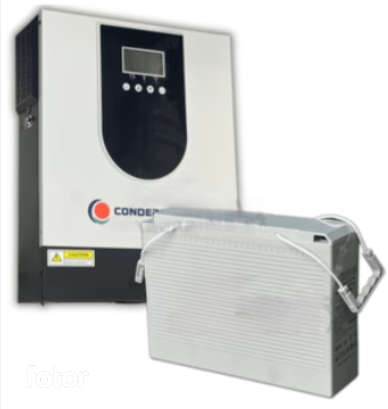

CONDERENERGY 2KVA MPPT PURE SINE WAVE LOAD SHEDDING COMBO WATT 1X 200AH GEL BATTERY
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product information
HYBRID INVERTER SOLAR KIT
2KVA MPPT PURE SINE WAVE LOAD SHEDDING COMBO WATT 1X 200AH GEL BATTERY BACK-UP SYSTEM
Overcome load shedding with this premium hybrid inverter load-shedding Combo
Hybrid Inverter Specifications:
Hybrid Inverter 2KVA 1600 Watt MPPT 12V Conderenergy
This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Features
Pure sine wave inverter
Configurable input voltage range for home appliances and personal computers via LCD setting
Configurable battery charging current based on applications via LCD setting
Configurable AC/Solar Charger priority via LCD setting
Compatible to mains voltage or generator power
Auto restart while AC is recovering
Overload/ Over temperature/ short circuit protection
Smart battery charger design for optimized battery performance
Cold start function
WIFI/GPRS (Optional)
Can connect to lithium battery
3.2 Basic System Architecture
The following illustration shows basic application for this inverter/charger. It also includes following devices to have a complete running system:
Generator or Utility.
PV modules
Add a Wifi Dongle:
https://solarwarehousesa.com/products/sun-solar-hybrid-inverter-wifi-dongle-for-s-21-series-s-22-series?_pos=1&_sid=beffaf967&_ss=r
L x 390mm H x 100mm W x 290mm
5kg
(PLEASE NOTE THE FANS ARE ALWAYS ON)
What's in the box
1 x Hybrid Solar Inverter
1 x Manual
Battery Size:
Dimensions : 565mm (L) X 120mm (W) X 330mm(H)
34kg
Combo includes:
- 1x 12V 200AH Deep Cycle Gel Battery (200-300 cycles)
- 1x 2KVA MPPT Pure Sine Wave Conderenergy Inverter (1 Years Repair Warranty)
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
(Please note this only applies to gel batteries and not lithium batteries)
- The standard batteries in this kit are rated to last 200-300 cycles (load shedding).
- During occasional load shedding, at stages 1-2, the average life span is 2 years.
- Unfortunately, during constant load shedding, at stages 2 - 6, these cycles will be depleted within a few months.
- The batteries will also be further degraded due to insufficient time to recharge fully in between load-shedding cycles.
- As soon as the batteries stop lasting, unfortunately, the warranty becomes void, as this means that the batteries have depleted their cycles and reached the end of their life
- 200-300 cycles (deep cycle batteries) in mind when running the system.
- Therefore, during constant stages 2-6, we highly recommend keeping the inverter's power switch OFF. Then, only switch it on when the need for backup power is crucial.
- This will preserve the longevity of the batteries (please keep it plugged into the wall permanently to keep it charged).
