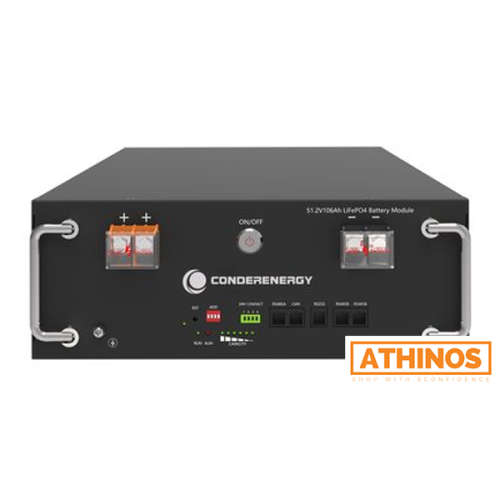

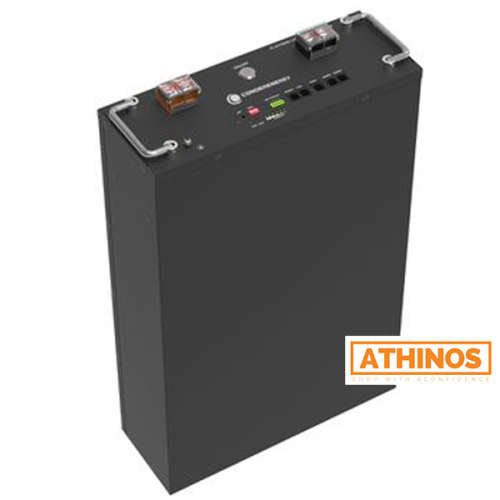

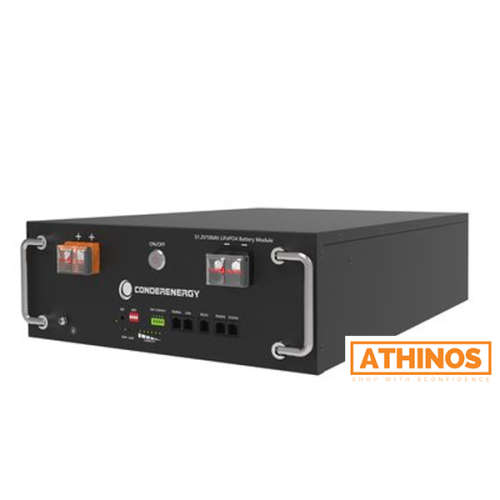

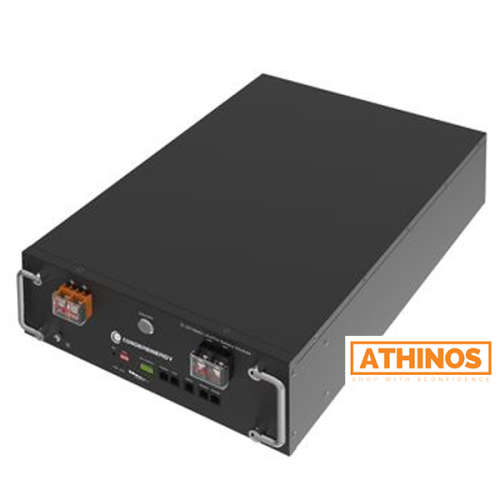

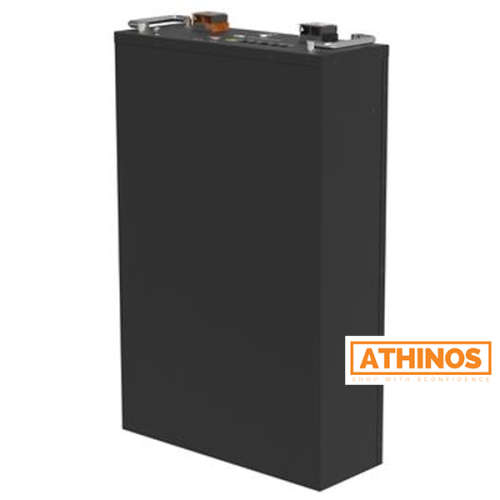

The CONDERENERGY 51.2V 100Ah A-Grade Lithium Battery is manufactured by a world-leading manufacturer using A-Grade Battery cells. This allows superior performance, capacity, and reliability. Using state of high power A-Grade cell technology, the Lithium Battery is designed for environmentally sensitive areas and is committed to recycling.
The CONDERENERGY 51.2V 100Ah A-Grade Lithium Battery is widely used in industrial, residential, commercial, and private applications. The maintenance-free construction and advanced design features make the Lithium Battery the definitive choice for a wide variety of markets - Like solar and renewable energy storage for electric vehicles, industrial equipment, medical equipment, telecommunications, TVs, and UPS systems.
Features:
- A-Grade Cell Technology
- Maintenance-free
- Environmental Friendly
- Wide Variety of Markets
- Renewable Energy
- 7 Protection Features
- Built-in Battery Management System
- Mountable
- 5-year Warranty
Battery Specifications:
- Battery Type-Chemistry: LiFePO4
- Nominal Voltage: 51.2V
- Nominal Capacity: 100Ah
- Energy Density: 5120Wh
- Terminal Type: M6
- Terminal Torque: 8.5NM
- Case Material: Metal
- BMS Built-in: Yes
- Internal Resistance: - Efficiency - Round Trip: >99.5%
- Self Discharge per Month: - Max Parallel Connectors: 16Pcs
- Series Connections: Not Allowed
- Cycle Life(0.2C, 25 C @ 80% DOD): >2000 Cycles
- Discharge Temperature: -20 C to 65 C
- Charge Temperature: 0 C to 45 C
- Storage Temperature: -10 C to 30 C
- Voltage Window: 44.8 - 57.6V
- Recommended Charge Voltage: 57.6 0.20V
- Max Charge Voltage: 58.4 0.20V
- Recommended Charge Current: 50A
- Max Continuous Charge Current: 100A
- Recommended Discharge Voltage: 44.8 0.20V
- Max Discharging Voltage: 43.2 0.20V
- Max Continuous Discharge Current: 100A
- Peak Discharge Current: 120A (5s 2s)
- Dimensions: L 566 x W 402 x H135 mm
- Weight: 47Kg
BMS Characteristics:
- Primary Charging Protection: (Current: 80A) (Delay Time:1000ms)
- Secondary Charging Protection: (Current: 100A) (Delay Time:500ms)
- Primary Discharging Protection: (Current: 110A) (Delay Time: 5s 2s)
- Secondary Discharging Protection: (Current: 120A) (Delay Time: 5s 2s)
- Over Charge Voltage Protection: (Voltage: 58.4V) (Delay Time:500ms)
- Over Discharge Voltage Protection: (Voltage: 43.2V) (Delay Time:500ms)
- Temperature Protection: (Temperature: 95 C) (Recover: 85 C)
- Communication Port: Major RS485,CAN/Dryport
What's in the box
1 x CONDERENERGY 51.2Ah A-Grade Lithium Battery
1 x Red (Positive) Battery Cable
1 x Black (Negative) Battery Cable
1 x Ethernet cable
1 x Manual
