Conderenergy 6.2kva Inverter & 5.09kw Svolt Lithium battery with 10 x 450w solar panels & install...

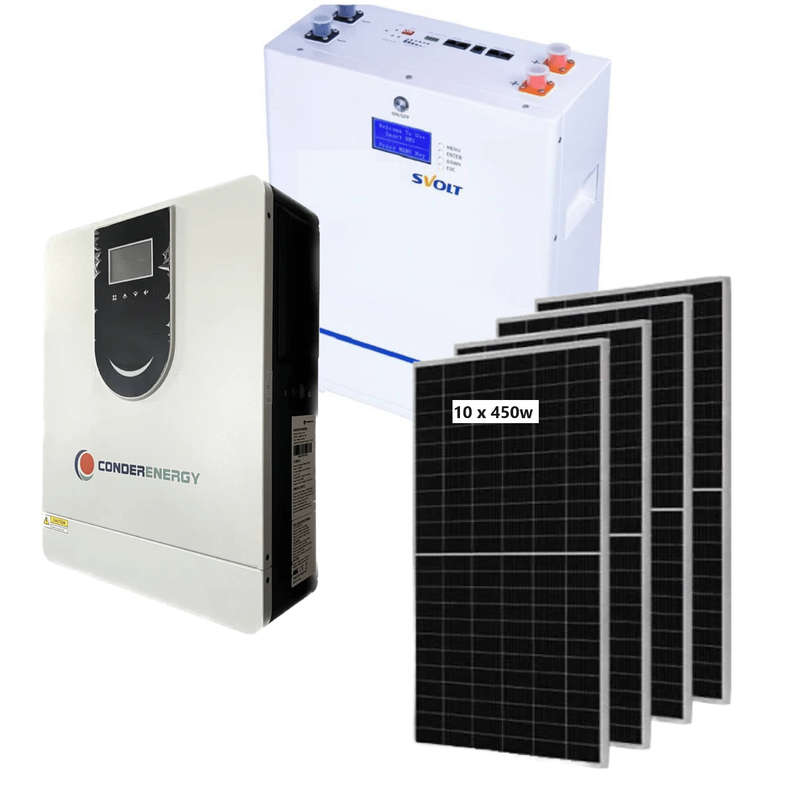

6.2KVA Conderenergy Inverter with 5.09kw SVolt Lithium battery plus 10 x 450W solar panels & installation kit

This combo deal includes everything you need to have it installed by either yourself or a professional:

• 1 x 6.2Kva Conderenergy Inverter
• 1 x 5.09kw SVolt
• 10 x 2.3m Rails
• 10 x LVTOPSUN 450w Solar panels
• 30meter x 6mm Red solar cable
• 30meter x 6mm Black Solar cable
• 16 x solar panel roof hooks / corrugated roof bolts (please specify when placing your order)
• 16 x PV Mid Lock
• 9 x PV End Lock
• 1 x Combiner box 1in 1out
• 2 x Battery Cables
• 1 x latch fuse holder
• 2 x 125A Battery fuse

A little more detail regarding this combo....

Hybrid Inverter 6.2 KVA 6200-Watt MPPT 48V- Conderenergy S-2155

Description

• Compatible with mains voltage and can charge batteries.
•  Auto restart while AC is recovering.
•  Overload and short circuit protection
•  Smart battery charger design for optimized battery performance
•  Cold start function
• Pure sine wave inverter
• Built-in solar charge controller
• MPPT
• Operating Temperature Range: -10-50'C

PV INPUT:

• Normal operating voltage:240Vdc Vmax PV:500Vdc
• PV input voltage range:90-450Vdc Imax PV:27A
• Full load MPPT range: 240-450Vdc Rated Power 6500W.
• Maximum Solar Charging Current: 120A

GRID/AC OUTPUT:

• Normal Output Voltage:220/230/240Vac
• Feed-in Grid Voltage Range: 195-253Vac
• Feed-in Grid Frequency Range: 49-51+1Hz
• Normal Output Current: 27A
• Power Factor Range: >0.99
• Maximum Conversion Efficiency (DC/AC) :97%
• Normal Operating Frequency: 50/60Hz

TWO LOAD OUTPUT POWER:

• Full Load:6200W
• Maximum Main load:6200W Maximum Second load:2066W
• Main load cut off voltage: 44Vdc.
• Main load return voltage:54Vdc AC INPUT:
• Normal operating voltage:230Vac
• Maximum input current:40A
• Normal operating frequency:50/60Hz
• Surge power:12400VA
• Maximum AC charging current: 100A.

SVOLT 48V 106Ah 5.09 kWh A-Grade Wall Mount Lithium Battery

The SVolt 51.2V 106Ah A-Grade Lithium Battery is manufactured by a world-leading manufacturer SVolt which is joined with the Haval Motor Group which we all know are extremely recognized for their vehicles, using A-Grade Battery cells. This allows superior performance, capacity, and reliability. Using state of high power A-Grade cell technology, the Lithium Battery is designed for environmentally sensitive areas and is committed to recycling.

The SVolt 48V 106Ah A-Grade Lithium Battery is widely used in industrial, residential, commercial, and private applications. The maintenance-free construction and advanced design features make the Lithium Battery the definitive choice for a wide variety of markets - Like solar and renewable energy storage for electric vehicles, industrial equipment, medical equipment, telecommunications, TVs, and UPS systems.

Specifications

• Energy:5.09kWh
• Installation Type: Wall Mounted
• Battery type-Chemistry: LiFePO4
• Nominal Voltage:48V
• Nominal Capacity :106Ah
• Energy Density:5427 KWh
• Dimensions(LxWxH) :688 x 447 x 211mm
• Weight (Approx.):49.5KGS
• Terminal Type: M6
• Terminal Torque:8.5NM
• Case Material: SPCC
• BMS build-in: Yes
• Internal Resistance:<30mO
• Efficiency - round trip:99%
• Self Discharge per Month:<3%
• Max parallel connectors:16Pcs
• Series connections:Not Allowed
• Cycle life (0.2C, 25C@80% DOD) Discharge Temperature:6000 Cycles
• Charge Temperature :20 C to 65
• Storage Temperature :0C to 50 C
• Bluetooth(App) :Optional
• LCD Screen: Optional
• Heating Function: Optional
• Voltage Window: Optional
• Recommend Charge Voltage:43.2V-58.4V
• Max Charge Voltage:57.60.20V
• Recommend Charge current:58.40.20V
• Max Discharging Voltage:43.20.20V
• Max Continuous Discharge Current :100A
• Peak Discharge Current:150A

LVTOPSUN High Efficiency 450w+ Solar Panel Photovoltaic Module Mono Cell

• Brand:  LVTOPSUN
• Model Number: LVTS-120M(182)
• Type: MONO
• Certificate: CE TUV ISO CQC CNAS
• Cell Efficiency: 21.3%
• Solar cell: MONO 182182mm
• Supply Ability: 100000000 Watt/Watts per Year

Solar Panel AC Installation & Mounting Kit:

This kit is compiled according to the number of solar panels supplied in this combo. Additional PV cable might be needed depending on the distance between the solar panels & the inverter.

Kit includes:

• 10 x 2.3m Rails
• 30meter x 6mm Red solar cable
• 30meter x 6mm Black Solar cable
• 16 x solar panel roof hooks / corrugated roof bolts (please specify when placing your order)
• 16 x PV Mid Lock
• 9 x PV End Lock
• 1 x Combiner box 1in 1out
• 2 x Battery Cables
• 1 x latch fuse holder
• 2 x 125A Battery fuse

Warranties: All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC, and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at the void.
