Conderenergy 6.2kva Inverter & 5.1kw Conderenergy Lithium battery with 450w solar panels & instal...

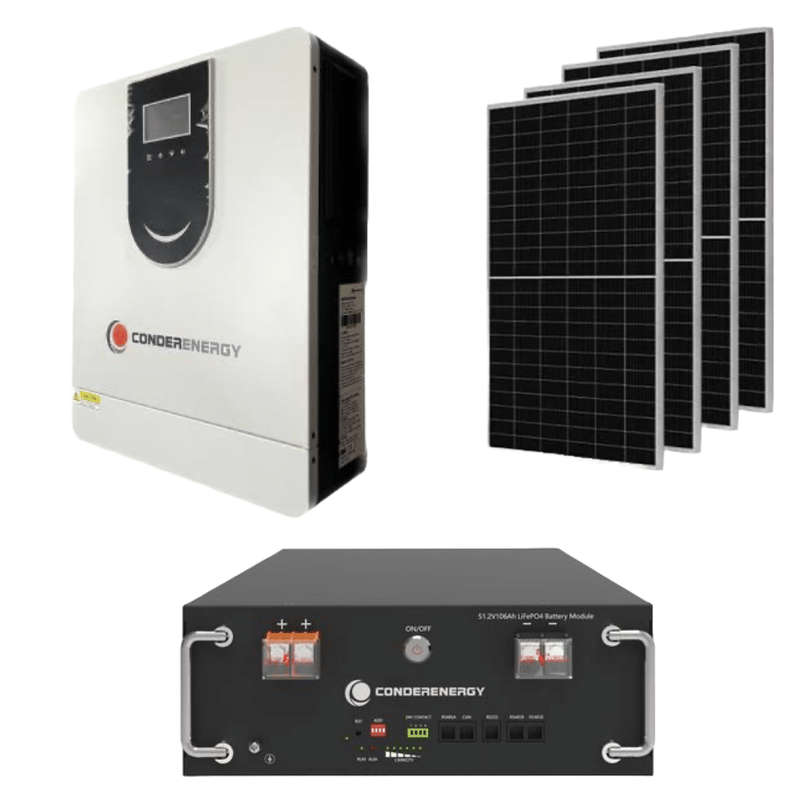

Conderenergy 6.2kva Inverter & 5.1kw Conderenergy Lithium battery with 450w solar panels & installation kit

This combo deal includes everything you need to have it installed by either yourself or a professional:

• 1 x 6.2Kva Conderenergy Inverter
• 1 x 5.09kw SVolt
• 4 x 2.3m Rails
• 4 x LVTOPSUN 450w Solar panels
• 10meter x 6mm Red solar cable
• 10meter x 6mm Black Solar cable
• 6 x solar panel roof hooks / corrugated roof bolts (please specify when placing your order)
• 6 x PV Mid Lock
• 6 x PV End Lock
• 1 x Combiner box 1in 1out
• 2 x Battery Cables
• 1 x latch fuse holder
• 2 x 125A Battery fuse

A little more detail regarding this combo....

Hybrid Inverter 6.2 KVA 6200-Watt MPPT 48V- Conderenergy S-2155

Description

• Compatible with mains voltage and can charge batteries.
•  Auto restart while AC is recovering.
•  Overload and short circuit protection
•  Smart battery charger design for optimized battery performance
•  Cold start function
• Pure sine wave inverter
• Built-in solar charge controller
• MPPT
• Operating Temperature Range: -10-50'C

PV INPUT:

• Normal operating voltage:240Vdc Vmax PV:500Vdc
• PV input voltage range:90-450Vdc Imax PV:27A
• Full load MPPT range: 240-450Vdc Rated Power 6500W.
• Maximum Solar Charging Current: 120A

GRID/AC OUTPUT:

• Normal Output Voltage:220/230/240Vac
• Feed-in Grid Voltage Range: 195-253Vac
• Feed-in Grid Frequency Range: 49-51+1Hz
• Normal Output Current: 27A
• Power Factor Range: >0.99
• Maximum Conversion Efficiency (DC/AC) :97%
• Normal Operating Frequency: 50/60Hz

TWO LOAD OUTPUT POWER:

• Full Load:6200W
• Maximum Main load:6200W Maximum Second load:2066W
• Main load cut off voltage: 44Vdc.
• Main load return voltage:54Vdc AC INPUT:
• Normal operating voltage:230Vac
• Maximum input current:40A
• Normal operating frequency:50/60Hz
• Surge power:12400VA
• Maximum AC charging current: 100A.

Conderenergy 48V 100Ah 5.12 kWh A-Grade Rack Mount Lithium Battery

High energy density (more energy with less weight and footprint).
High charge currents (short charge period).
High continual power available.
Long battery life (up to three times the battery life of a conventional battery).
High efficiency between charging and discharging.

Specifications:

• Model: CNN5000
• Parallel communication: Maximum support for 16 sets in parallel.
• Product Spec
• Product Tvpe: CNN5000 LFP51.2V 100AMP
• Rated Voltage: 51.2VDC
• Nominal Capacity: 100Ah/5120Wh
• Max Charge Voltage: 57.6VDC
• Max Charge Current: 50A
• Max Discharge Current: 50A
• Charging Temp. Range: O to +45C
• Discharging Temp. Range: -20 to +60C
• Charge Mode:CC57.6VDC/CV 57VDC 0.02C

LVTOPSUN High Efficiency 450w+ Solar Panel Photovoltaic Module Mono Cell

• Brand:  LVTOPSUN
• Model Number: LVTS-120M(182)
• Type: MONO
• Certificate: CE TUV ISO CQC CNAS
• Cell Efficiency: 21.3%
• Solar cell: MONO 182182mm
• Supply Ability: 100000000 Watt/Watts per Year

Solar Panel AC Installation & Mounting Kit:

This kit is compiled according to the number of solar panels supplied in this combo. Additional PV cable might be needed depending on the distance between the solar panels & the inverter.

Kit includes:

• 4 x 2.3m Rails
• 10meter x 6mm Red solar cable
• 10meter x 6mm Black Solar cable
• 6 x solar panel roof hooks / corrugated roof bolts (please specify when placing your order)
• 6 x PV Mid Lock
• 6 x PV End Lock
• 1 x Combiner box 1in 1out
• 2 x Battery Cables
• 1 x latch fuse holder
• 2 x 125A Battery fuse

Warranties: All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC, and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at the void.
