Introduction

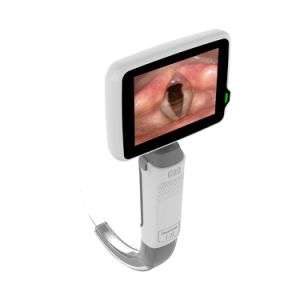

CMS-GS1 is a Reusable Video Laryngoscope, It provides better visualization for diffcult Intubation, Making the difficult airway easy and quick, it is 3.5" Full Touch Color Screen,2.0 Mega Pixel Camera, 16GB Storage, Built-in Rechargeable battery, with Different disposable blades. SmartScope LV Pro Intubation success rates higher than others.
Application Range: It is widely used for Routine and difficult tracheal intubation. Could be used for doctors in Anesthesia, ICU/NICU/CCU, Operating Room, Emergency Rescue, Ambulance, ENT etc. Clinical training and teaching of tracheal intubation.
Features:
3.5" Full Touch Color Screen.
Anti fog coating on distal lens Video/Photo function.
Battery rechargeable One button Only, Fast and simple operation 360 All sight LCD, no blind spot.
Fully Portable Video endoscope laryngoscope,210g Anti-fog blade.
Can be connected to bigger monitor and computer Real-time take photo and video.
Disposable plastic S2 2,S3,S4 blade Making the difficult airway easy and quick.
Performance:
Display : Monitor: LCD Display
Resolution Ratio:640X480RGB
Ratio: 4:3 video refresh
Rata: 30FPS
Data output: Easy to establish and store files in JPEG or MP4.16GB standard can lbc up grade to 256GB.
Connect to PC by USB-Typo C cable. image output: Connect to external LCD by HDMl cable, convenient for training and presentation
Camera and imago: Resolution Ratio 2.OM Pixels Ficld Angle : 80 lllurninancez100OLUX working distance: 20mm-100mm Color temperature 5000K Color reduction grade 4
Safety: Ergonomic and durable design for long time usage
High quality material with anti shatter protection for whole unit
Disposable Blades avoid cross infection Anti- Fog Lens and Anti-Microbial
Handle Fast: Fast intubation after short time training
Fast install or remove disposable blade
Lightweight and portable High- Definition 3.5 inch anti- reflective full touch display with 640*480 resolution 2.0 Mega Pixel Camera provide 1280*720P photo and video Rotation angle for up-down 120and left-right 270
Easy: One shot button for Recording
One cable connect to PC for data management
One cable connect to large LCD for better view (option)
Full touch scree with user friendly operation
Wireless charging Cost Effective Favorable cost for all kinds of disposable blades Rechargeable battery for at least 4 hours working time
Power and Battery: Type Rechargeable
Lithium Battery Battery life Cycle: More Than 500 times AC100-240V,50/60Hz,5OVA Charging times: less than 4hrs 5w Wireless Charging (Optional) Working Condition: Temperature; -10~+45
