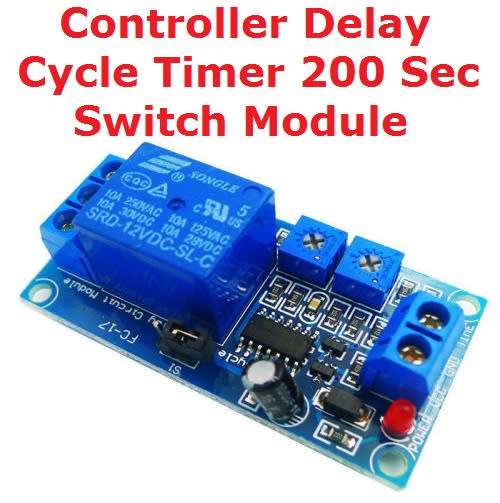

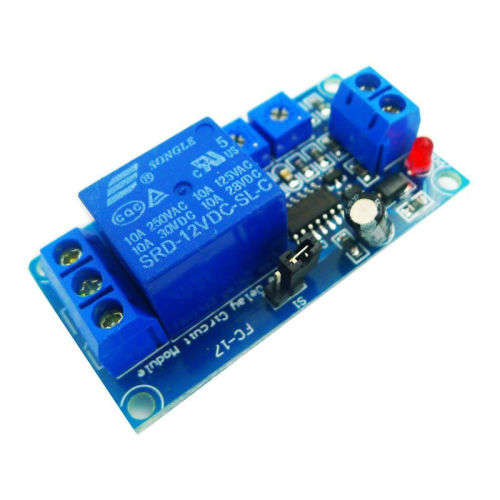

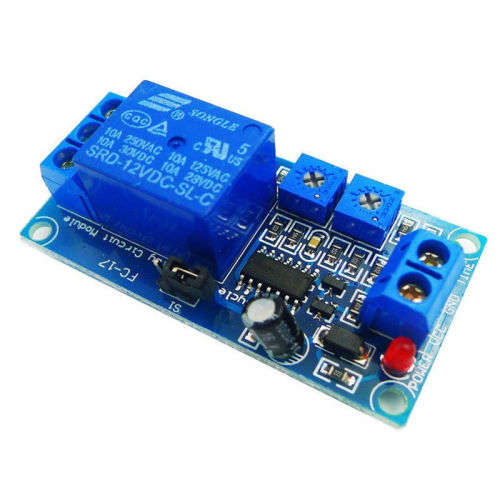

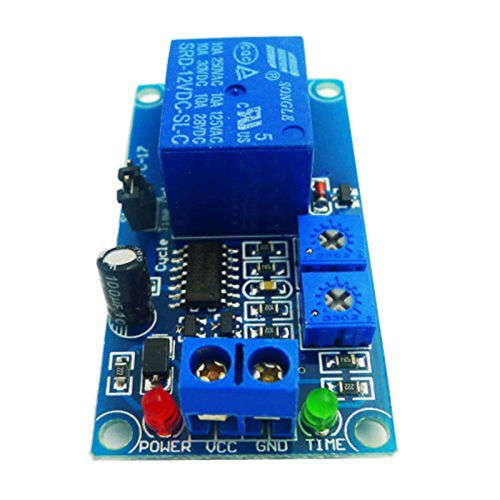

Controller Delay Cycle Timer 200 Sec Switch Module **IN STOCK**

Controller Delay Cycle Timer 200 Sec Switch Module:

Specifications:

This module is a cycle delay module, often used in the product life test, aging test automation equipment testing, PLC industrial controls, electronic development arduino robot, is extensively used

1. Using advanced quality timing chip control and accurate timing performance is far better than the 555 chip

2. Has anti-film reverse protection diode, better protection module

3. Relay is turned on and off times individually adjustable potentiometer function

4. Can be accessed by a large current load (250V ac 10 A or 30V dc 10A)

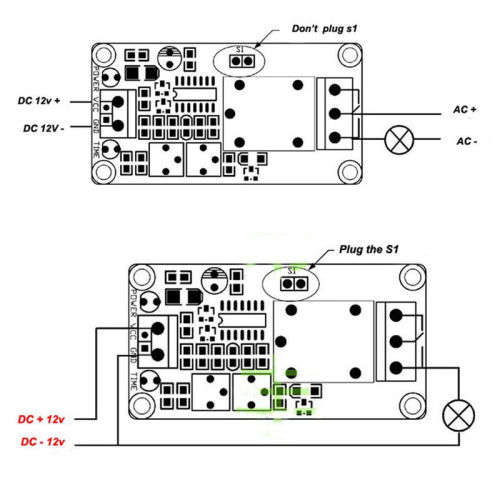

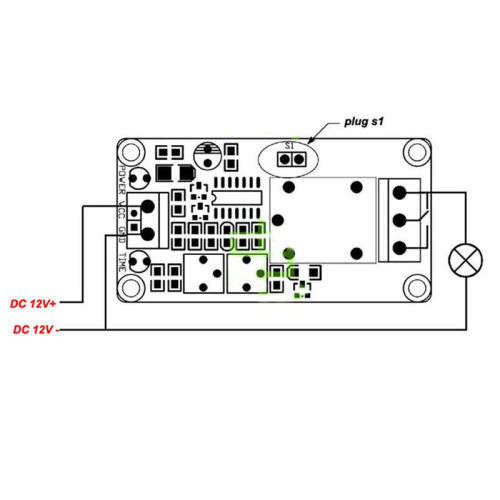

5. Output relays have normally open, normally closed selection

Features:

When the module is powered up, the relay immediately pull the pull-in time. It can be adjusted by potentiometer 1-200 seconds (or so), the relay automatically enter the end of  timing relay disconnected state off time. Can also be potentiometer adjustment 1-200 seconds (or so), the end of the off-time timing, and then into the pull-in state, followed by circulation, only power off, will stop working

Relay Load Capacity:

Input Voltage: DC12V
Quiescent Current: 12mA
Maximum Power Consumption: 48mA
250V 10A AC the ideal
30V 10A DC
Size: 5.5 x 3cm
