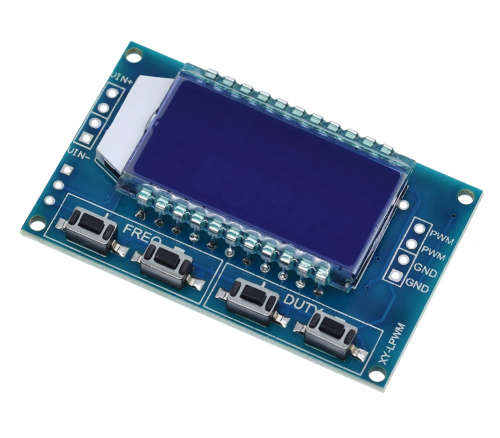

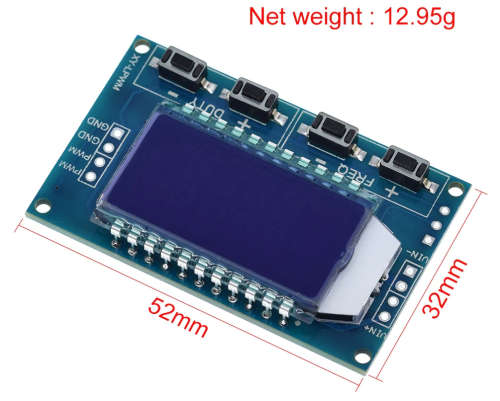

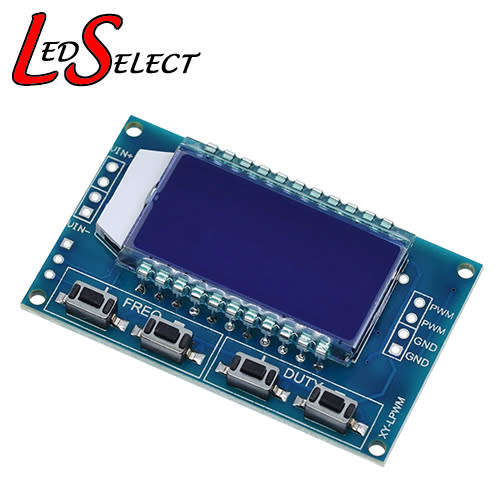

Controller Duty Cycle Frequency PWM Digital Display (1HZ-150kHZ) 3.3-30V **LOCAL STOCK**

Controller Duty Cycle Frequency PWM Digital Display (1HZ-150kHZ):

Category Code: 1500312645 / 1516312645 - Controller Motor Speed

Specifications:

Input Voltage: DC 3.3 - 30V
Frequency Range: 1 Hz - 150 KHz
Frequency Accuracy: 2%
Signal Load Capacity: 5 - 30mA
Output Amplitude: Same as input voltage
Working Temperature: -20 to 70deg

1. Setting the frequency of the PWM:
   • Command "F101": Set the frequency to 101 HZ (001 to 999)
   • Command "F1.05": set the frequency of 1.05 KHZ (1.00 ~ 9.99)
   • Command "F10.5": Set the frequency to 10.5KHZ (10.0 ~ 99.9)
   • Command "F1.0.5": set the frequency of 105KHZ (1.0.0 ~ 1.5.0)
2. Setting the PWM duty cycle:
   • DXXX": set the PWM duty cycle to XXX; (001 ~ 100)
   • Example: “D050”, sets the PWM duty cycle is 50%
3. Read the set parameter
   • Send a "read" string to read the set parameters
   • Set successfully return: DOWN
   • Setup failed to return: FALL
